Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the plastic retainers to the fender flare (2), if removed.
  2. Install the fender flare (2) to the fender (1).
  3. Install the screws (3) to the fender flare (2).

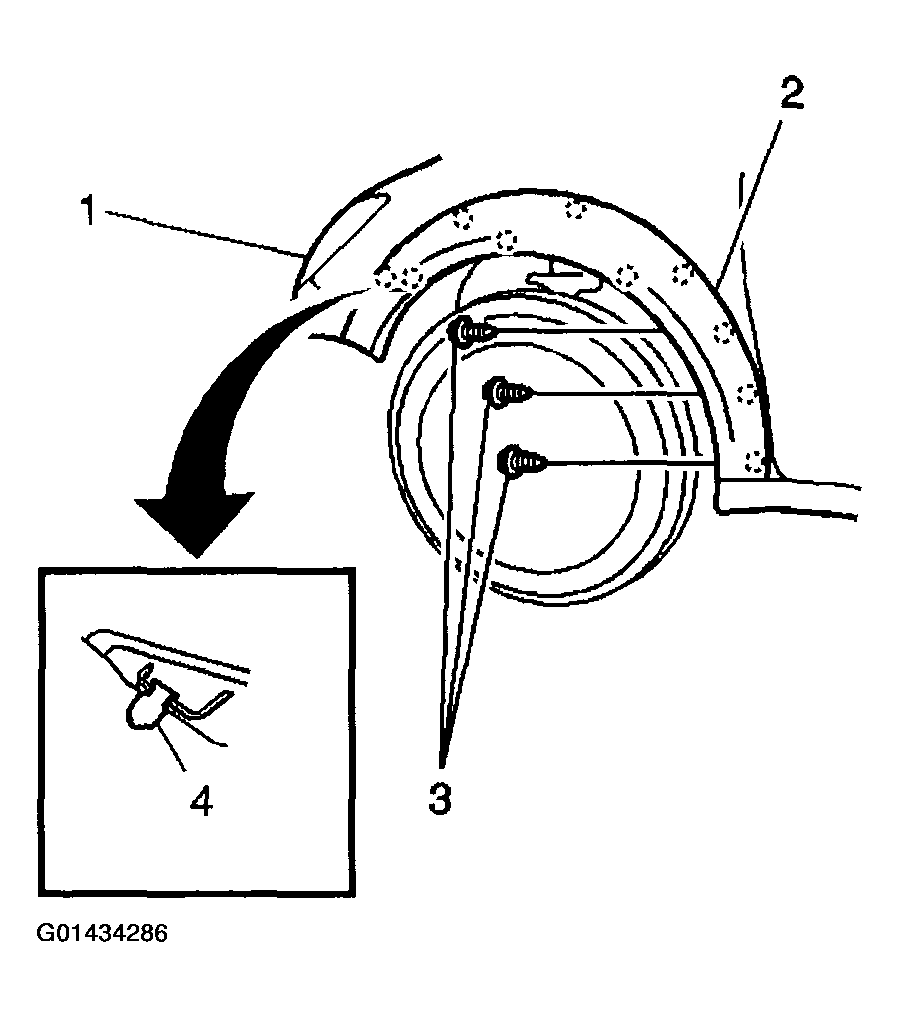

    Fig 1: Installing Plastic Retainers To Fender Flare
    G01434286Courtesy of GENERAL MOTORS CORP.
