Test Description

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

2. This step tests the resistance of the cruise control servo magnetic clutch circuit.

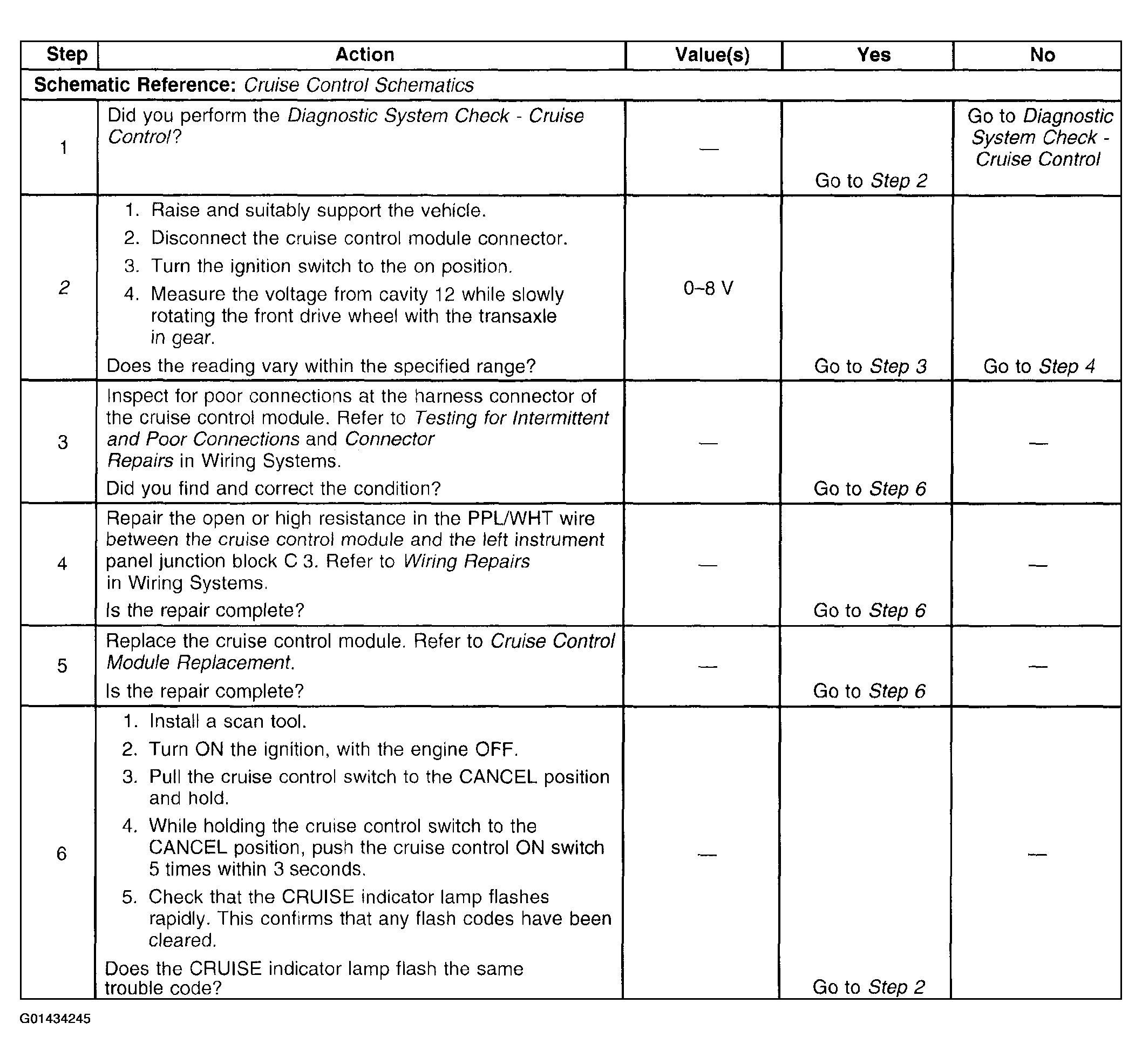

Fig 1: DTC 023 Diagnostic Specifications
G01434245Courtesy of GENERAL MOTORS CORP.
