Test Description
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

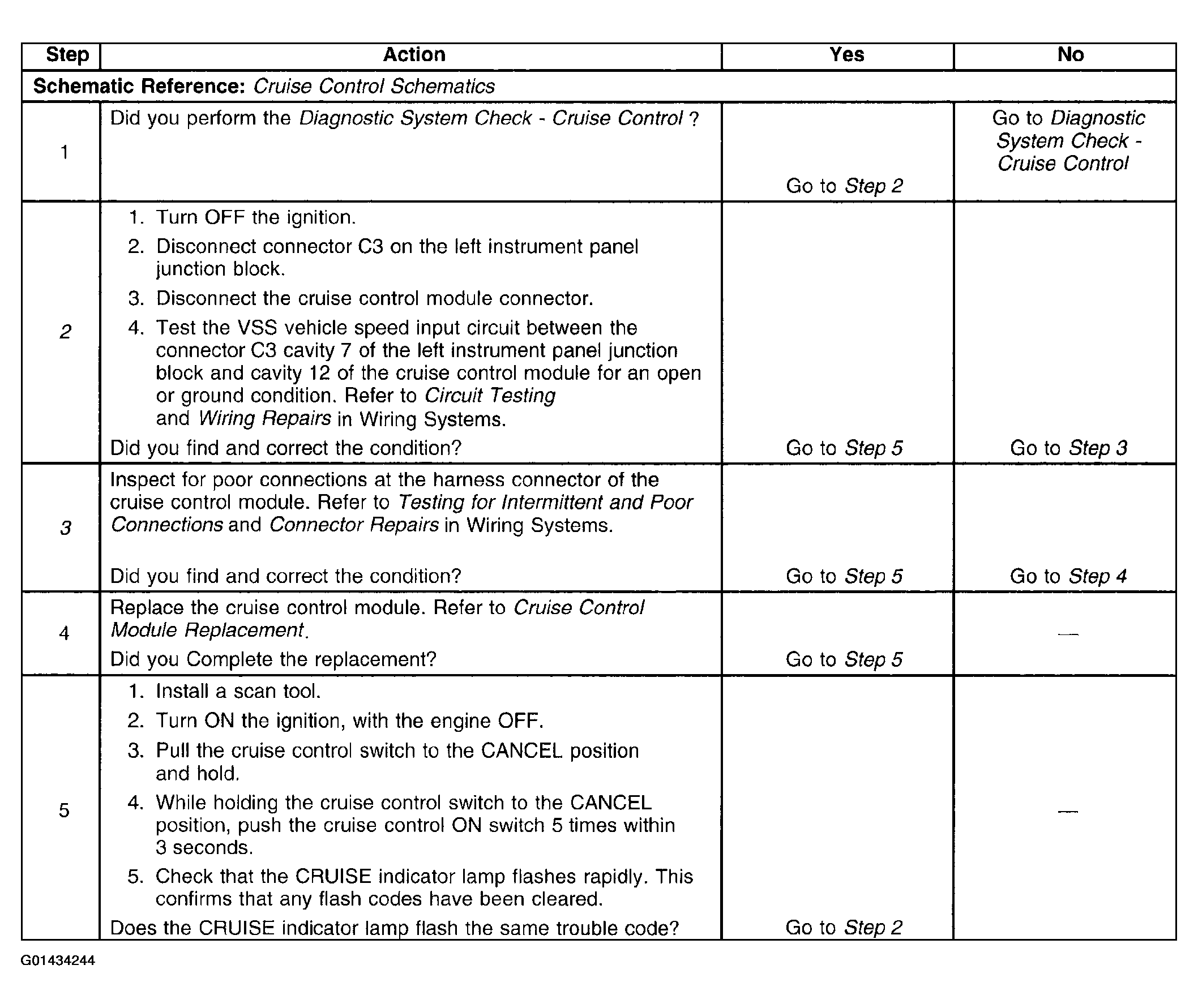

The numbers below refer to the step numbers on the diagnostic table.
2. This step tests for a short to ground or an open condition in the PPL/WHT wire which supplies VSS signal voltage to the cruise control module.
3. This step tests for a short to ground in the PPL/WHT wire which supplies VSS signal voltage from the instrument cluster assembly to junction block 3
