Test Description
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

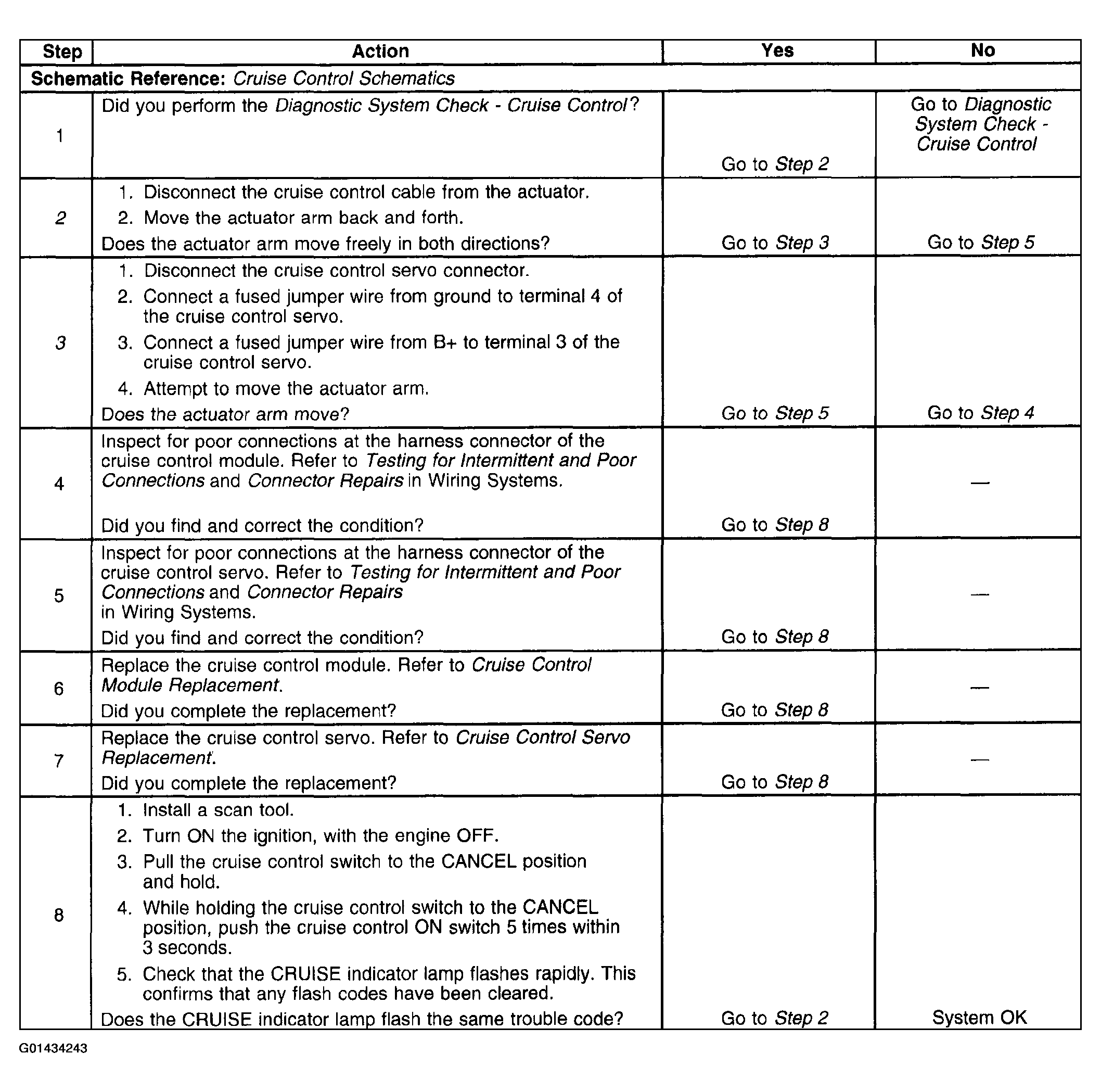

The numbers below refer to the step numbers on the diagnostic table.
2. This step tests for proper arm movement with the magnetic clutch de-energized.
3. This step tests for proper arm movement with the magnetic clutch energized.
