Test Description

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

4. This step tests to see if the servo motor has the proper resistance.

5. This step tests to see if the servo motor has the proper resistance.

8. This step tests for proper movement of the actuator arm with the magnetic clutch energized.

9. This step tests for proper movement of the actuator arm with the magnetic clutch energized.

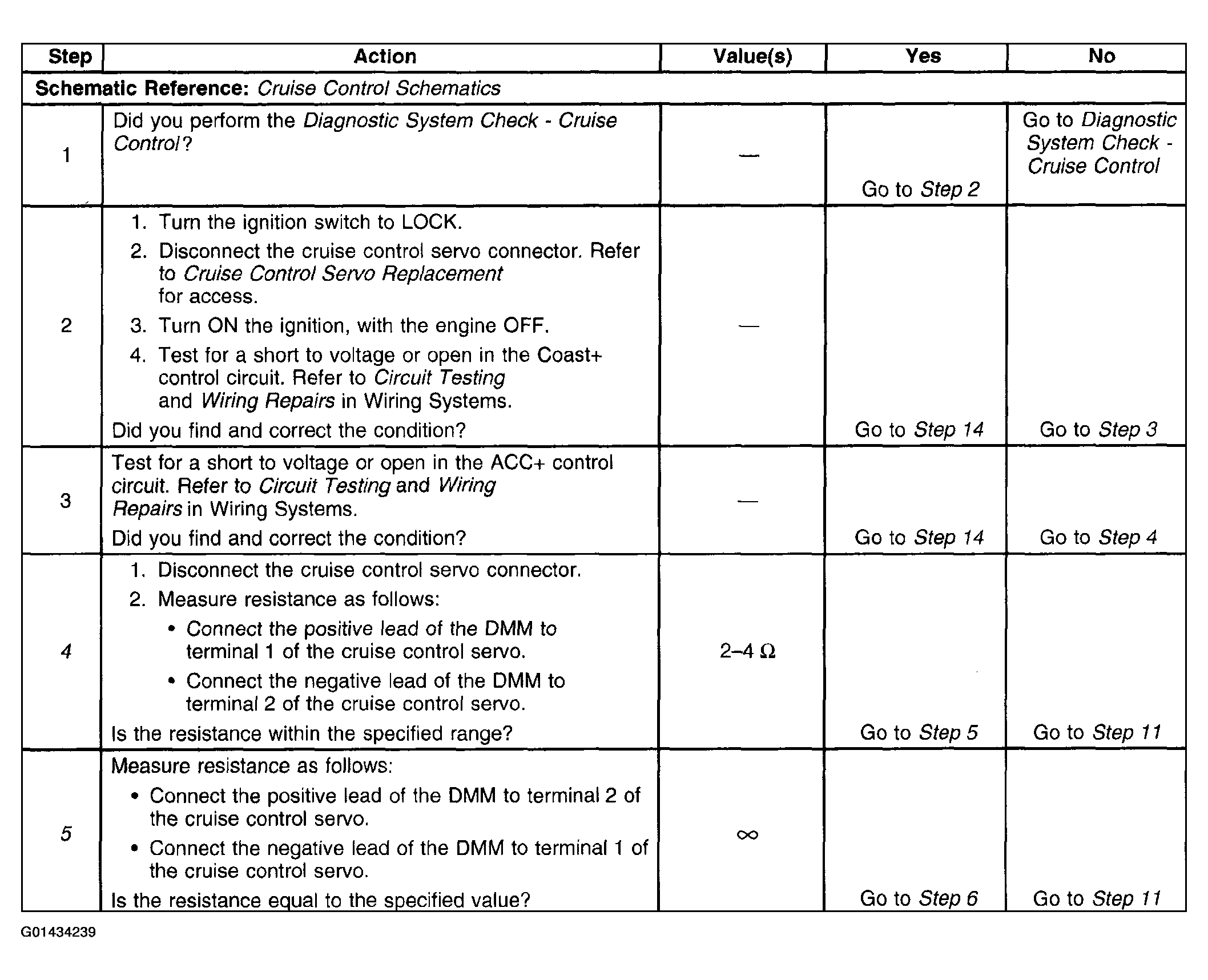

Fig 1: DTC 011 or 015 Diagnostic Specifications (1 Of 2)
G01434239Courtesy of GENERAL MOTORS CORP.

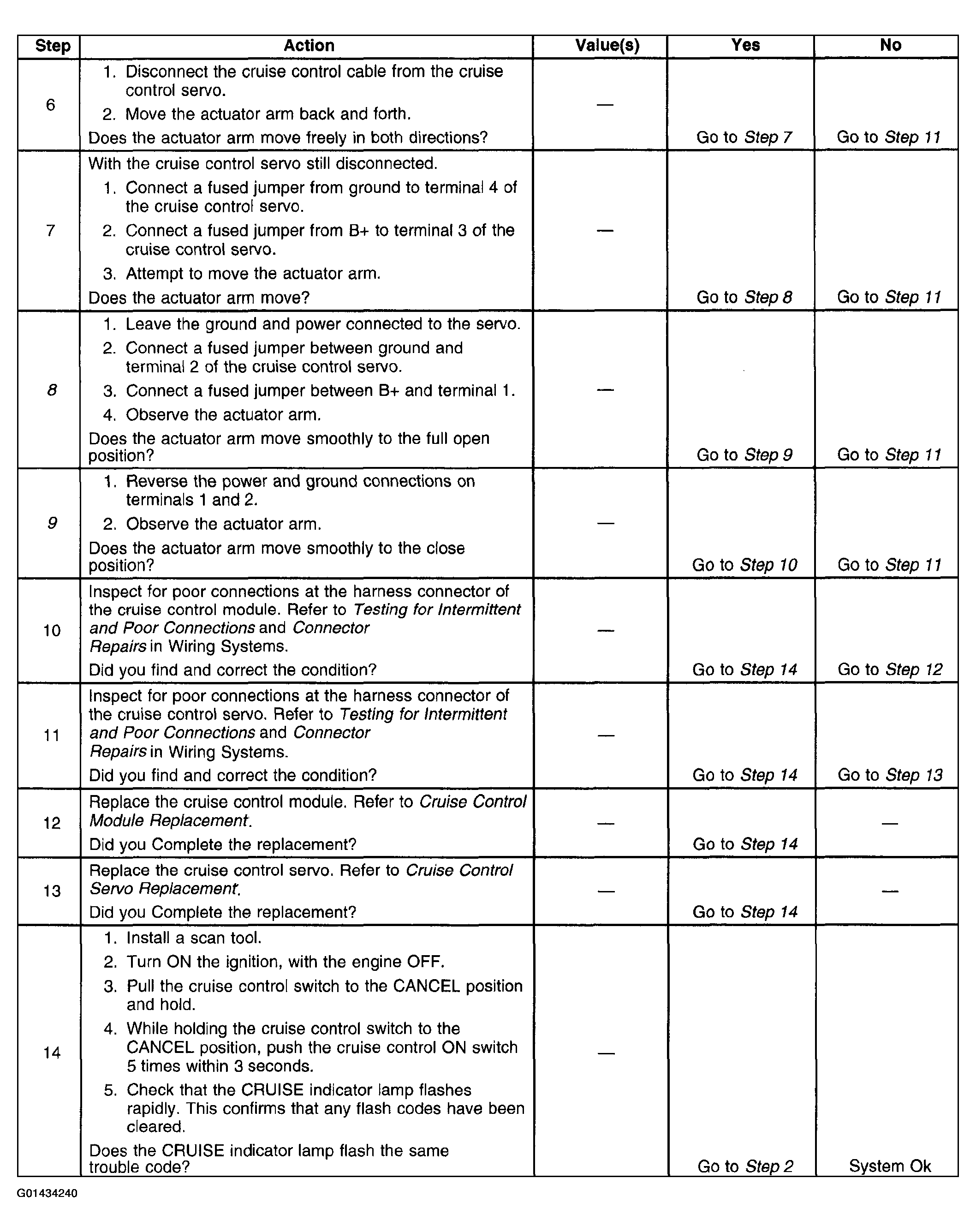

Fig 2: DTC 011 or 015 Diagnostic Specifications (2 Of 2)
G01434240Courtesy of GENERAL MOTORS CORP.
