Cruise Control Indicator Inoperative

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

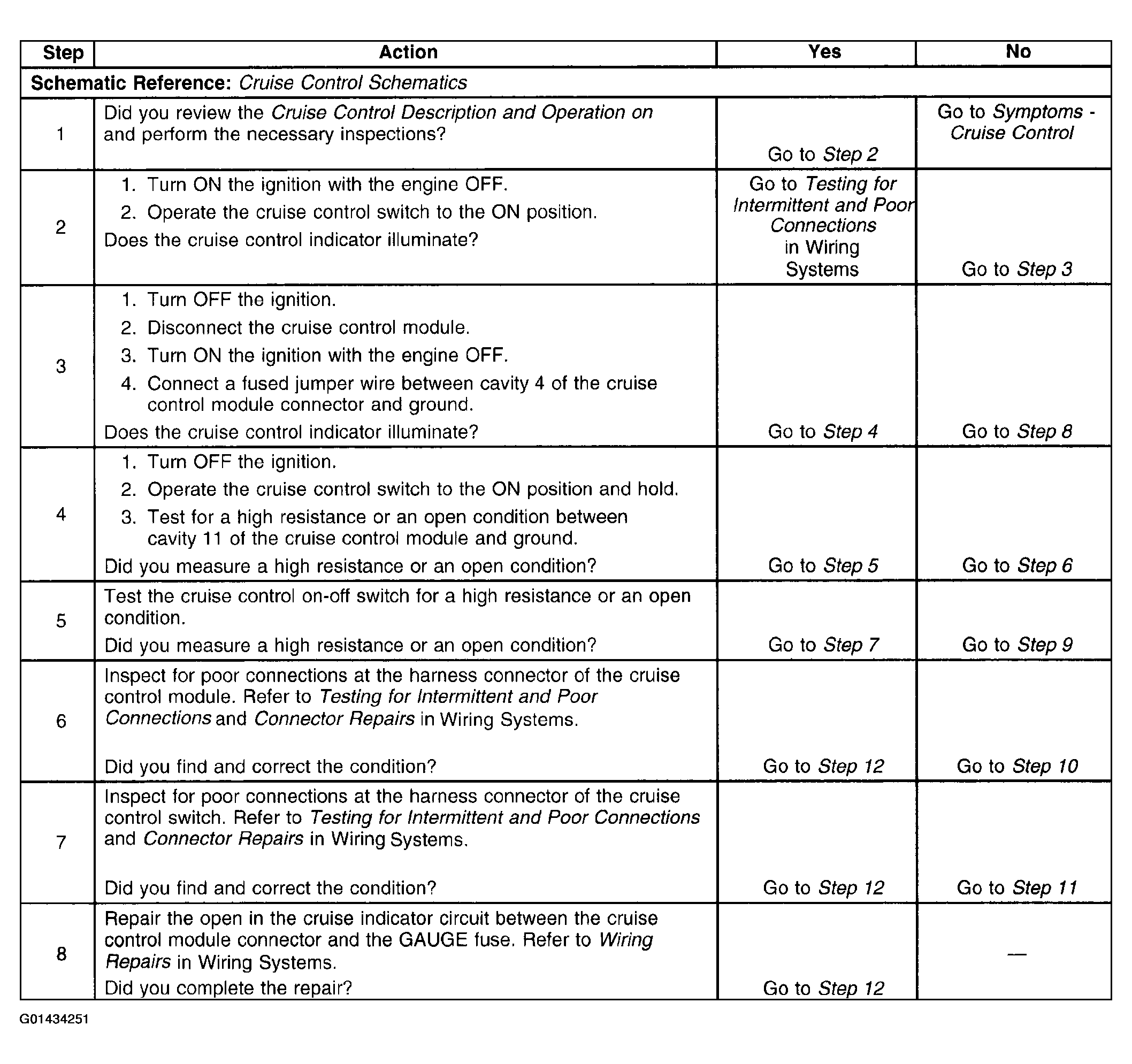

Fig 1: Cruise Control Indicator Inoperative Diagnostic Specifications (1 Of 2)
G01434251Courtesy of GENERAL MOTORS CORP.

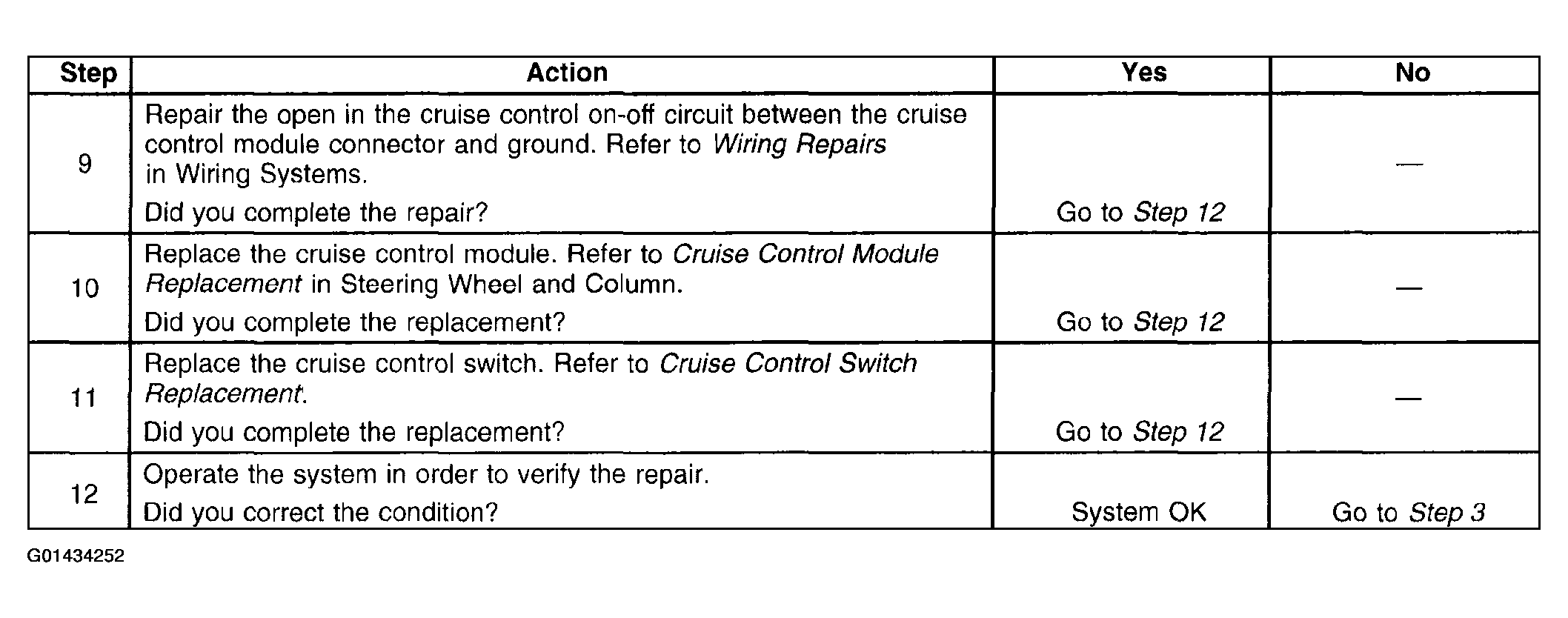

Fig 2: Cruise Control Indicator Inoperative Diagnostic Specifications (2 Of 2)
G01434252Courtesy of GENERAL MOTORS CORP.
