Park/Neutral Position (PNP) Switch Description
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

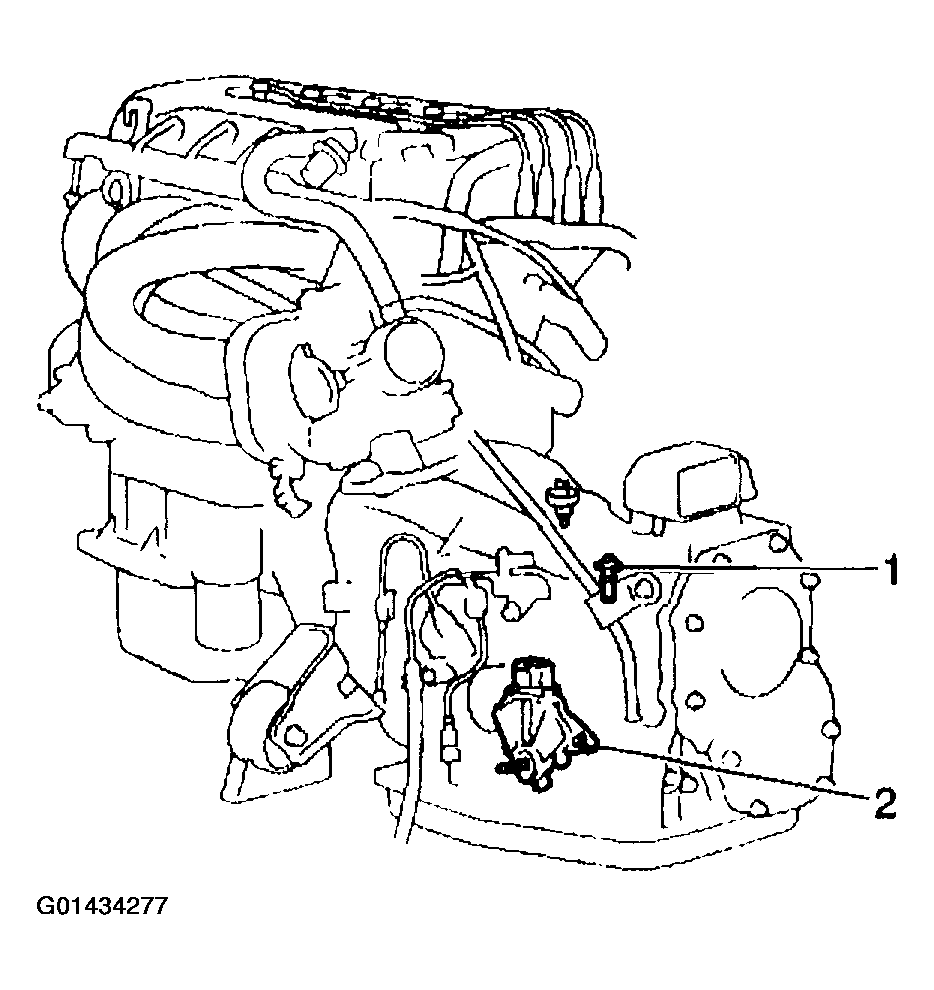

The PNP switch (2) is mounted to the transaxle. Whenever the manual selector lever is placed in either the Park (P) or Neutral (N) position, the PNP switch closes and provides a ground to the cruise control module. The cruise control module disengages cruise control system operation as soon as this ground signal is sensed. For PNP switch replacement and adjustment procedures, refer to PARK/NEUTRAL POSITION SWITCH in Automatic Transaxle - MU4, or PARK/NEUTRAL POSITION SWITCH in Automatic Transaxle - MU5.
