Content Theft Deterrent (CTD) Does Not Disarm with Key Lock

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

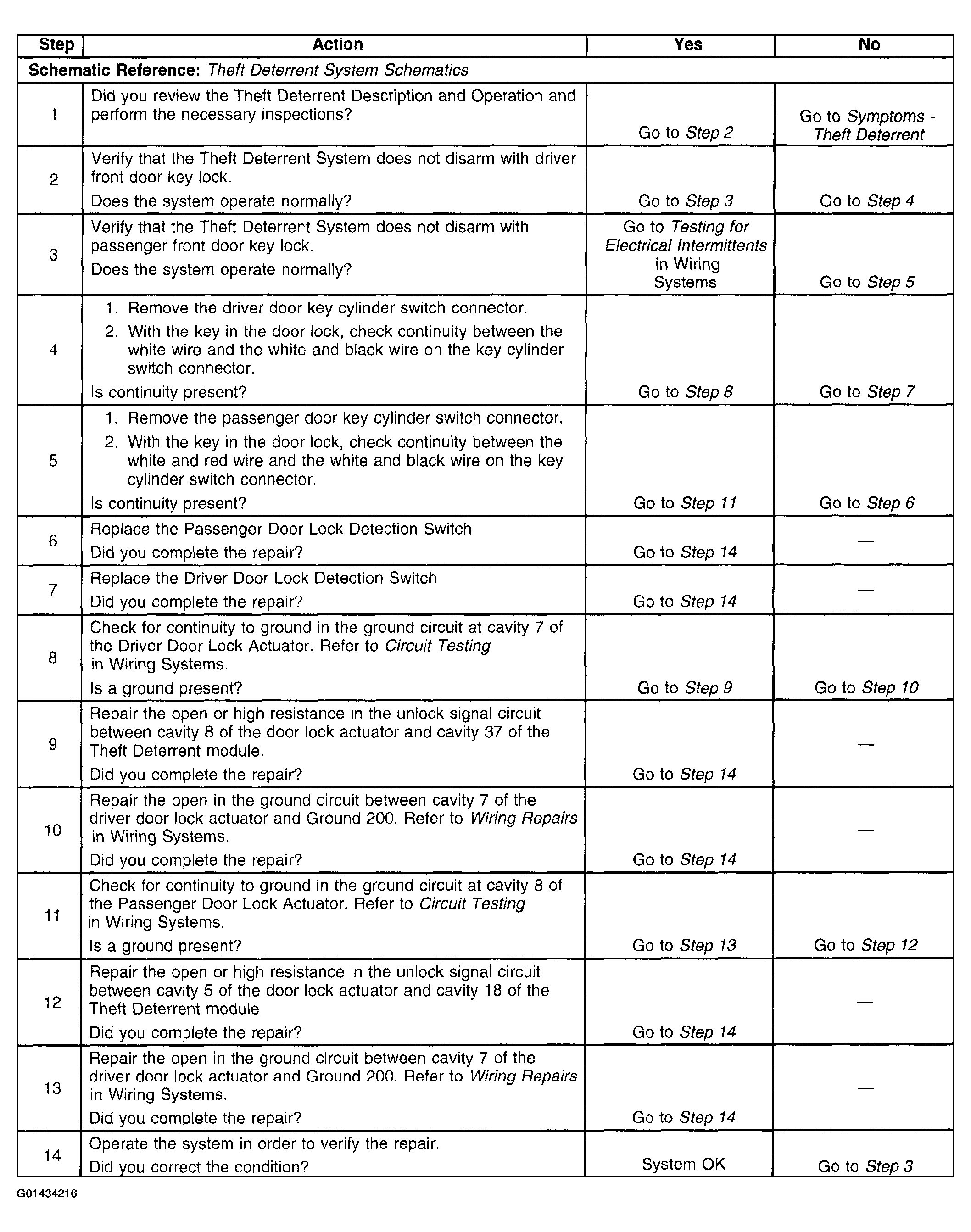

Fig 1: Diagnostic System Check Chart - Content Theft Deterrent Does Not Disarm With Key Lock
G01434216Courtesy of GENERAL MOTORS CORP.
