WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

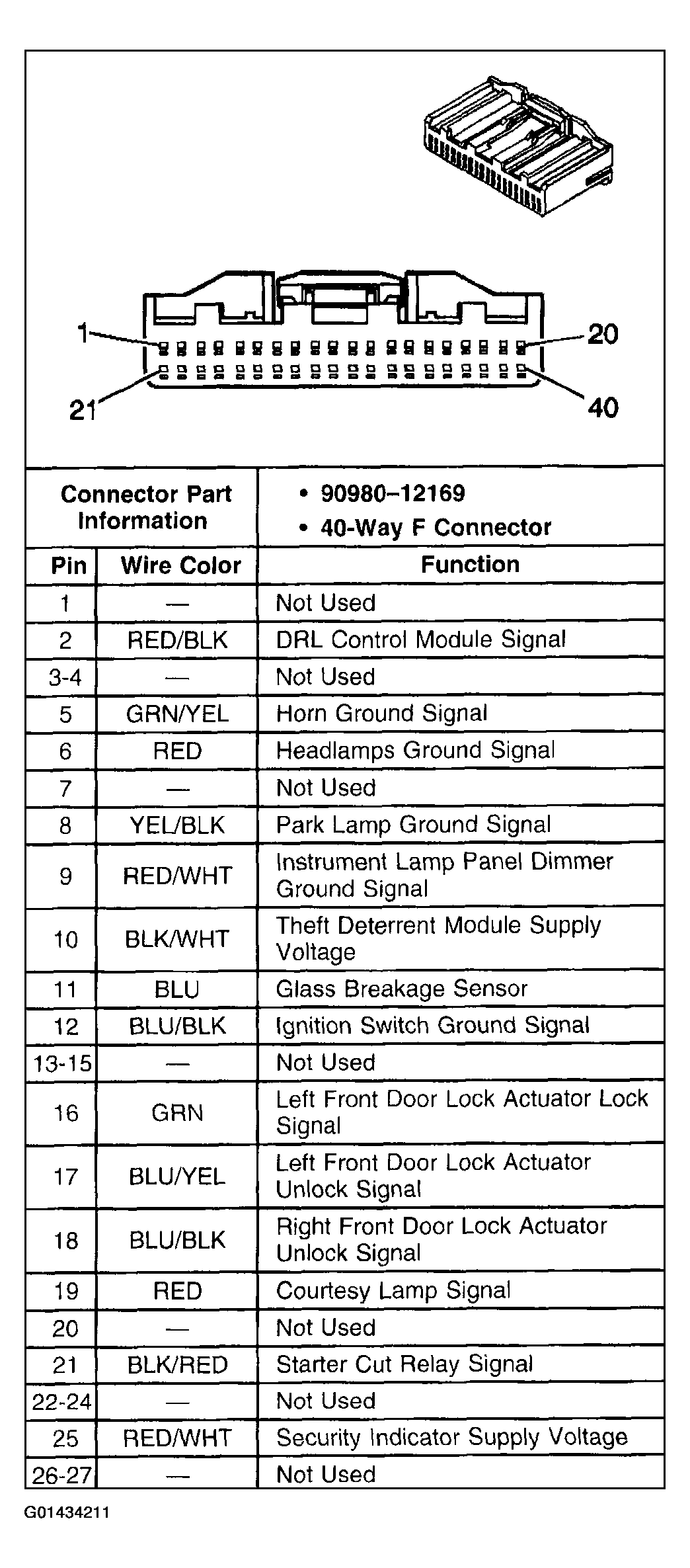

Fig 1: Identifying Anti-Theft Module Connectors And Pin Function Specifications (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

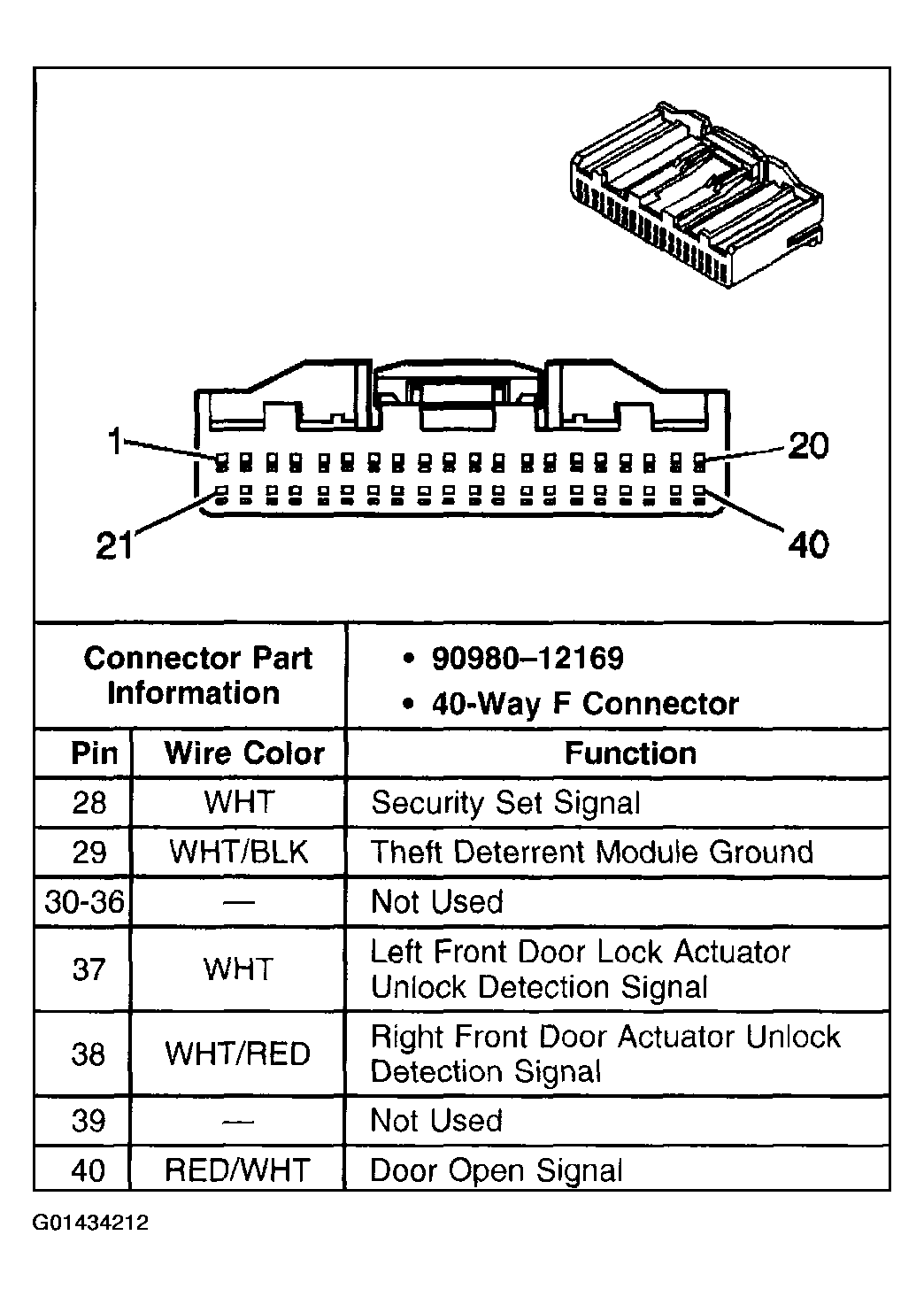

Fig 2: Identifying Anti-Theft Module Connectors And Pin Function Specifications (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

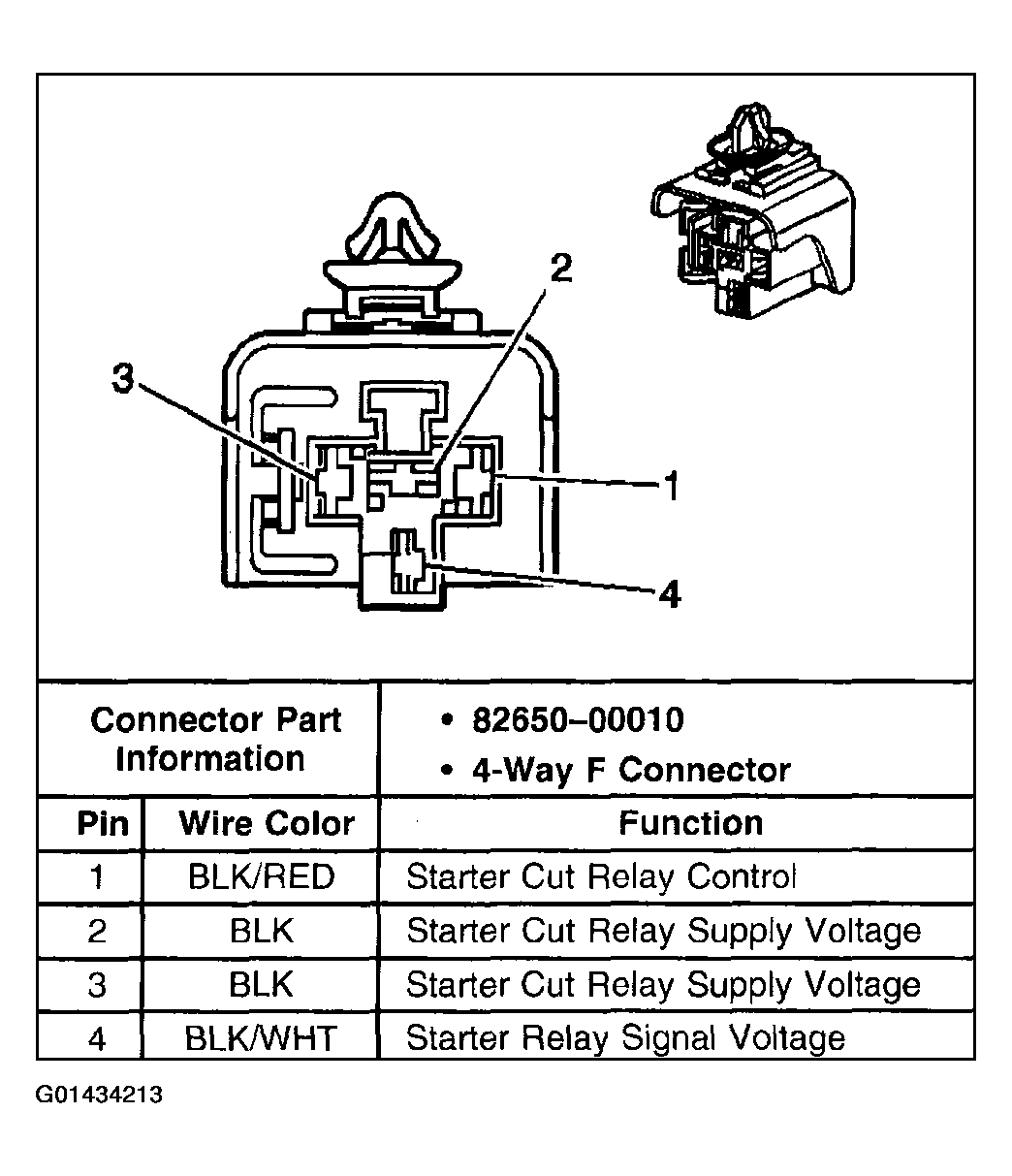

Fig 3: Identifying Starter Cut Relay Connectors And Pin Function Specifications
Courtesy of GENERAL MOTORS CORP.

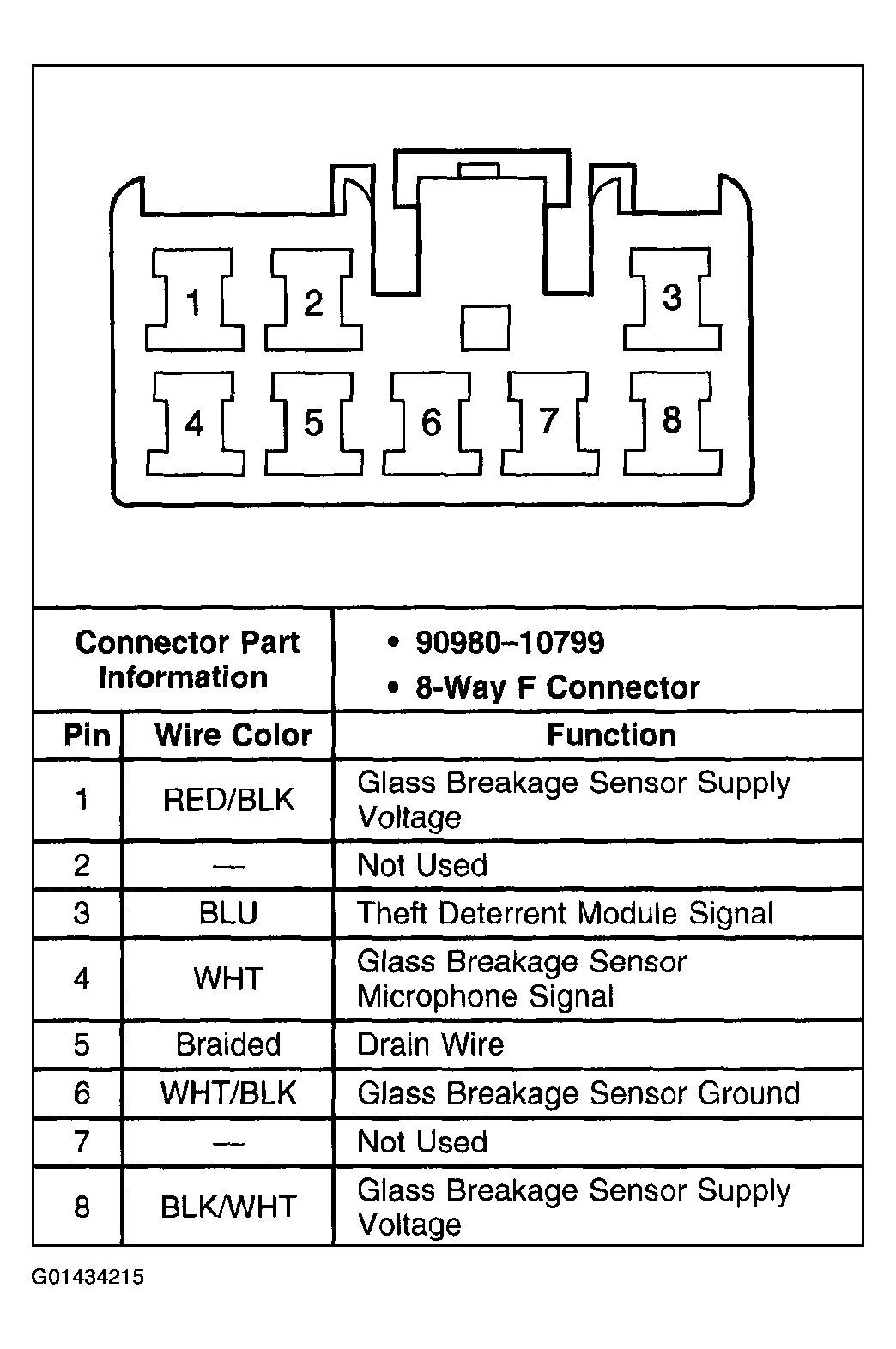

Fig 4: Identifying Security Indicator Connectors And Pin Function Specifications
Courtesy of GENERAL MOTORS CORP.

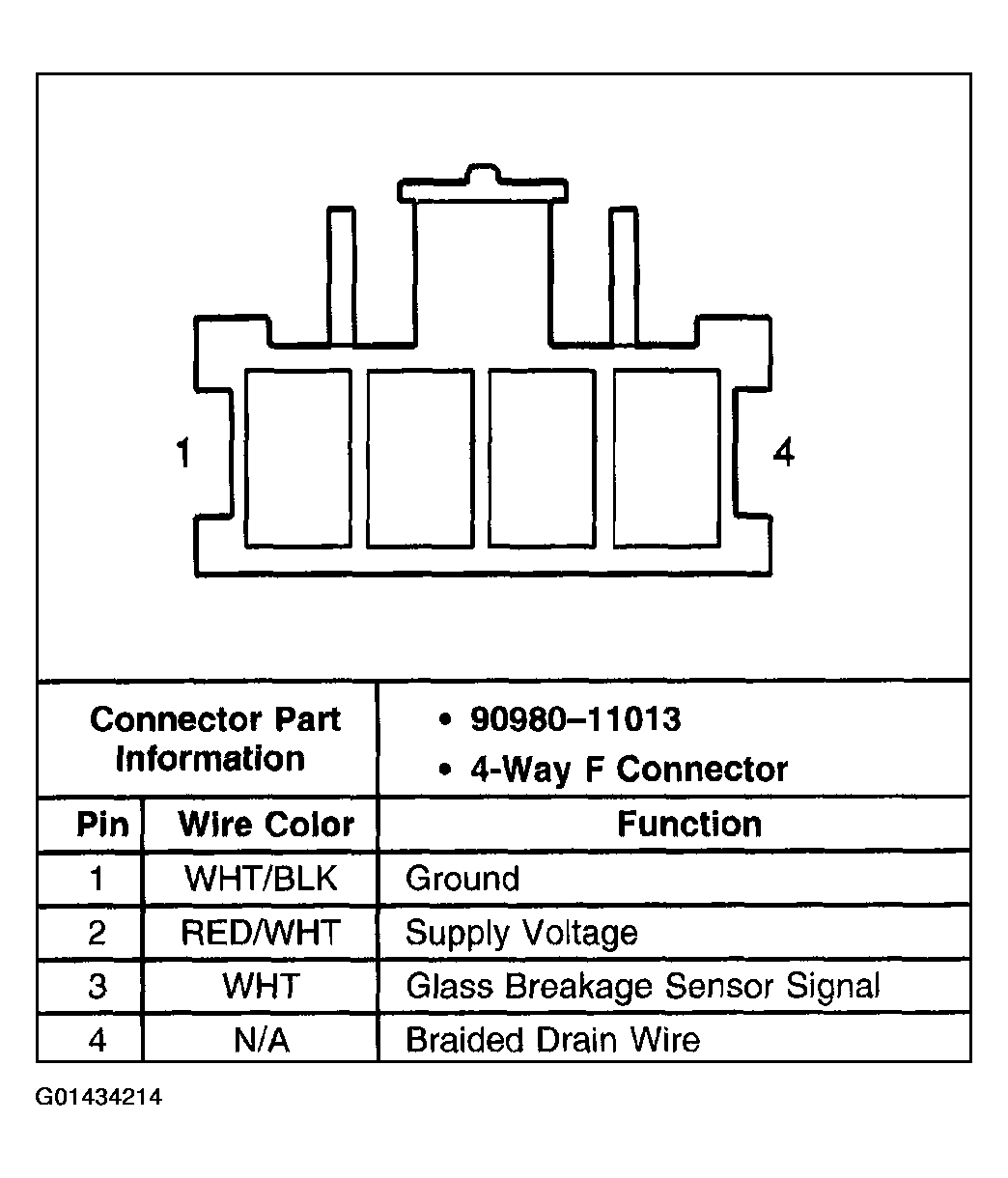

Fig 5: Identifying Glass Breakage Sensor Connectors And Pin Function Specifications
