Instrument Cluster Schematics (High Beam, Door Open Indicators and Engine Coolant Temperature (ECT) Gauge)

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

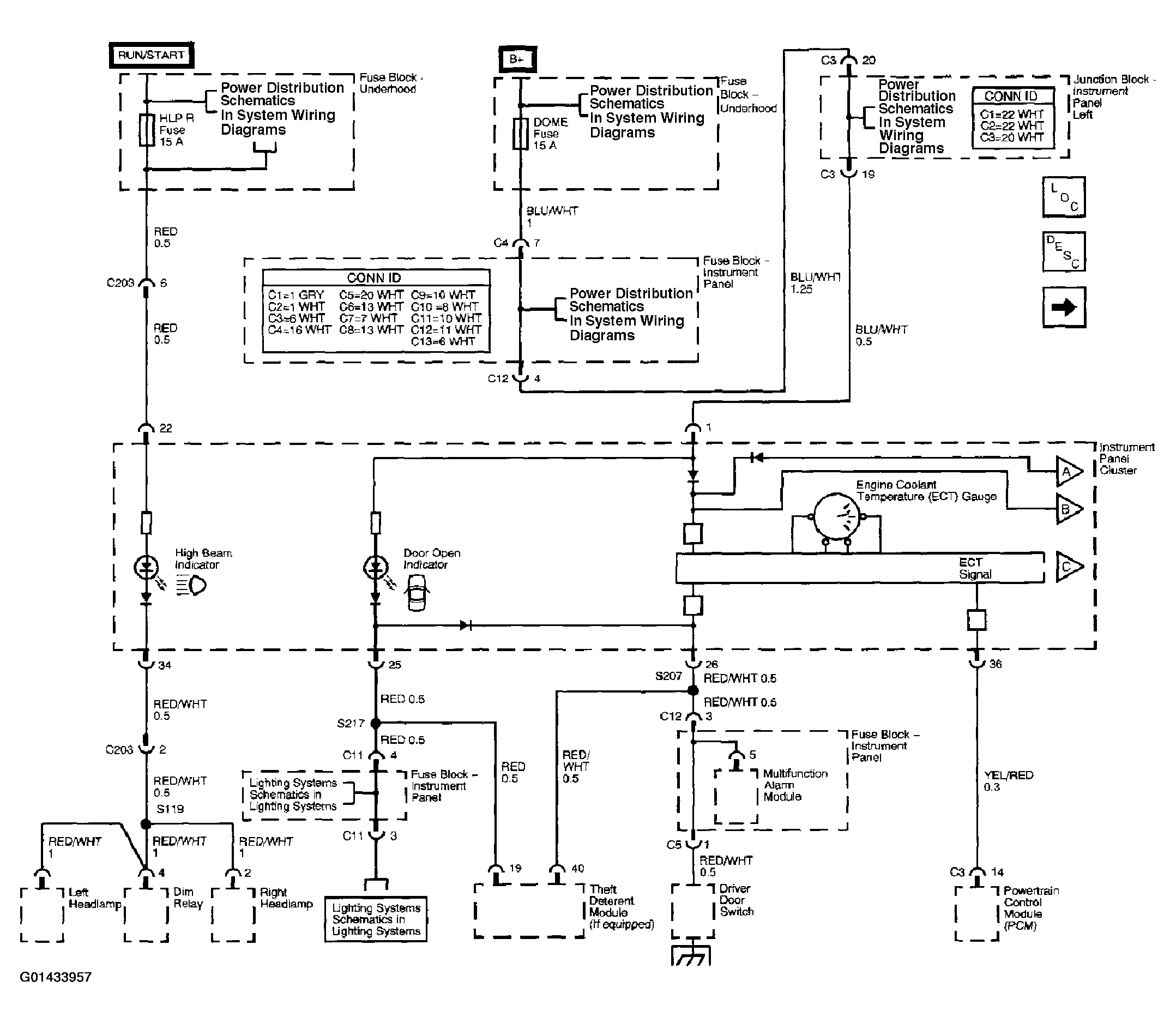

Fig 1: Instrument Cluster Schematic Diagram (High Beam, Door Open Indicators And Engine Coolant Temperature Gauge)
G01433957Courtesy of GENERAL MOTORS CORP.
