Instrument Cluster Schematics (Fuel Gauge, Seat Belt, Low Fuel Indicators and Seat Belt Buzzer)

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

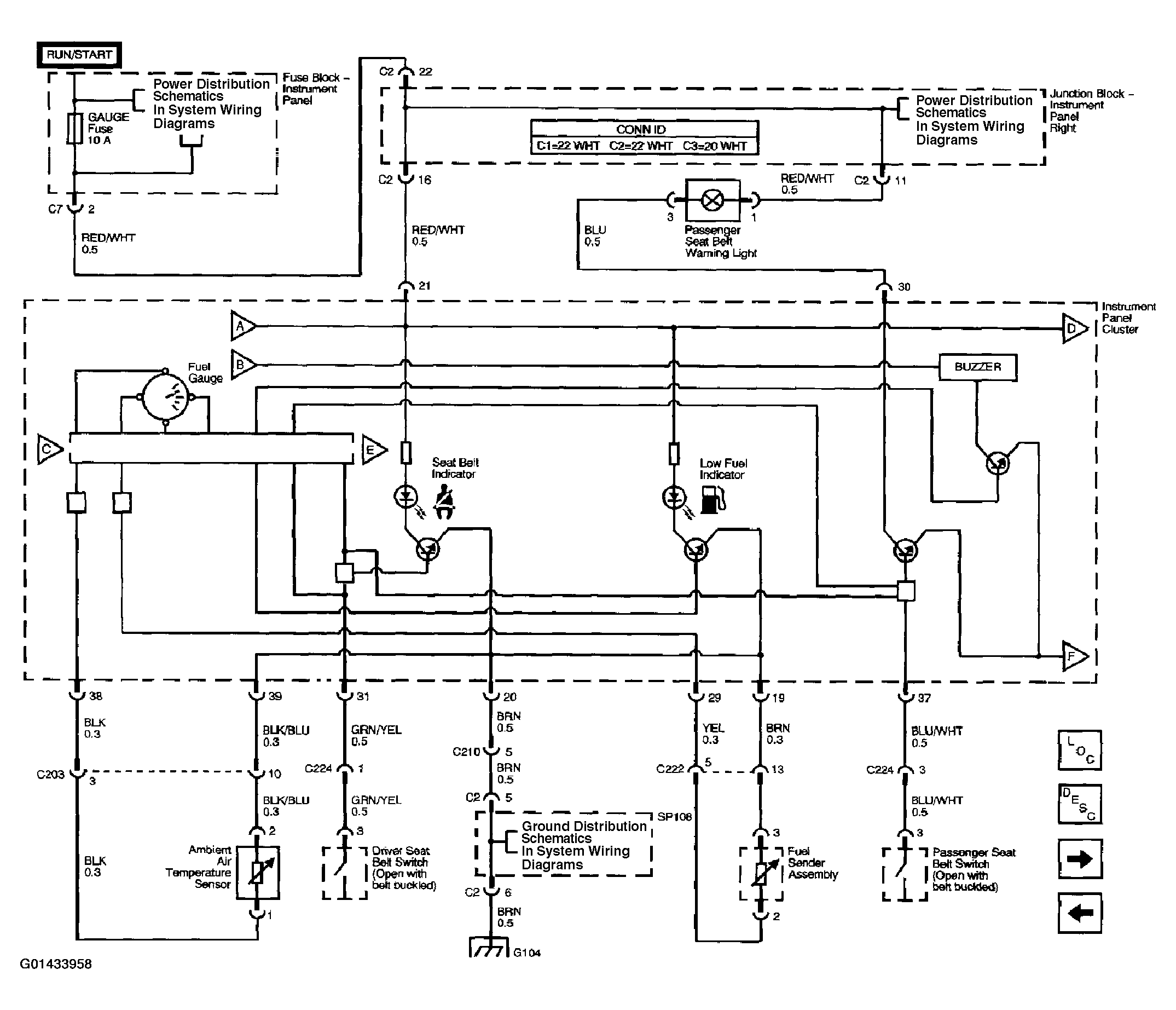

Fig 1: Instrument Cluster Schematic Diagram (Fuel Gauge, Seat Belt, Low Fuel Indicators And Seat Belt Buzzer)

Courtesy of GENERAL MOTORS CORP.

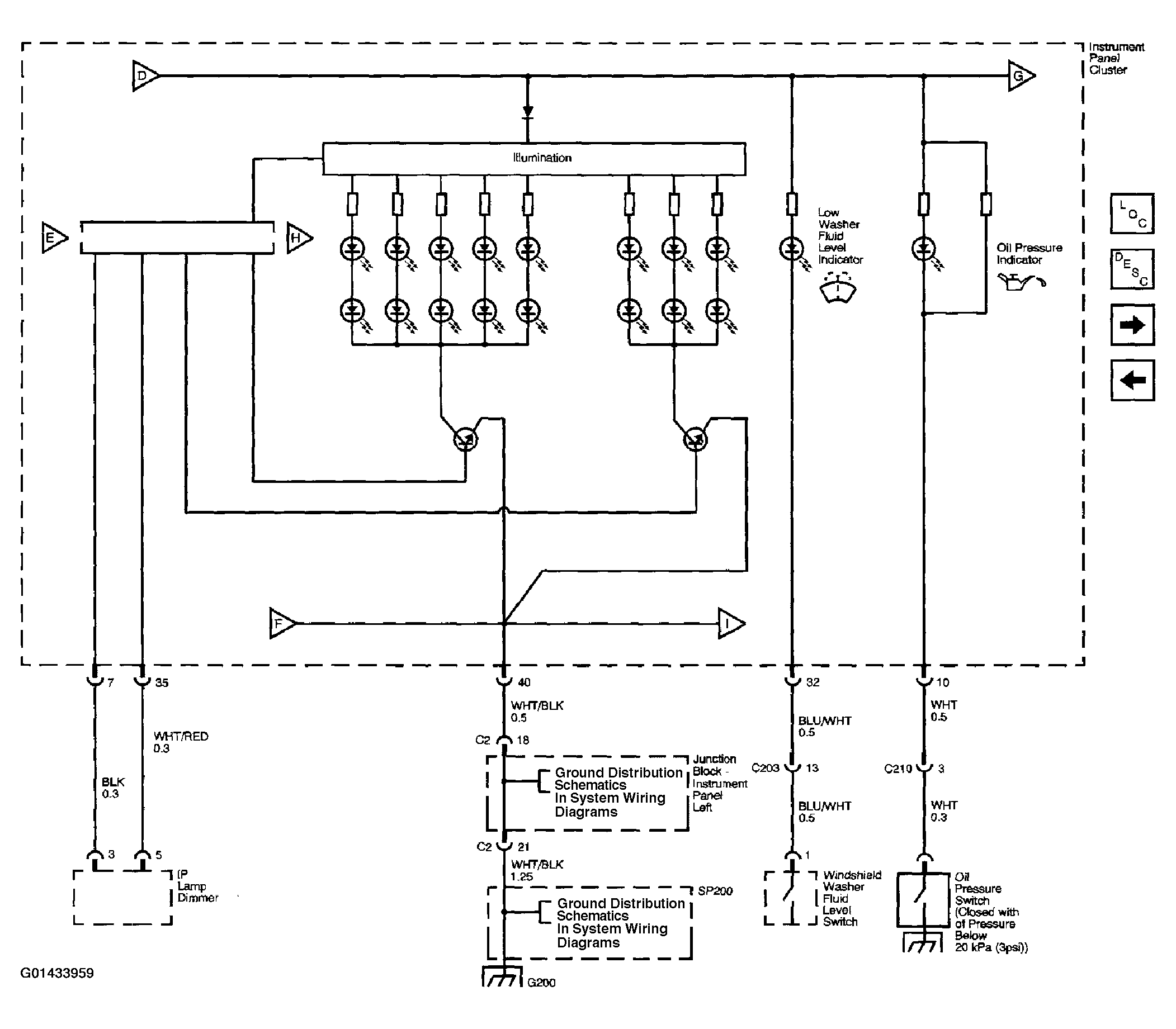

Fig 2: Instrument Cluster Schematic Diagram (IP Illumination, Low Washer Fluid, Oil Pressure Indicators)

Courtesy of GENERAL MOTORS CORP.

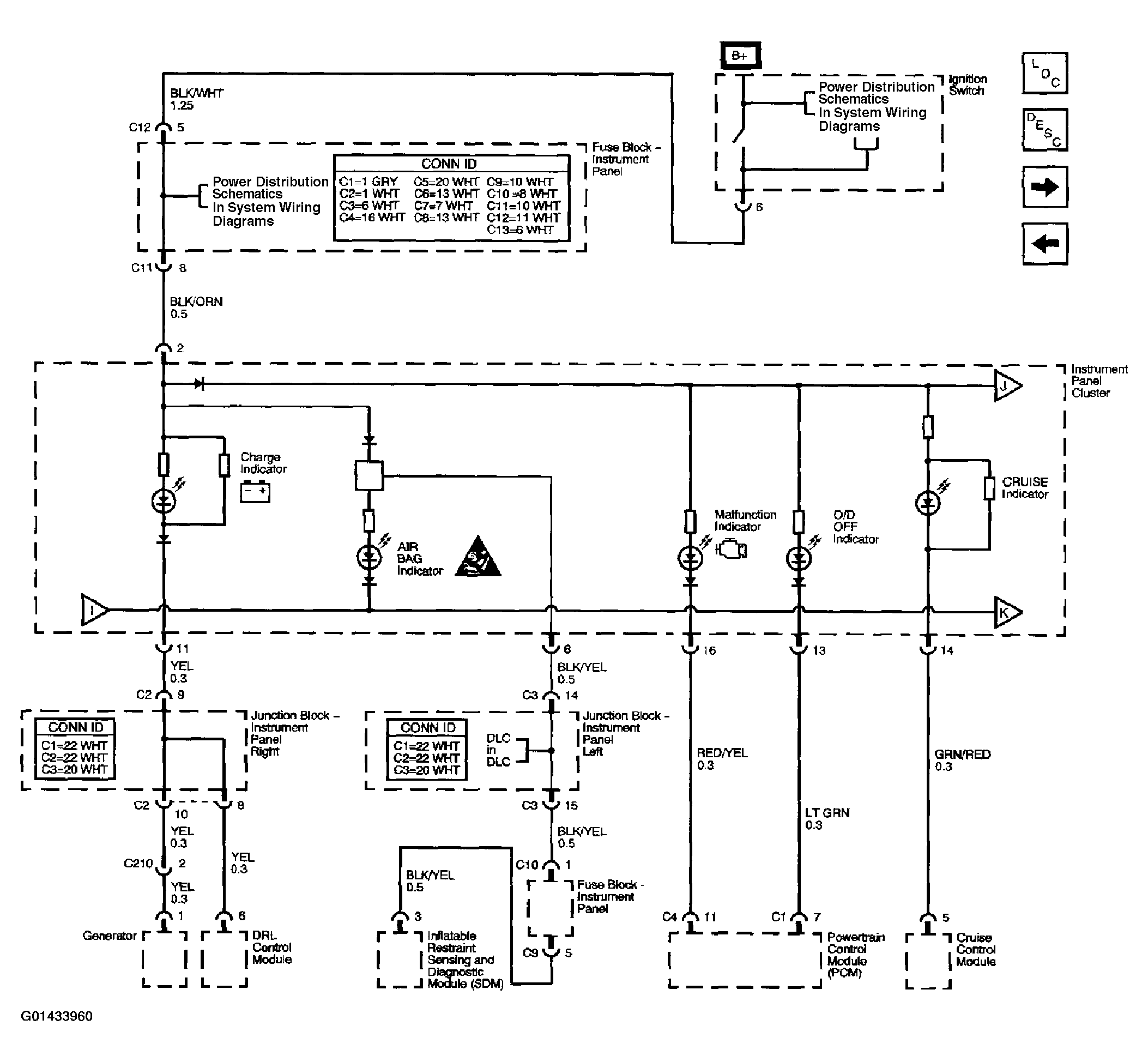

Fig 3: Instrument Cluster Schematic Diagram (Charge, Air Bag, Malfunction, O/D Off, Cruise Indicators)

Courtesy of GENERAL MOTORS CORP.

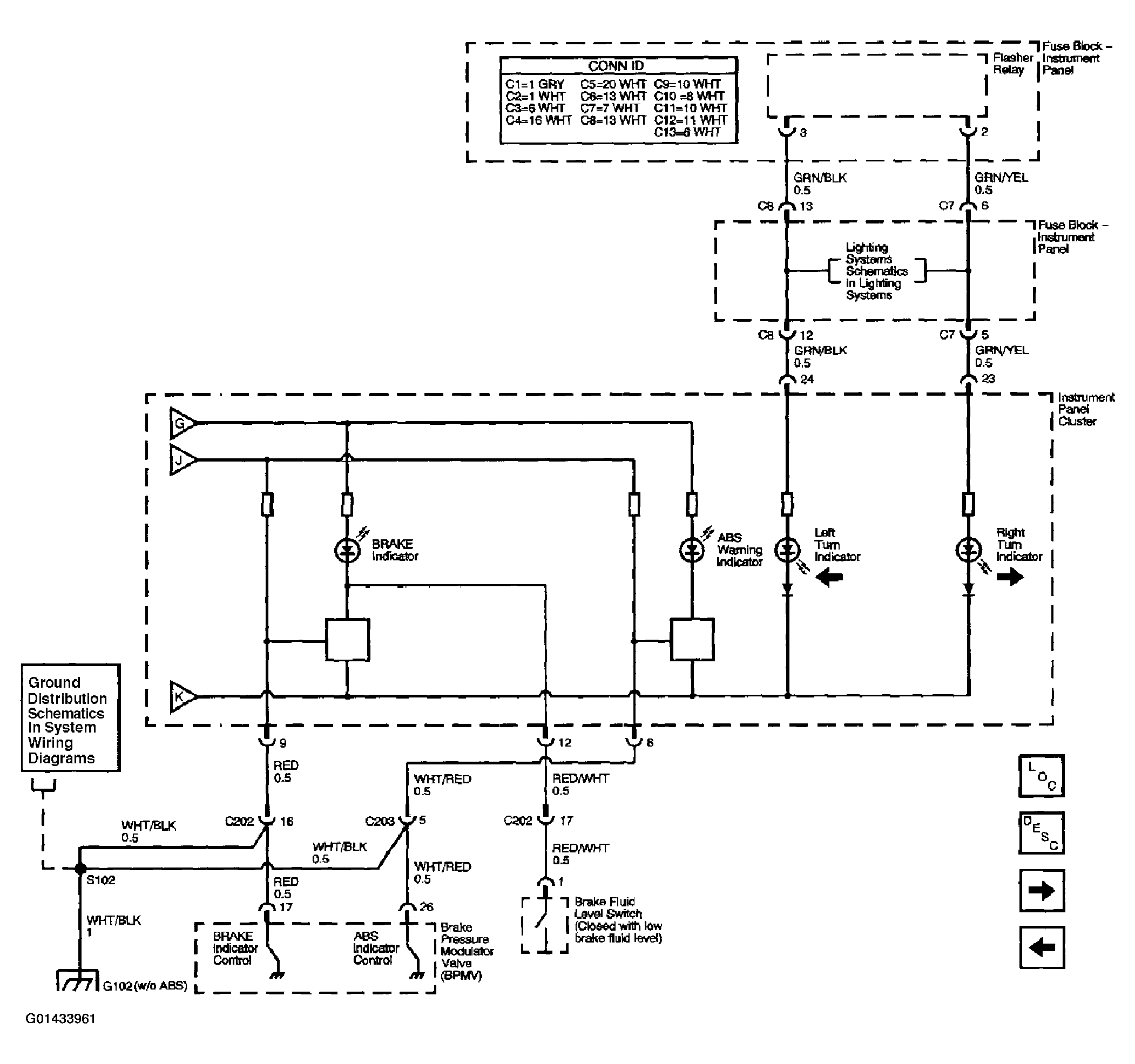

Fig 4: Instrument Cluster Schematic Diagram (Brake, ABS Indicators, Turn Indicators)

Courtesy of GENERAL MOTORS CORP.

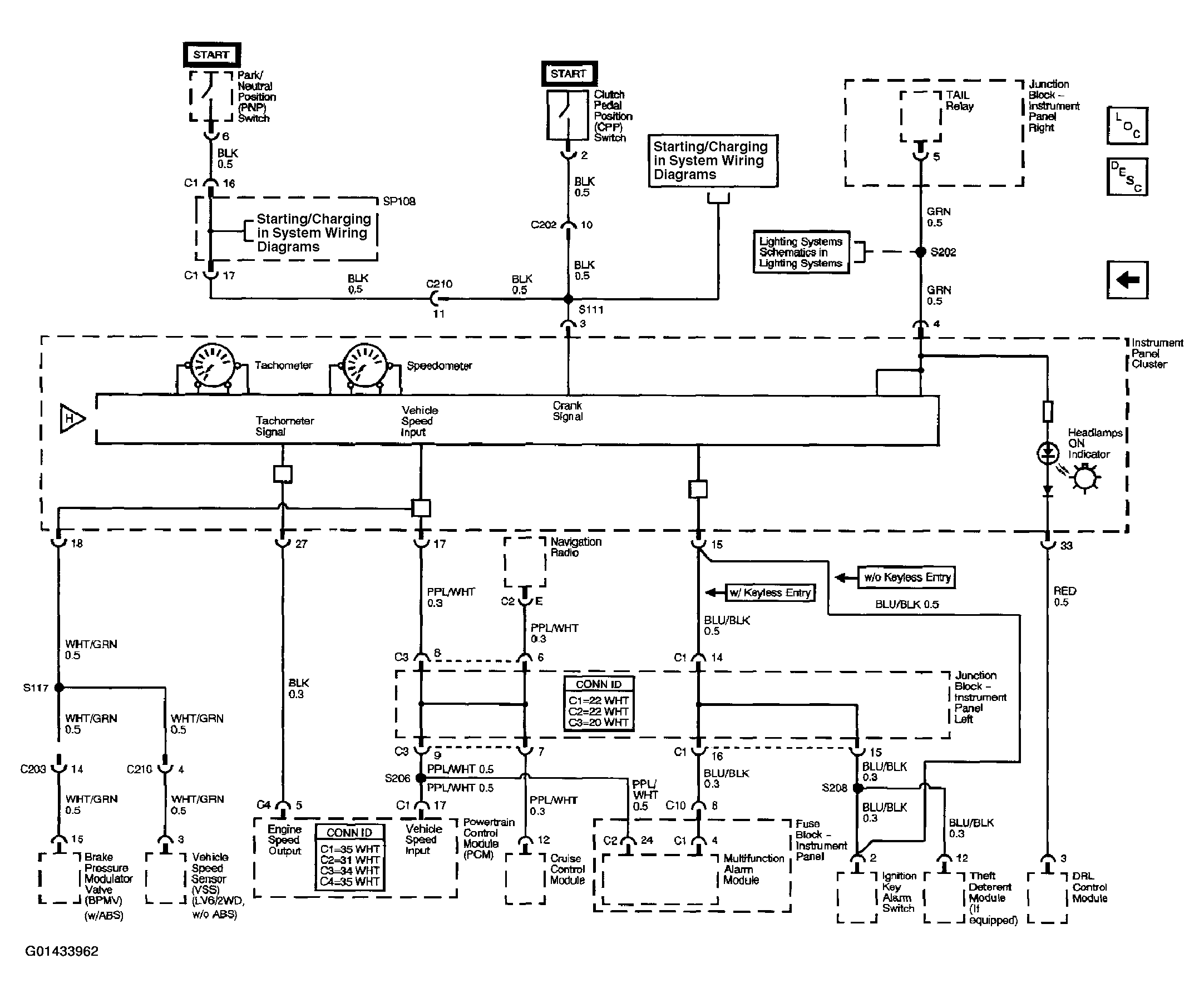

Fig 5: Instrument Cluster Schematic Diagram (Tachometer, Speedometer And Headlamps On Indicator)

Courtesy of GENERAL MOTORS CORP.

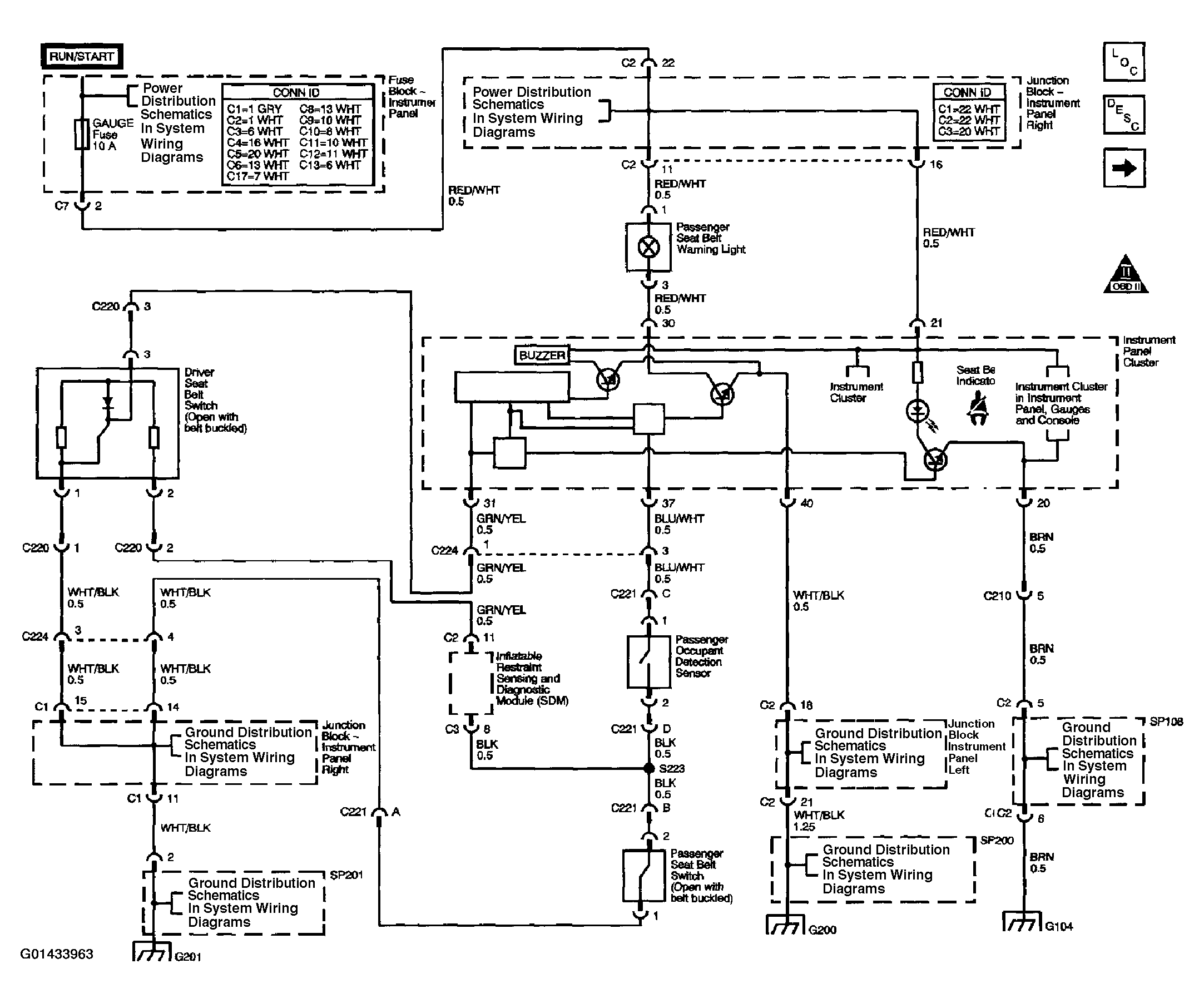

Fig 6: Audible Warnings Schematic Diagram (Seat Belt Warning Indicator)

Courtesy of GENERAL MOTORS CORP.

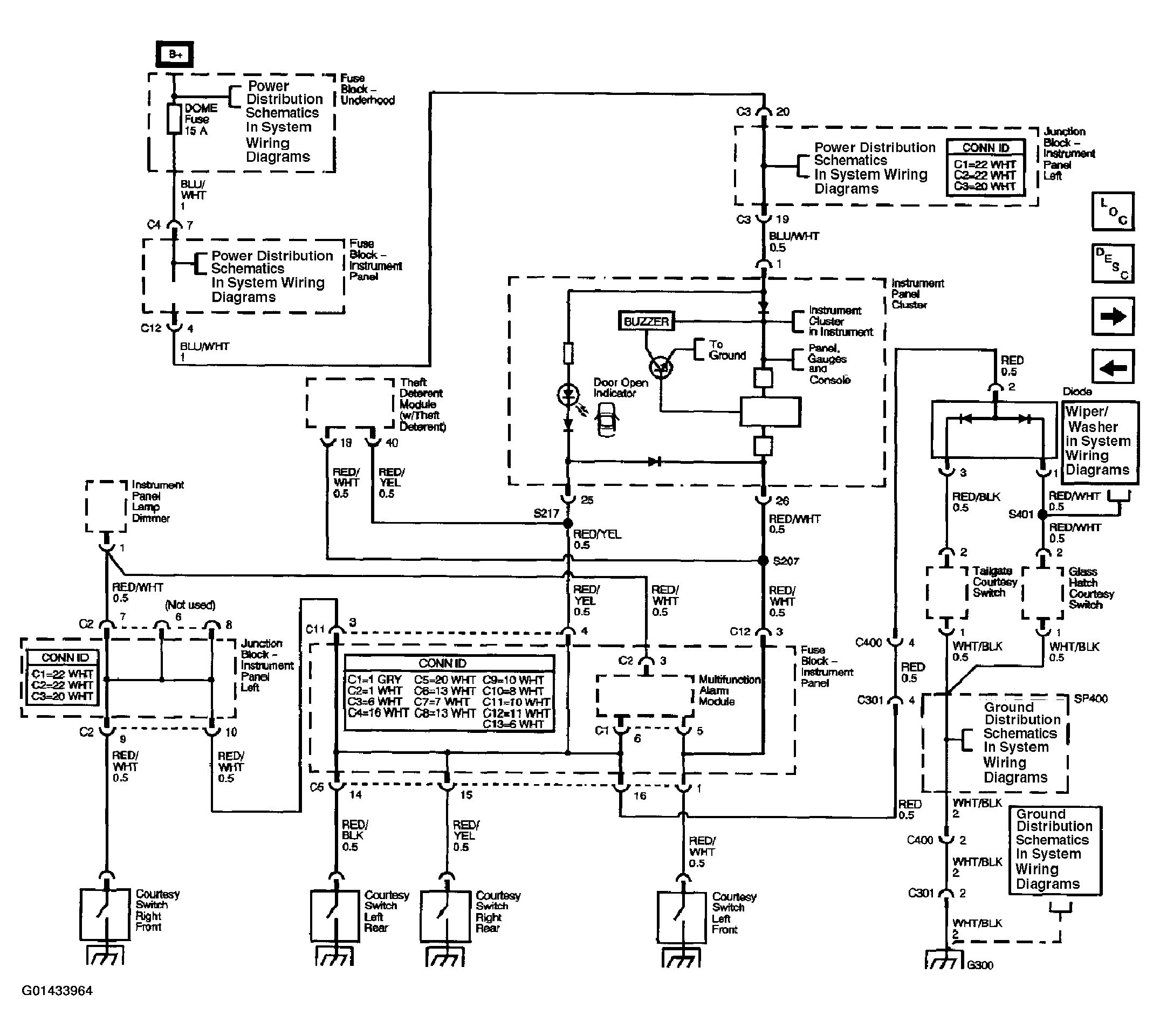

Fig 7: Audible Warnings Schematic Diagram (Door Open Warning Indicator)

Courtesy of GENERAL MOTORS CORP.

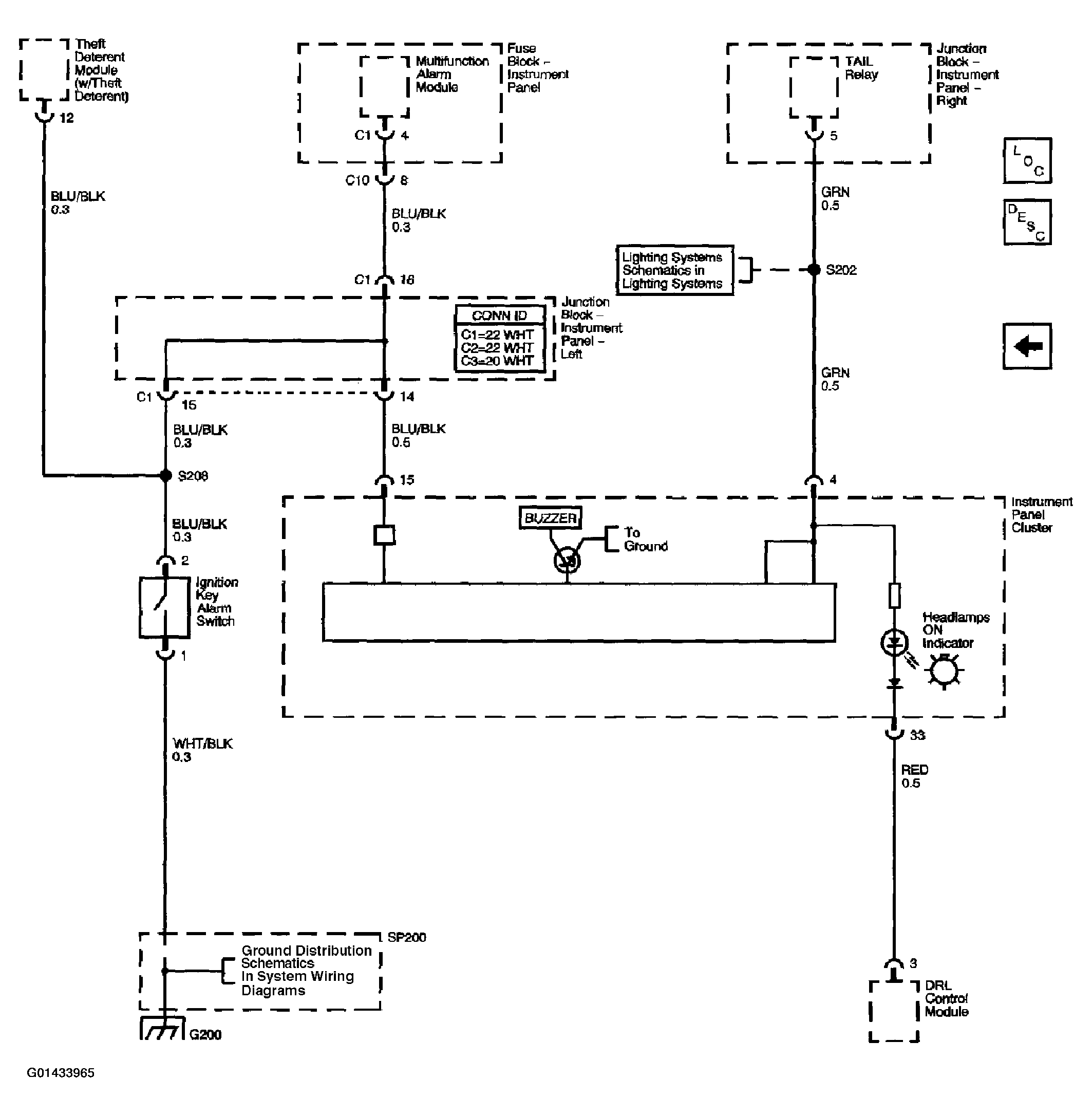

Fig 8: Audible Warnings Schematic Diagram (Headlamps On Indicator And Ignition Key Alarm)

Courtesy of GENERAL MOTORS CORP.
