Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a taped flat bladed tool, gently pry and release the retaining clips which secure the IP accessory left trim plate (1) to the instrument panel assembly.
  2. Disconnect the following components:
    • The power mirror switch electrical connector
    • The dimmer switch electrical connector
  3. Remove the power mirror switch, if necessary. Refer to POWER MIRROR SWITCH REPLACEMENT .
  4. Remove the dimmer switch, if necessary. Refer to INSTRUMENT PANEL (I/P) DIMMER SWITCH REPLACEMENT .

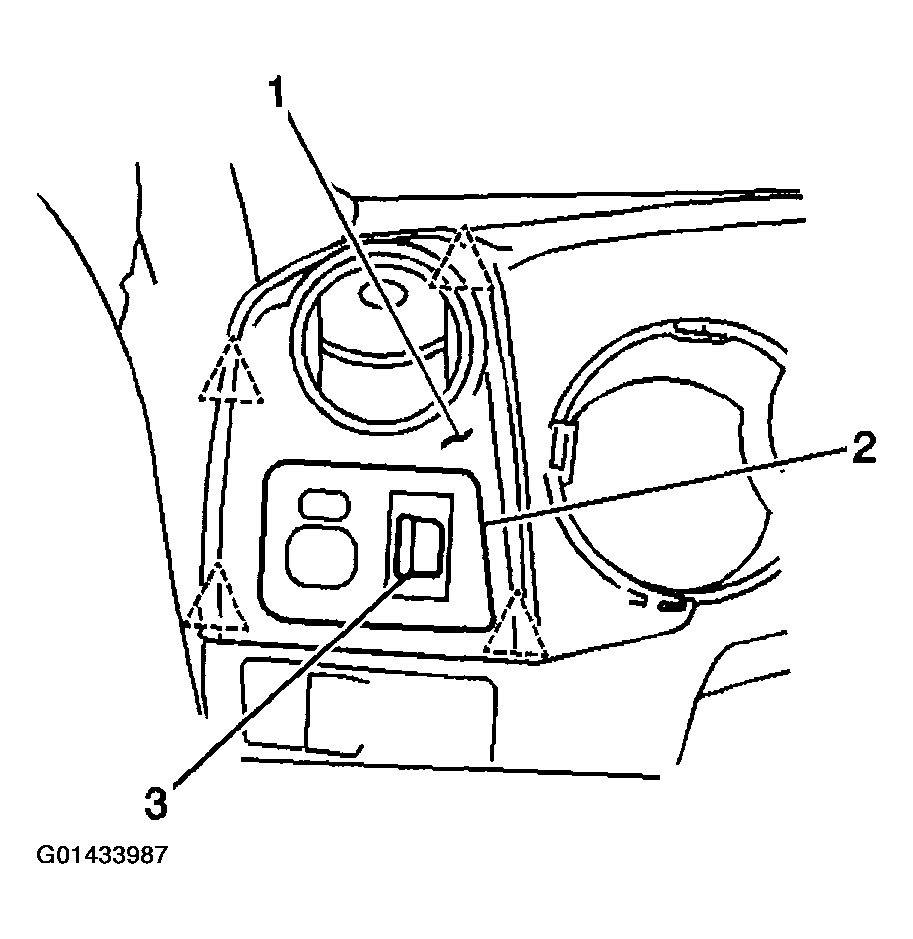

    Fig 1: Removing Instrument Panel Accessory Left Trim Plate
    G01433987Courtesy of GENERAL MOTORS CORP.
