Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the dimmer switch, if removed. Refer to INSTRUMENT PANEL (I/P) DIMMER SWITCH REPLACEMENT .
  2. Install the power mirror switch, if removed. Refer to POWER MIRROR SWITCH REPLACEMENT .
  3. Connect the following components:
    • The dimmer switch electrical connector
    • The power mirror switch electrical connector
  4. Install the IP accessory center trim plate (1) to the IP assembly. Ensure that the retaining clips are fully engaged.

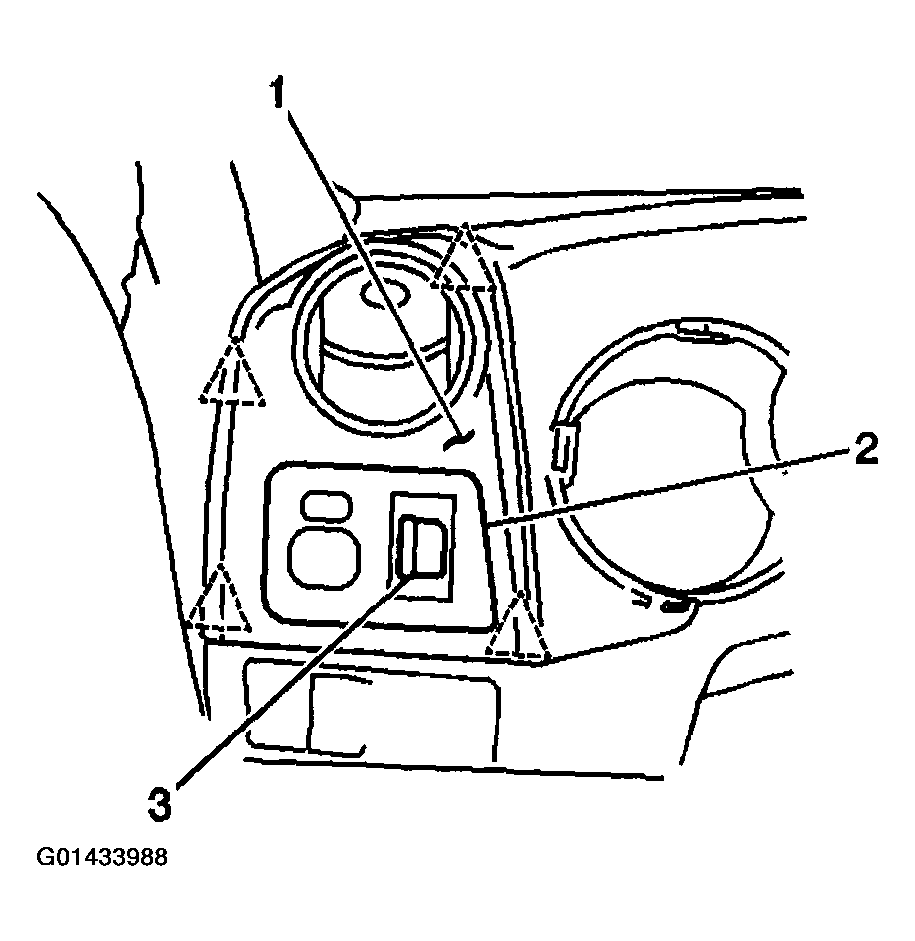

    Fig 1: Installing Instrument Panel Accessory Left Trim Plate
    G01433988Courtesy of GENERAL MOTORS CORP.
