Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a flat bladed tool, disengage the 8 clips.
  2. Gently remove the cluster trim plate (1) from the instrument panel assembly.

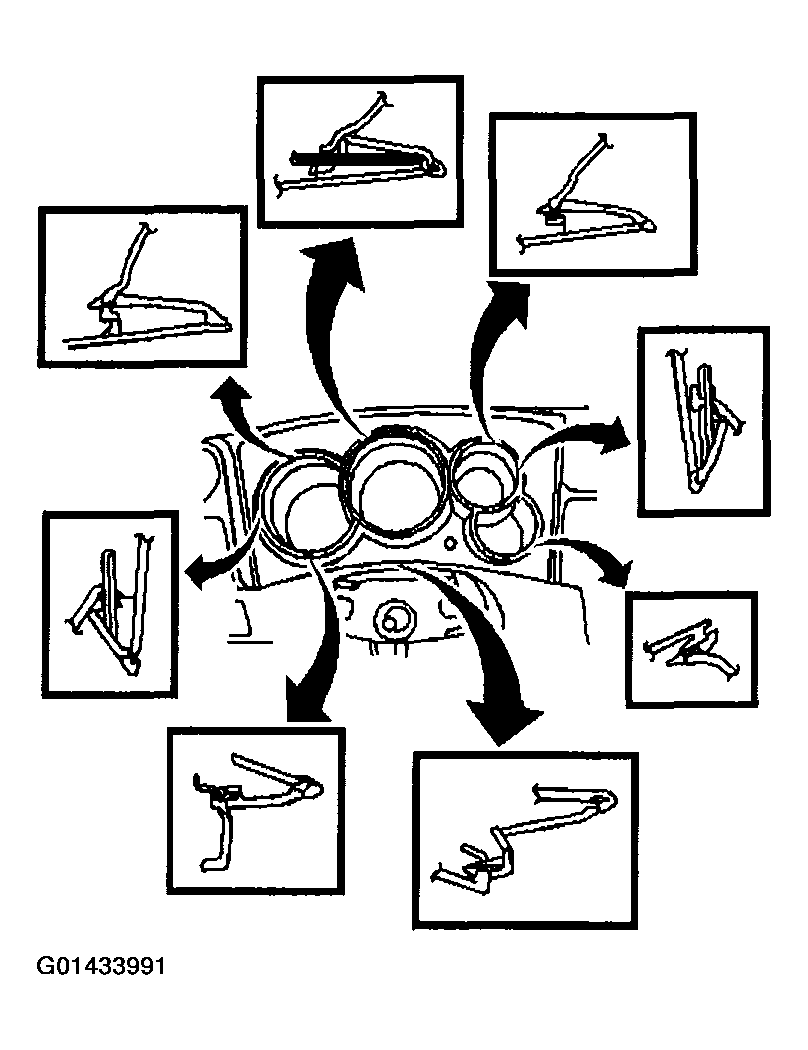

    Fig 1: Removing Instrument Panel Accessory Cluster Trim Plate
    G01433991Courtesy of GENERAL MOTORS CORP.
