Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently install the IP cluster trim plate (1) by pressing into place until fully seated.
  2. Return the steering column to the upright position.

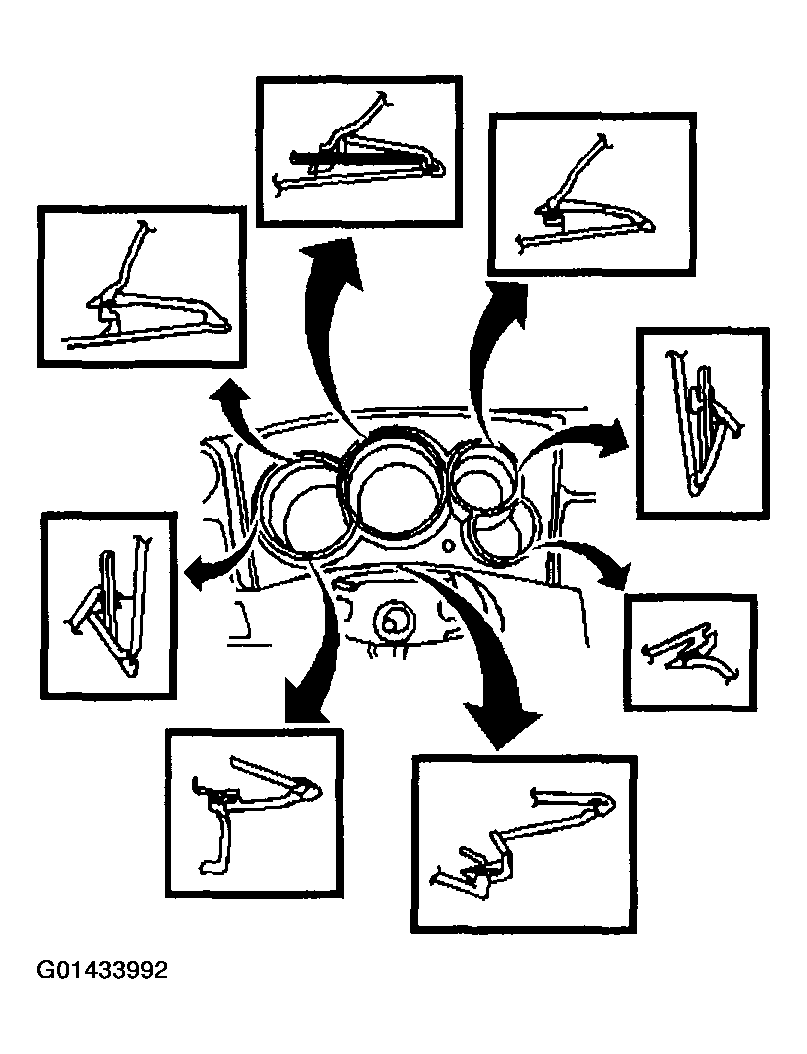

    Fig 1: Installing Instrument Panel Accessory Cluster Trim Plate
    G01433992Courtesy of GENERAL MOTORS CORP.
