Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a taped flat bladed tool, gently pry and release the retaining clips which secure the IP accessory center trim plate (1) to the instrument panel assembly  .
  2. Disconnect the following components:
    • The A/C switch electrical connector
    • The hazard warning switch electrical connector
    • The rear defogger switch electrical connector
    • The passenger seat belt indicator electrical connector
  3. Remove the A/C switch, if necessary. Refer to HVAC CONTROL ASSEMBLY REPLACEMENT (CONTROL ASSEMBLY) or HVAC CONTROL ASSEMBLY REPLACEMENT (A/C SWITCH) in HVAC Systems - Manual.
  4. Remove the hazard warning switch, if necessary. Refer to HAZARD WARNING SWITCH REPLACEMENT - ON VEHICLE .
  5. Remove the rear defogger switch, if necessary. Refer to REAR WINDOW DEFOGGER SWITCH REPLACEMENT .

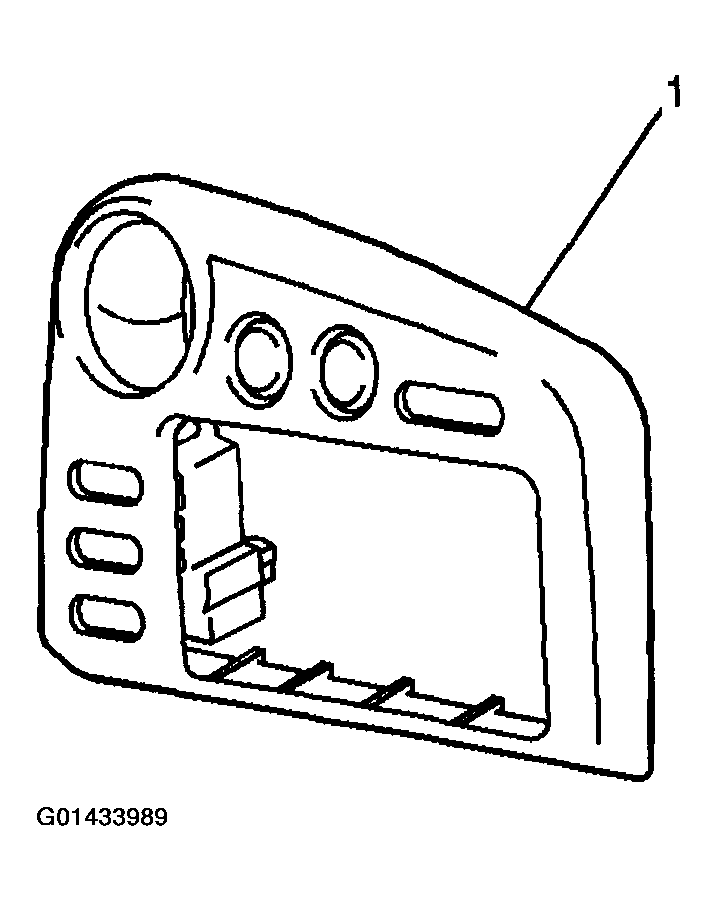

    Fig 1: Removing Instrument Panel Accessory Center Trim Plate
    G01433989Courtesy of GENERAL MOTORS CORP.
