Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear defogger switch, if removed. Refer to REAR WINDOW DEFOGGER SWITCH REPLACEMENT .
  2. Install the hazard warning switch, if removed. Refer to HAZARD WARNING SWITCH REPLACEMENT - ON VEHICLE .
  3. Install the A/C switch, if removed. Refer to HVAC CONTROL ASSEMBLY REPLACEMENT (CONTROL ASSEMBLY) or HVAC CONTROL ASSEMBLY REPLACEMENT (A/C SWITCH) in HVAC Systems - Manual.
  4. Connect the following components:
    • The passenger seat belt indicator electrical connector
    • The rear defogger switch electrical connector
    • The hazard warning switch electrical connector
    • The A/C switch electrical connector
  5. Install the IP accessory center trim plate (1) to the IP assembly. Ensure that the retaining clips are fully engaged.

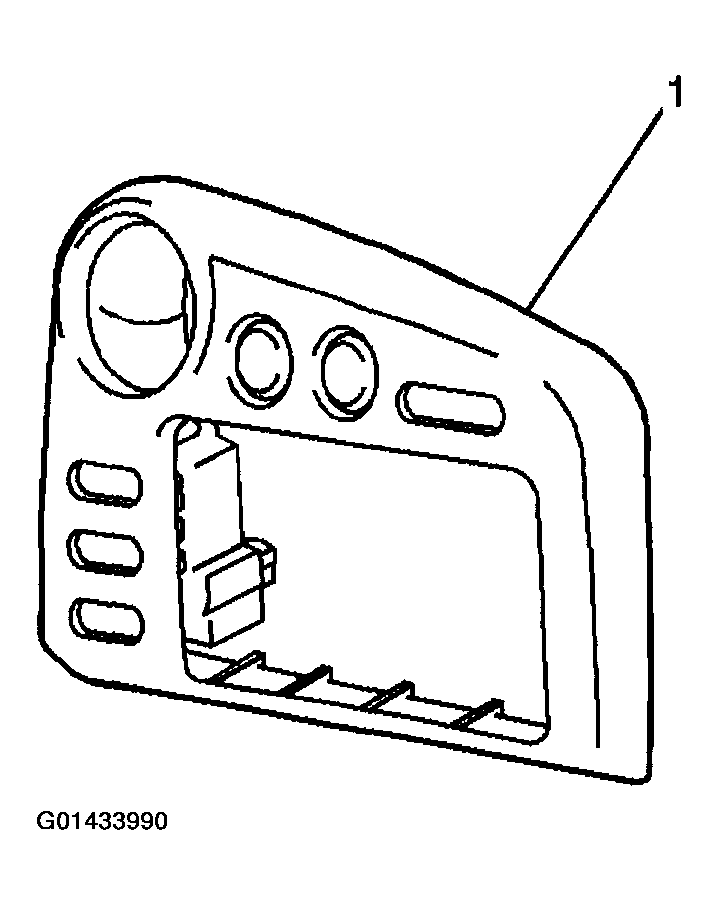

    Fig 1: Installing Instrument Panel Accessory Center Trim Plate
    G01433990Courtesy of GENERAL MOTORS CORP.
