Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel storage compartment tray (1).

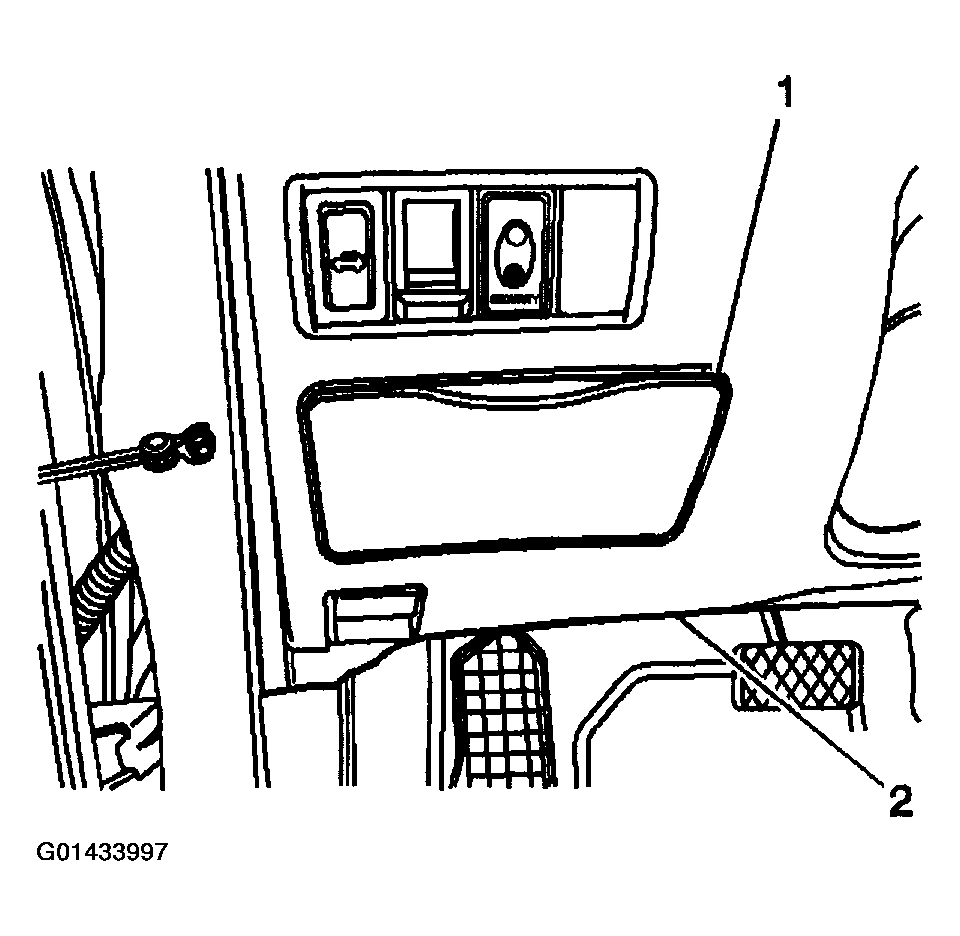

    Fig 1: Opening Instrument Panel Storage Compartment Tray
    G01433997Courtesy of GENERAL MOTORS CORP.
  2. Pushing on both sides of the instrument panel storage compartment tray (1), pull out the compartment tray (2).
    Fig 2: Pulling Compartment Tray
    G01433998Courtesy of GENERAL MOTORS CORP.
