Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the instrument panel storage compartment tray (1) to the instrument panel (2).
  2. Close the instrument panel storage compartment tray.

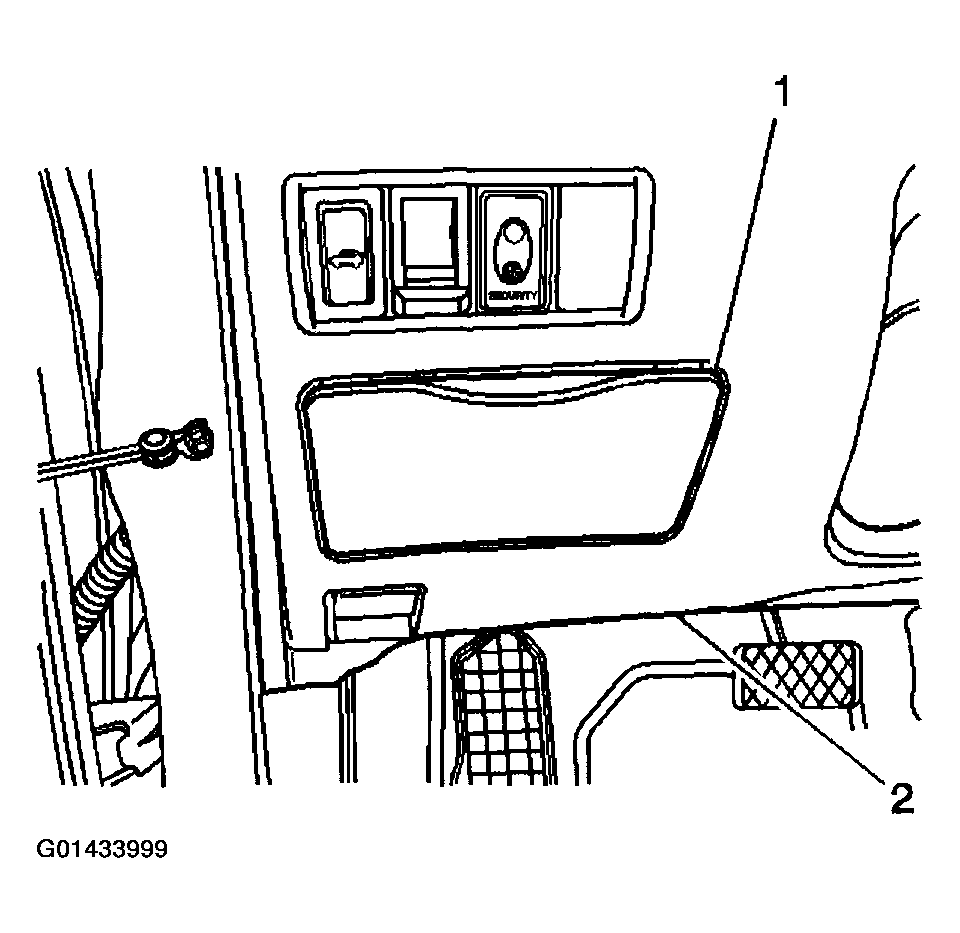

    Fig 1: Installing Instrument Panel Storage Compartment Tray To Instrument Panel
    G01433999Courtesy of GENERAL MOTORS CORP.
