Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the instrument cluster assembly (2).
  2. Install the cluster assembly (2) to the instrument panel assembly. Secure the assembly with the screw (1) and the 2 clips (3).
  3. Install the IP cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .

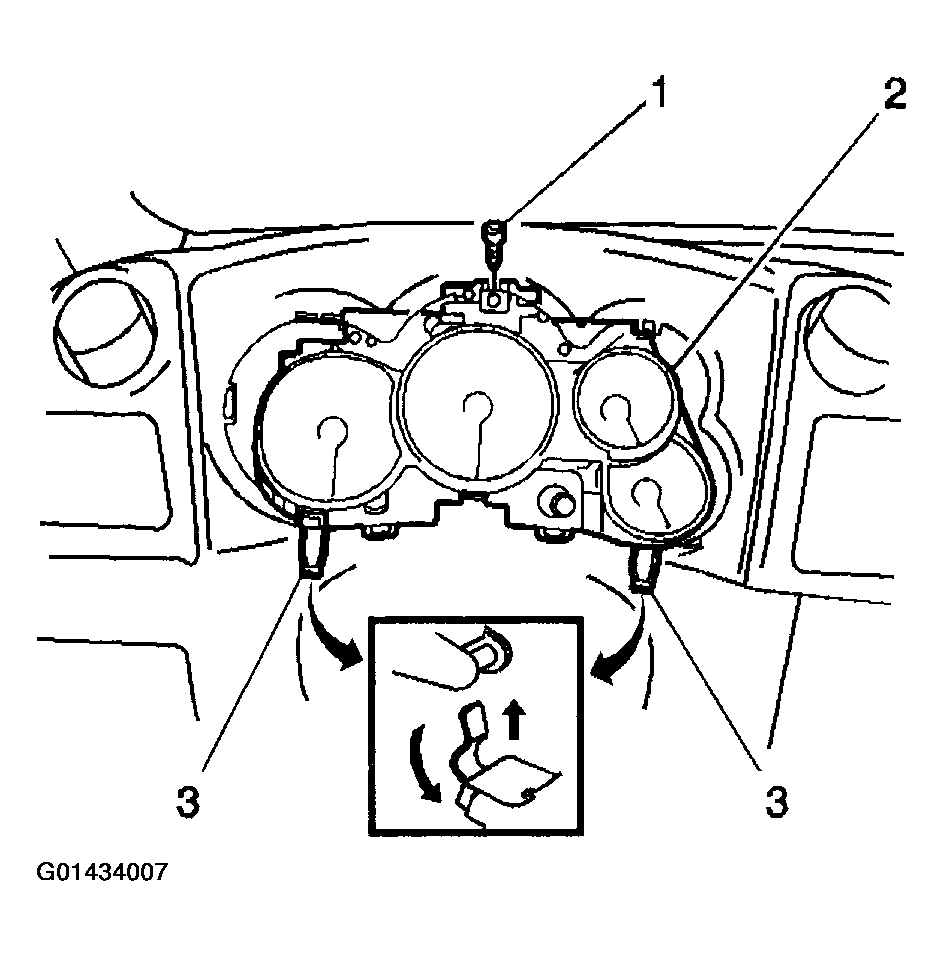

    Fig 1: Installing Cluster Assembly From Instrument Panel Assembly
    G01434007Courtesy of GENERAL MOTORS CORP.
