Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper instrument panel assembly. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  .
  2. Remove the lower instrument panel assembly. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT - LOWER  .
  3. Remove the following components from the instrument panel (2):
    • The right I/P outer air outlet
    • The plastic retainers
    • The left I/P outer air outlet
    • The screws
    • The wire harness retainers
    • The instrument panel wiring harness (5)

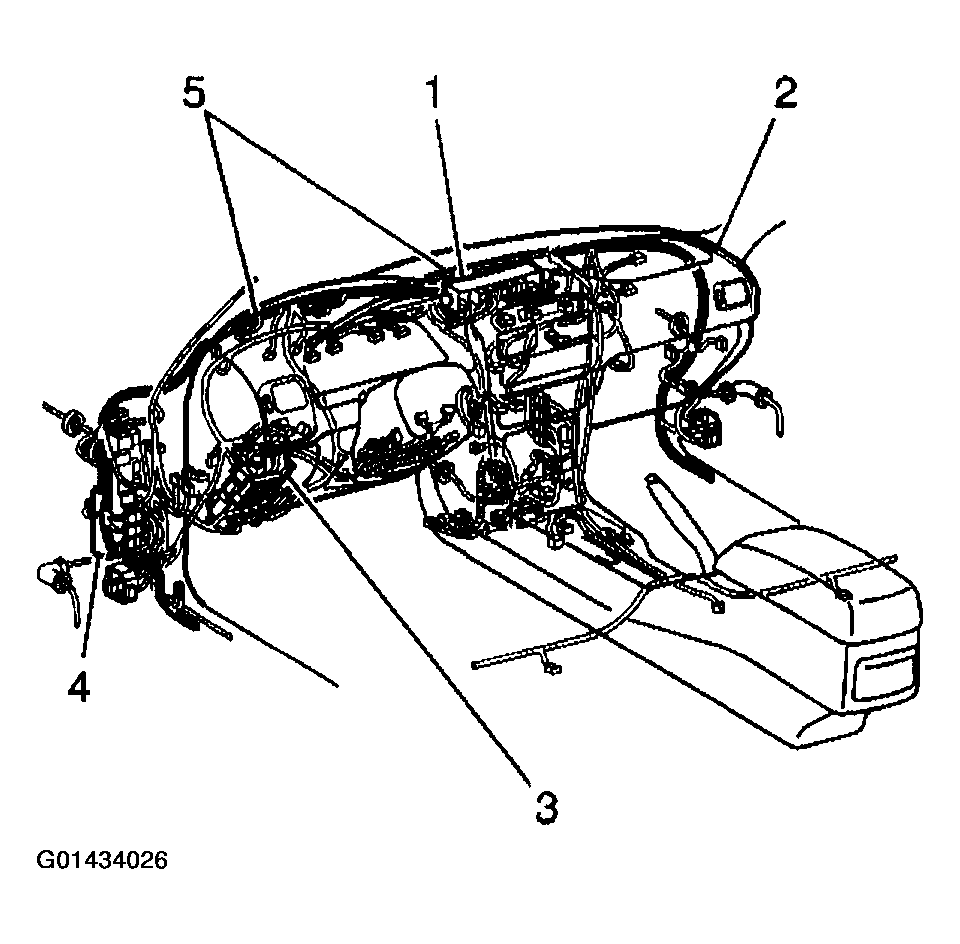

      Fig 1: Removing Instrument Panel Harness
      G01434026Courtesy of GENERAL MOTORS CORP.
