Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the instrument panel wiring harness (5) to the instrument panel (2). Secure the harness with the following:
    • The wire harness retainers
    • The screws
  2. Install the left I/P outer air outlet to the instrument panel assembly. Secure the duct with the plastic retainer.
  3. Install the right I/P outer air outlet to the instrument panel assembly. Secure the duct with the screw.
  4. Install the lower instrument panel assembly. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT - LOWER  .
  5. Install the upper instrument panel assembly. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  .

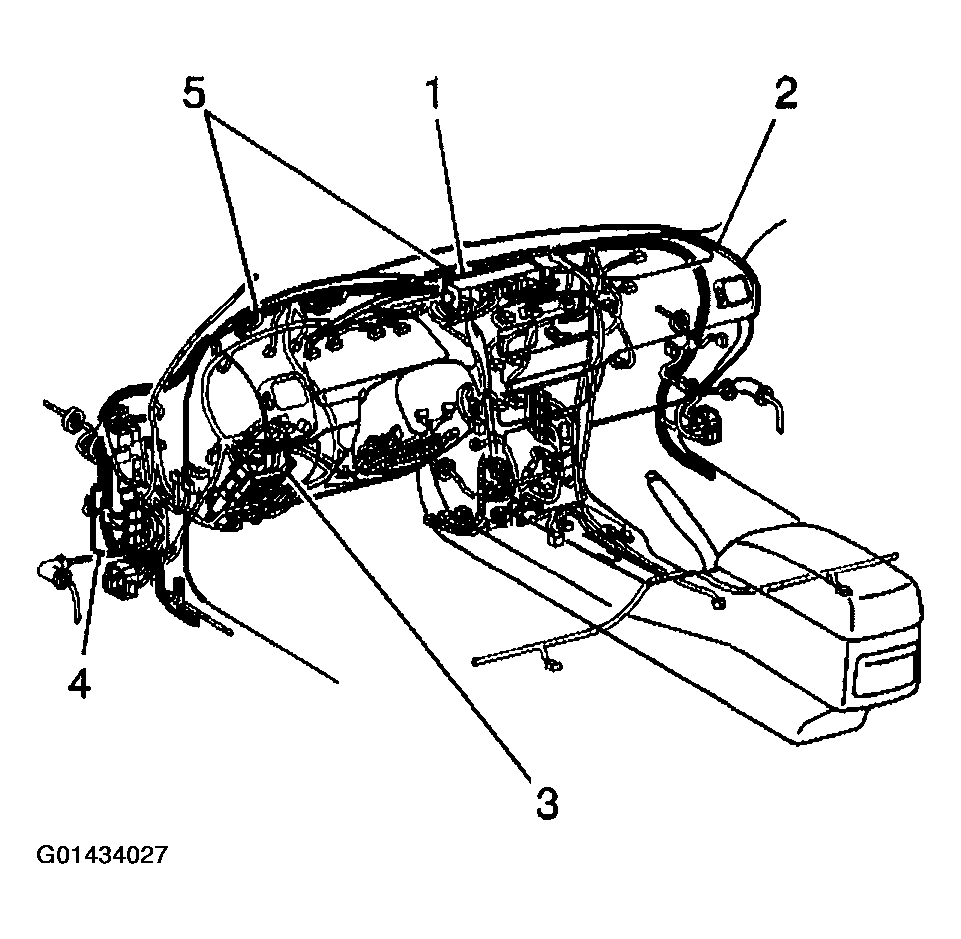

    Fig 1: Installing Instrument Panel Harness
    G01434027Courtesy of GENERAL MOTORS CORP.
