Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console box insert (6).
  2. Open console lid.
  3. Remove the console box damper (1).
  4. Remove the 2 front bolts (5).
  5. Remove the 2 rear bolts (2).
  6. Disconnect the electrical connector (4).
  7. Remove rear console (3).

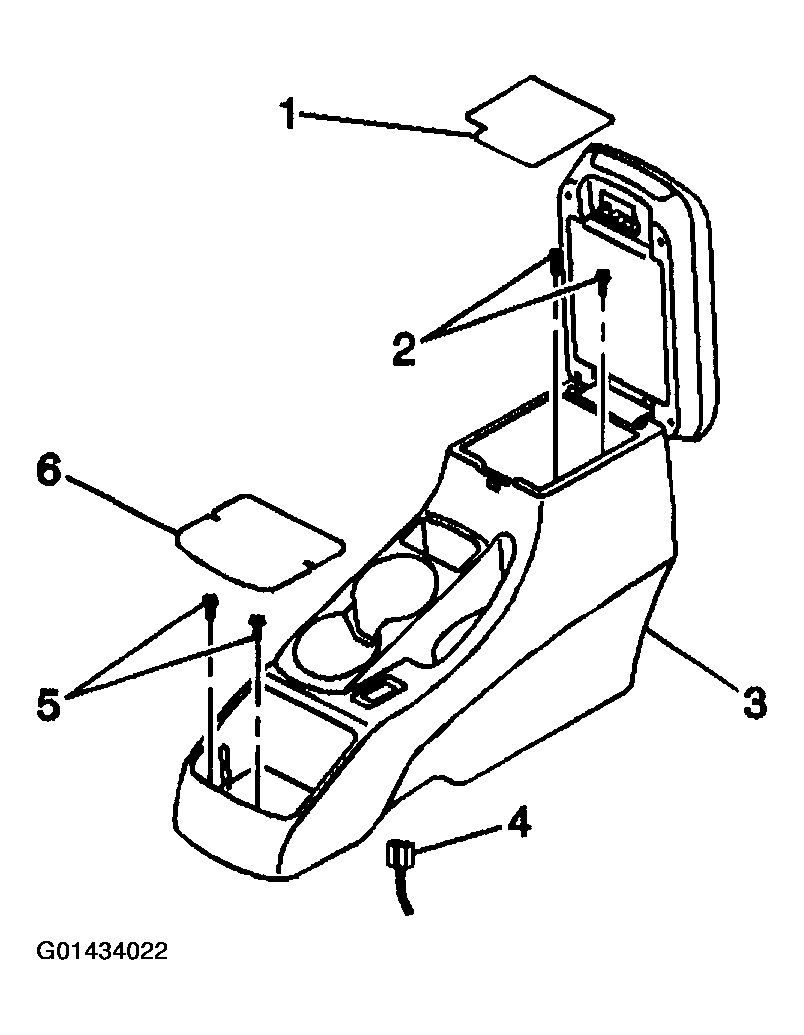

    Fig 1: Removing Rear Floor Console
    G01434022Courtesy of GENERAL MOTORS CORP.
