Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector (4).
  2. Install the front floor rear console (3) to the vehicle.
  3. Lower the parking brake lever.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the front 2 bolts (5) to the front compartment of the rear console and the 2 rear bolts (2) to the rear of the console (3).

    Tighten

    Tighten the console bolts to 15 N.m (11 lb in).

  5. Install the front insert (6) to the rear console (3).
  6. Install the console box damper (1) to the rear compartment of the rear console (3).

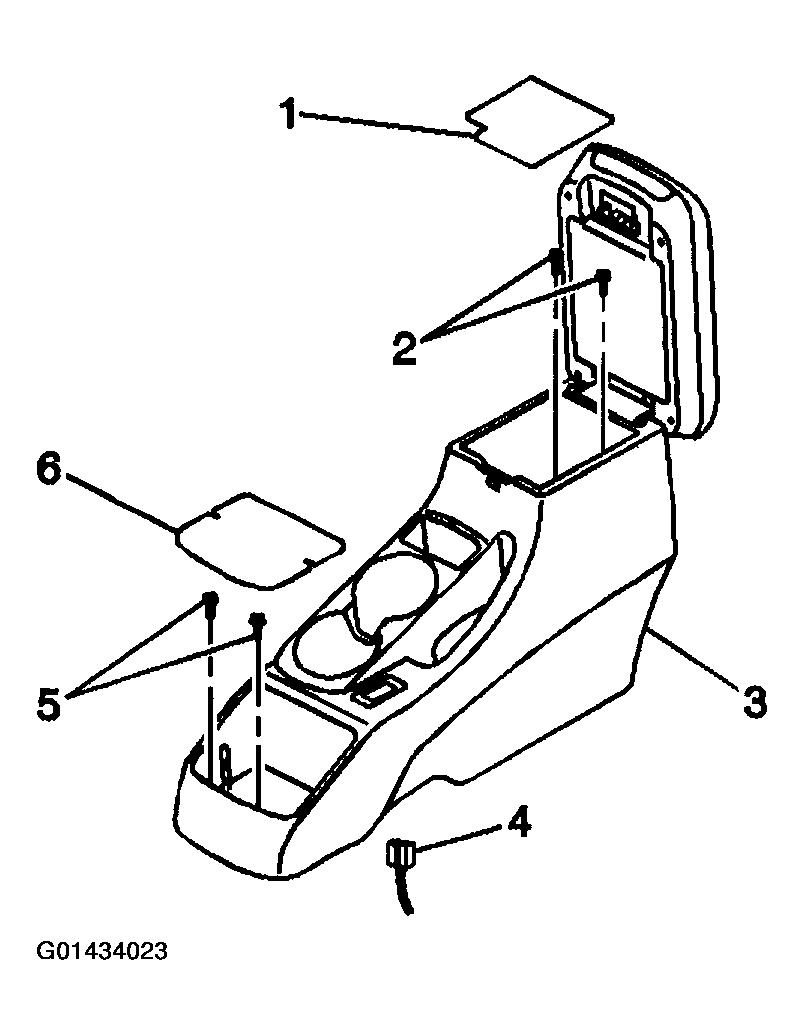

    Fig 1: Installing Rear Floor Console
    G01434023Courtesy of GENERAL MOTORS CORP.
