Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE  .
  2. Remove the front floor console storage door.
  3. Remove the screws which secure the front floor front console to the instrument panel assembly.
  4. Pull the front floor console rearward and up.
  5. Remove the front floor console from the vehicle.

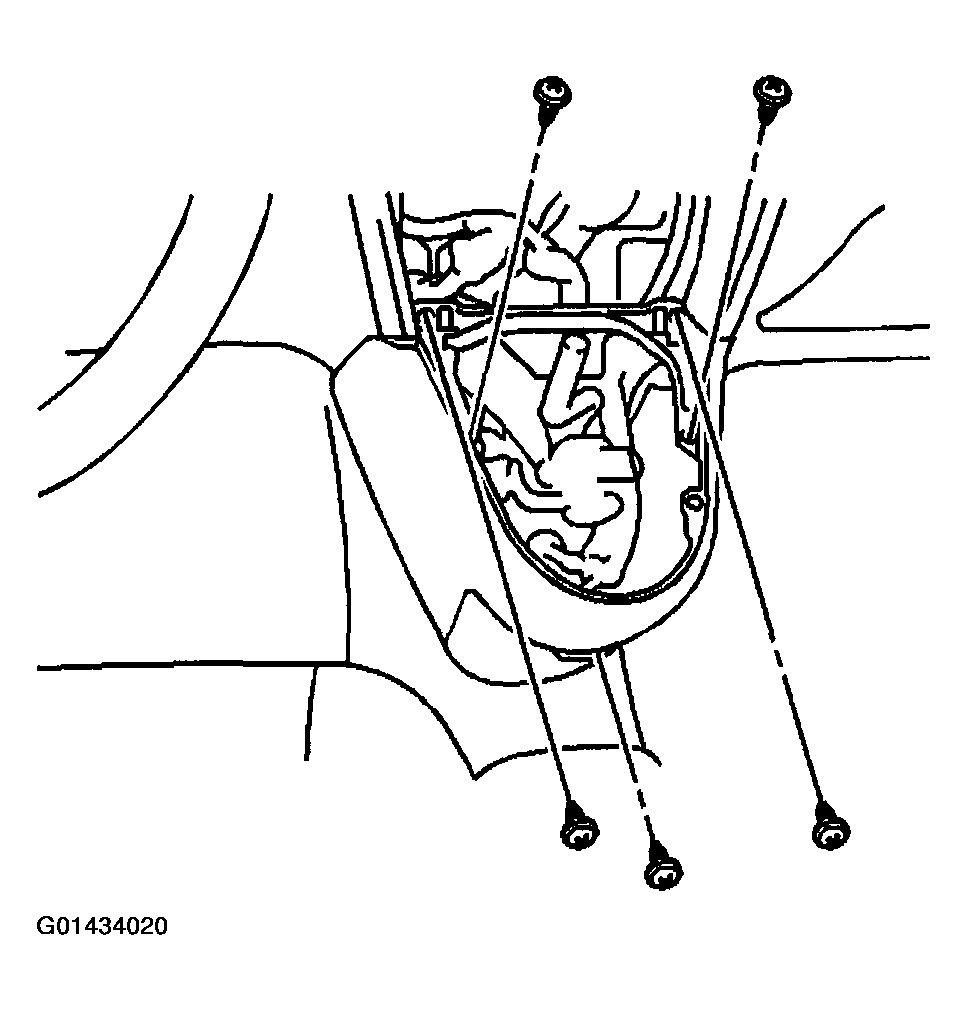

    Fig 1: Removing Front Floor Console
    G01434020Courtesy of GENERAL MOTORS CORP.
