Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel compartment door.
  2. Remove the screw (3).
  3. Compress each side of the I/P compartment, until the upper tabs (1) release.
  4. Remove the I/P compartment (2) by pulling out to disengage lower tabs (4).

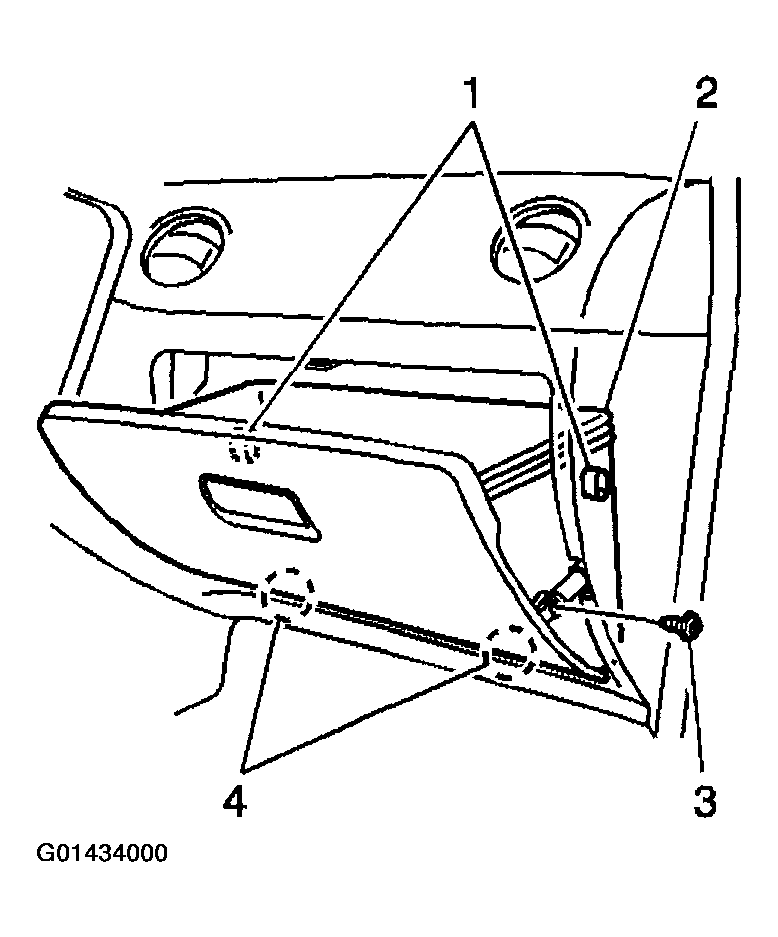

    Fig 1: Removing Instrument Panel Compartment
    G01434000Courtesy of GENERAL MOTORS CORP.
