Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE  .
  2. Remove the cigar lighter rear retainer (1) from the cigar element housing (2).
  3. Remove the cigar element (3).
  4. Remove the cigar element housing (2) from the front floor console trim plate by turning counterclockwise 90 degrees and pushing on the back of the element housing (2).

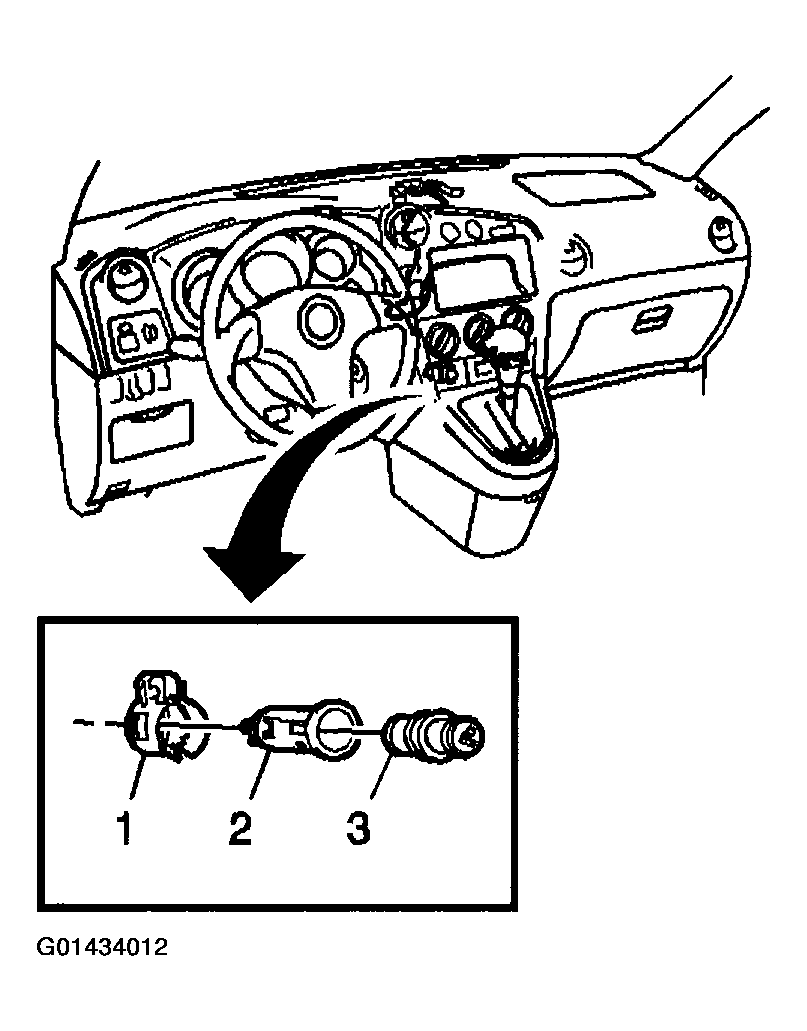

    Fig 1: Removing Cigar Lighter Assembly Components
    G01434012Courtesy of GENERAL MOTORS CORP.
