Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper instrument panel assembly. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  .
  2. Remove the lower instrument panel assembly. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT - LOWER  .
  3. Remove the connector housing bracket from the right I/P center support brace.
  4. Remove the following components from the vehicle:
    • The left brace nut (10)
    • The right brace nut (5)
    • The left brace bolt (8)
    • The right brace bolt (7)
    • The left I/P center support brace (9)
    • The right I/P center support brace (6)

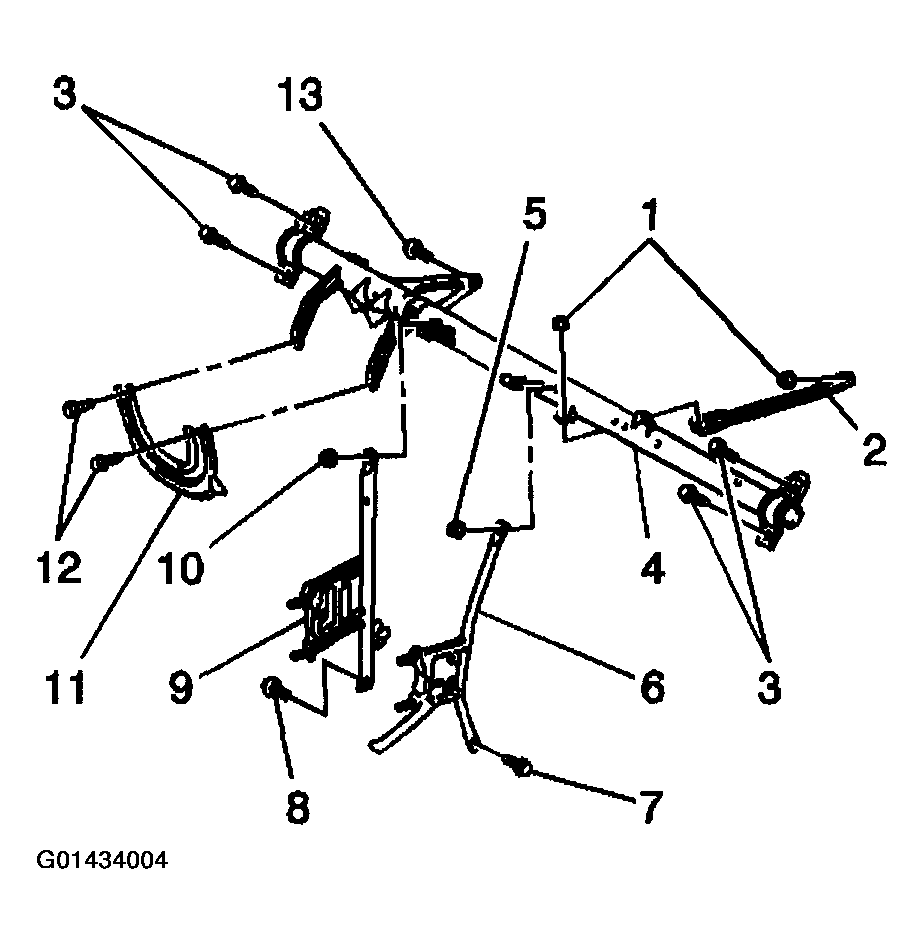

      Fig 1: Removing Connector Housing Bracket From Right Instrument Panel Center Support Brace
      G01434004Courtesy of GENERAL MOTORS CORP.
