Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear floor console. Refer to CONSOLE REPLACEMENT - REAR FLOOR  .
  2. Turn the socket in a counter clockwise direction.
  3. Disengage the tab between the socket and cover.
  4. Align the socket with the notch and remove socket assembly.

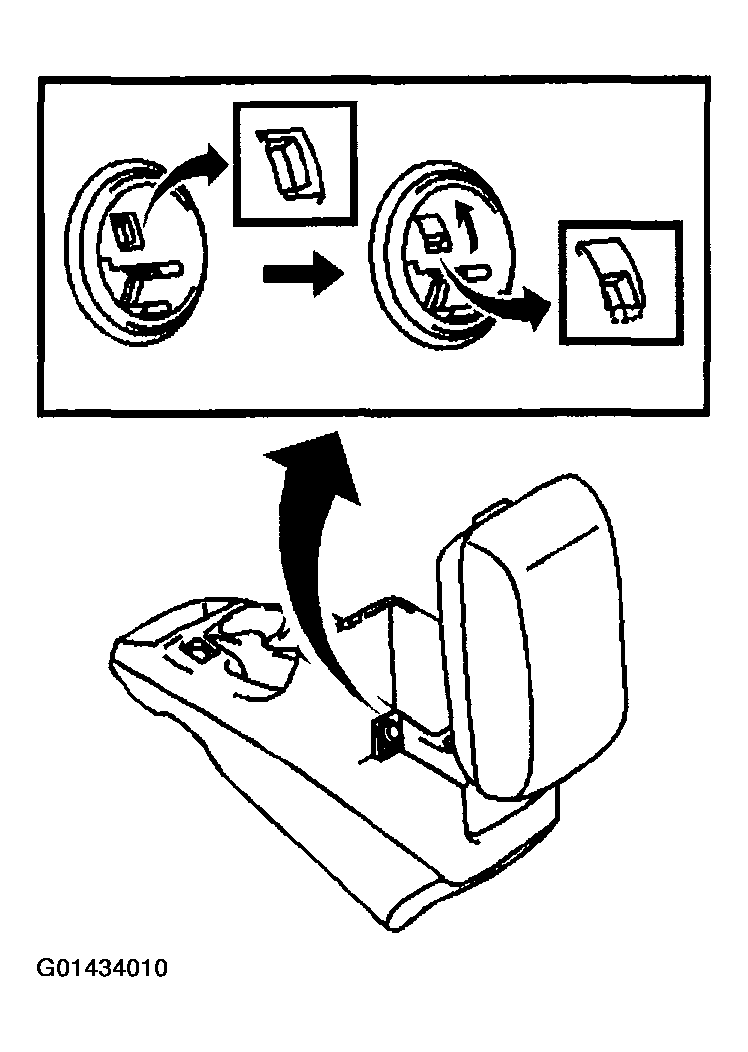

    Fig 1: Removing Power Supply Socket
    G01434010Courtesy of GENERAL MOTORS CORP.
