Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the socket with the notch on the cover, and push in to install.
  2. Install the rear floor console. Refer to CONSOLE REPLACEMENT - REAR FLOOR  .

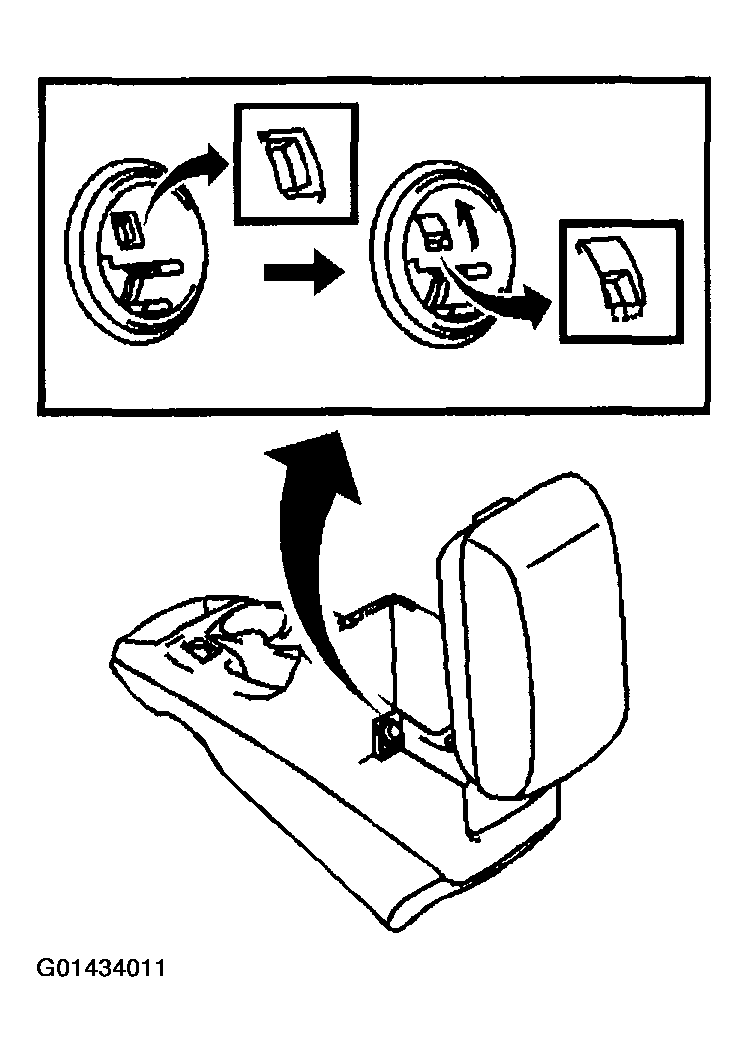

    Fig 1: Installing Power Supply Socket
    G01434011Courtesy of GENERAL MOTORS CORP.
