Gages Inoperative - All

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

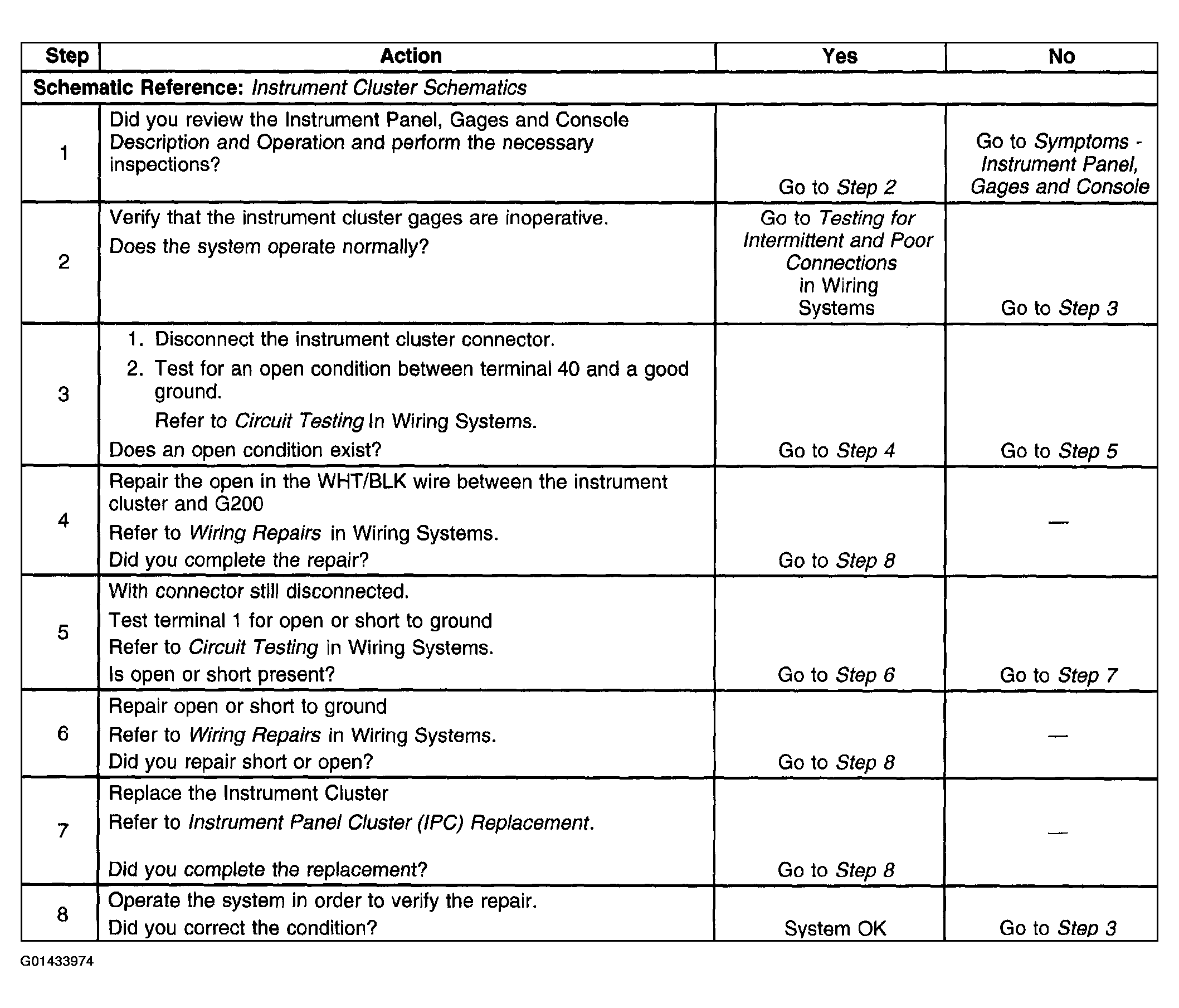

Fig 1: Diagnostic System Check Chart - Gages Inoperative (All)
G01433974Courtesy of GENERAL MOTORS CORP.
