Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper IP panel. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel Gages and Console.
  2. Disconnect the electrical connector (2).
  3. Remove the 2 screws (1).
  4. Remove the GPS antenna assembly (3) from the vehicle.

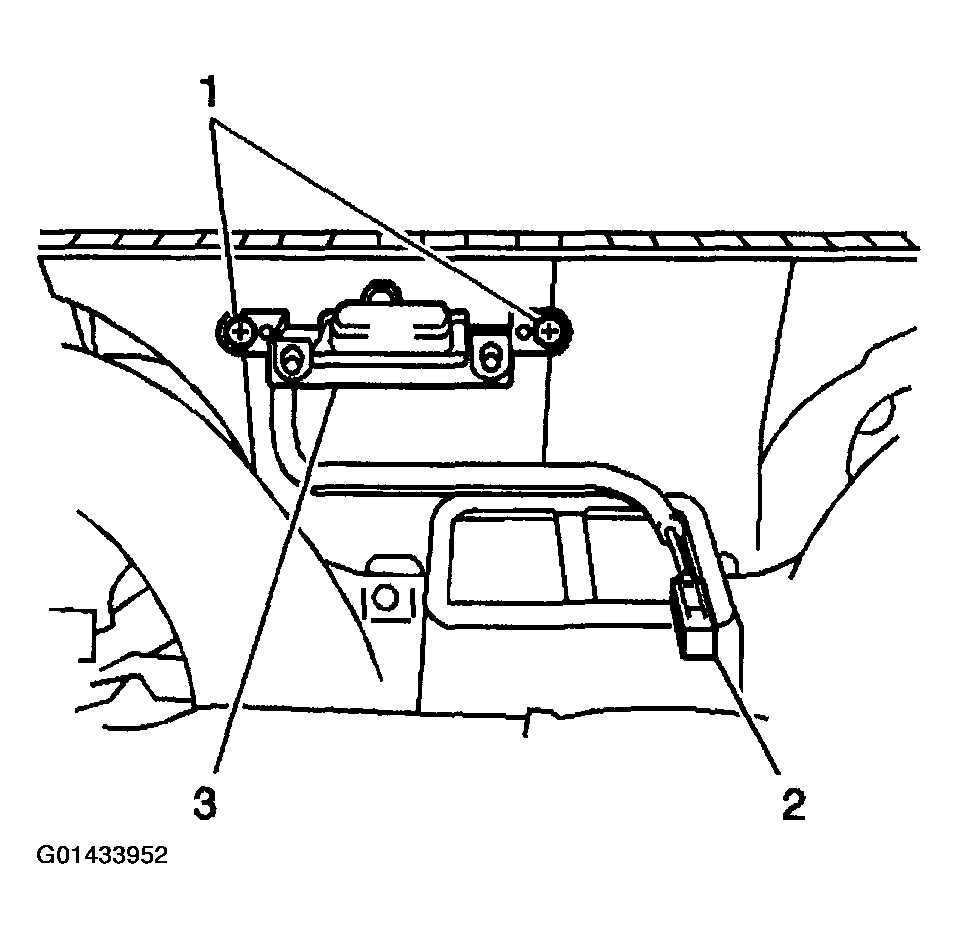

    Fig 1: Removing GPS Antenna Assembly From Vehicle
    G01433952Courtesy of GENERAL MOTORS CORP.
