Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the GPS antenna assembly (3) to the vehicle. Secure the GPS antenna assembly with the 2 screws (1).
  2. Connect the electrical connector (2).
  3. Install the upper IP panel. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel Gages and Console.

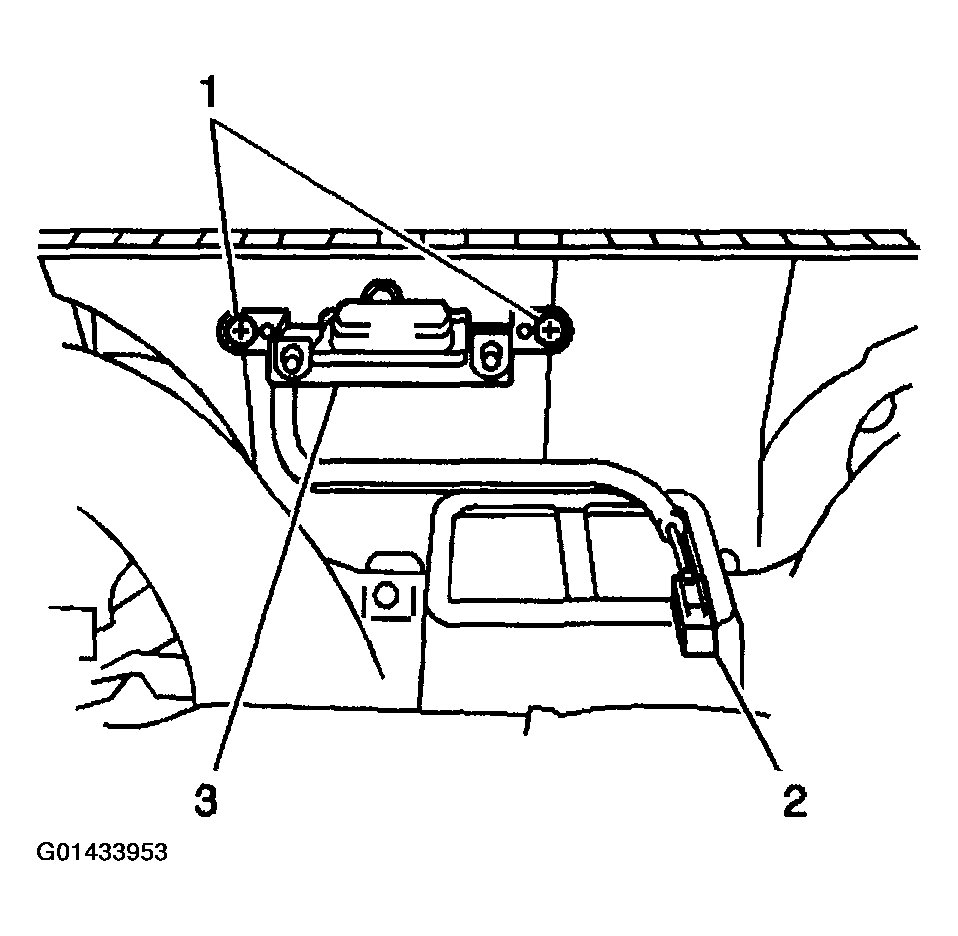

    Fig 1: Installing GPS Antenna Assembly To Vehicle
    G01433953Courtesy of GENERAL MOTORS CORP.
