Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR in Doors.
  2. Drill out the 3 rear door speaker rivets.
  3. Disconnect the speaker electrical connector.
  4. Remove the rear door speaker from the vehicle.

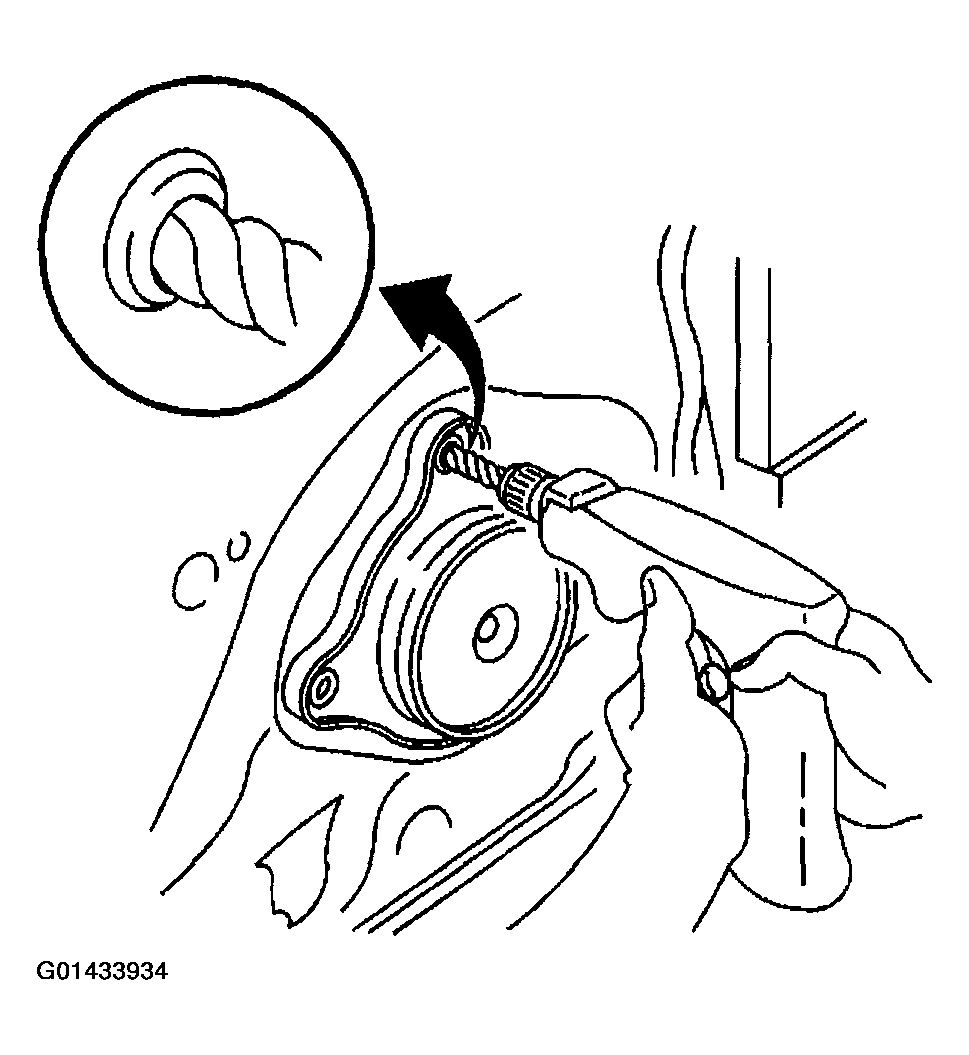

    Fig 1: Removing Rear Door Speaker From Vehicle
    G01433934Courtesy of GENERAL MOTORS CORP.
