Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR in Doors.
  2. Disconnect the speaker electrical connector (3).
  3. Remove the 2 nuts (2) from the door.
  4. Remove the front upper door speaker (1) from the vehicle.

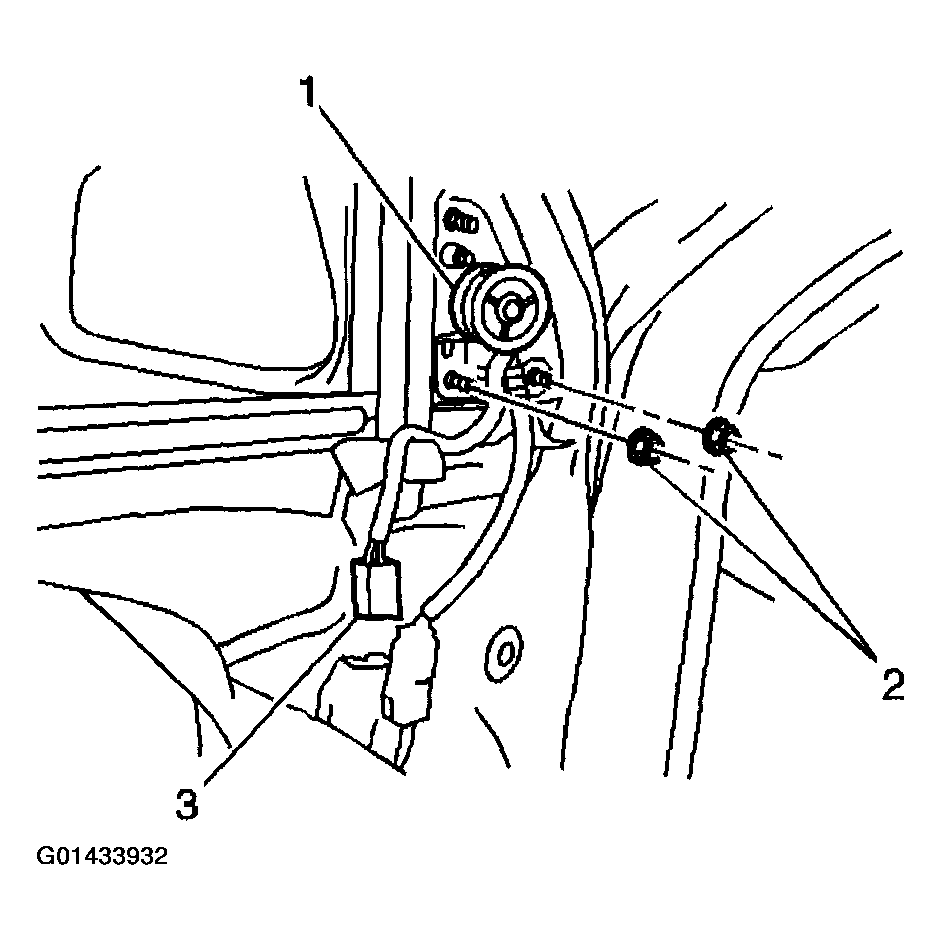

    Fig 1: Removing Front Upper Door Speaker From Vehicle
    G01433932Courtesy of GENERAL MOTORS CORP.
