Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the speaker (1) to the door.
    NOTE: Refer to FASTENER NOTICE .
  2. Secure the speaker with 2 nut ((2).

    Tighten

    Tighten the speaker nuts to 8.0 N.m (71 Ib. in).

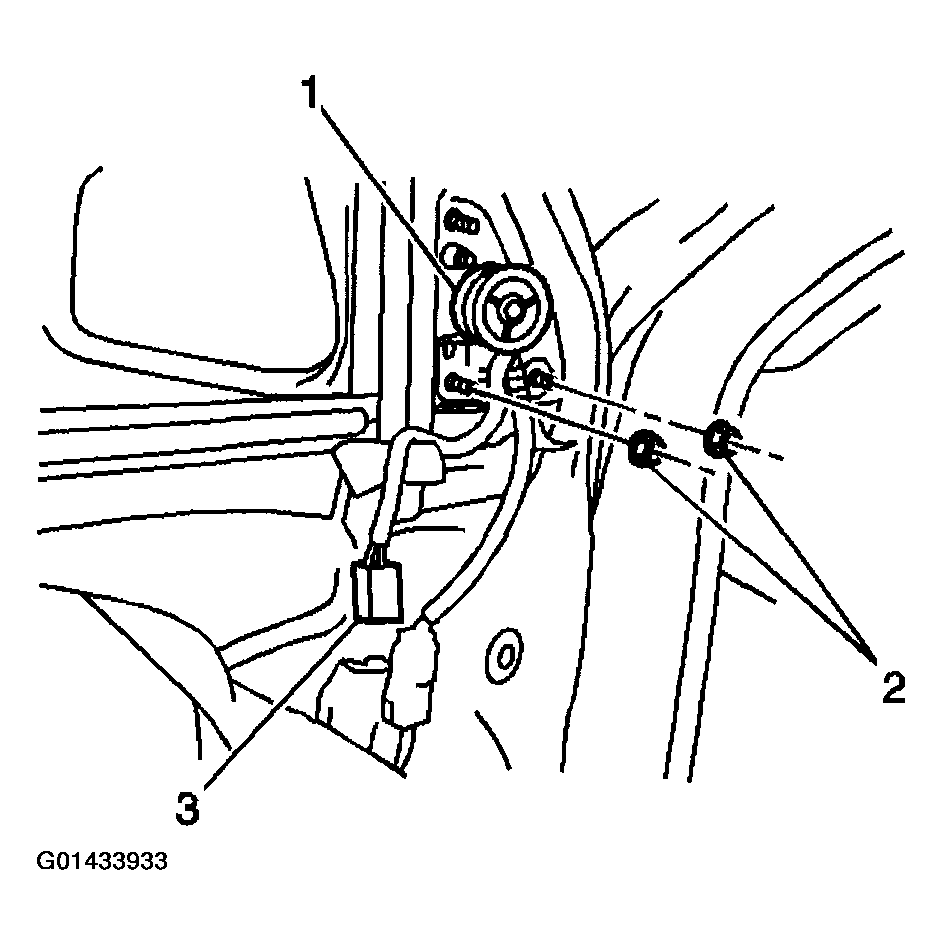

    Fig 1: Installing Front Upper Door Speaker
    G01433933Courtesy of GENERAL MOTORS CORP.
