Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the speaker electrical connector.
  2. Install the speaker (1) to the door. Secure the speaker with 3 rivets (2).
  3. Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR in Doors.

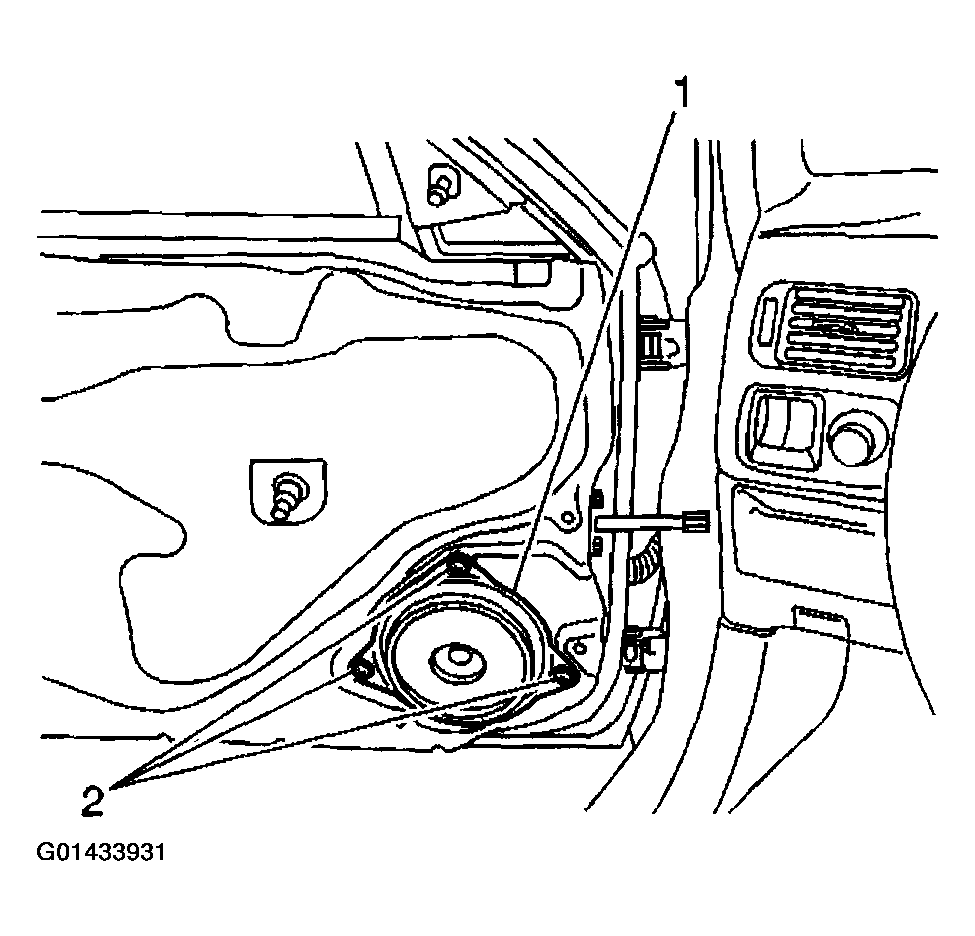

    Fig 1: Installing Front Door Lower Speaker To Vehicle
    G01433931Courtesy of GENERAL MOTORS CORP.
