Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
  2. Disconnect the antenna cable connector (1) from the antenna extension cable front connector (2).
  3. Disconnect the fixed antenna cable connector (5) from the antenna extension cable rear connector (4).
  4. Remove the tape from the plastic retainers.
  5. Remove the antenna extension cable (3).

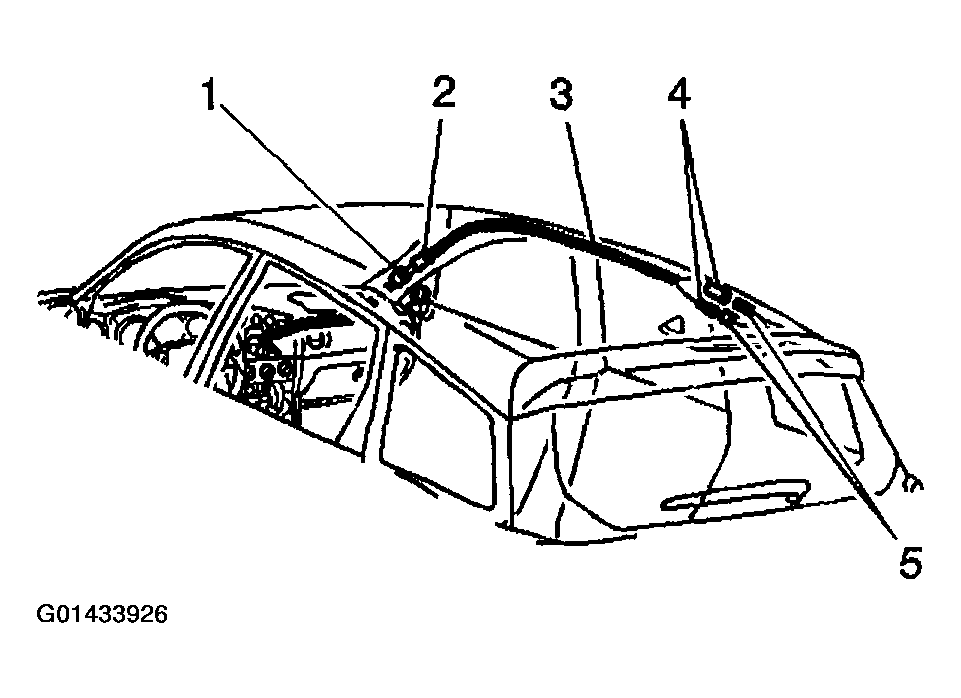

    Fig 1: Removing Antenna Extension Cable
    G01433926Courtesy of GENERAL MOTORS CORP.
