Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the antenna extension cable (3) to the vehicle.
  2. Apply new tape to the extension cable plastic retainers.
  3. Connect the antenna extension cable rear connector (4), to the fixed antenna cable connector (5).
  4. Connect the antenna extension cable front connector (2) to the antenna cable connector (1).
  5. Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.

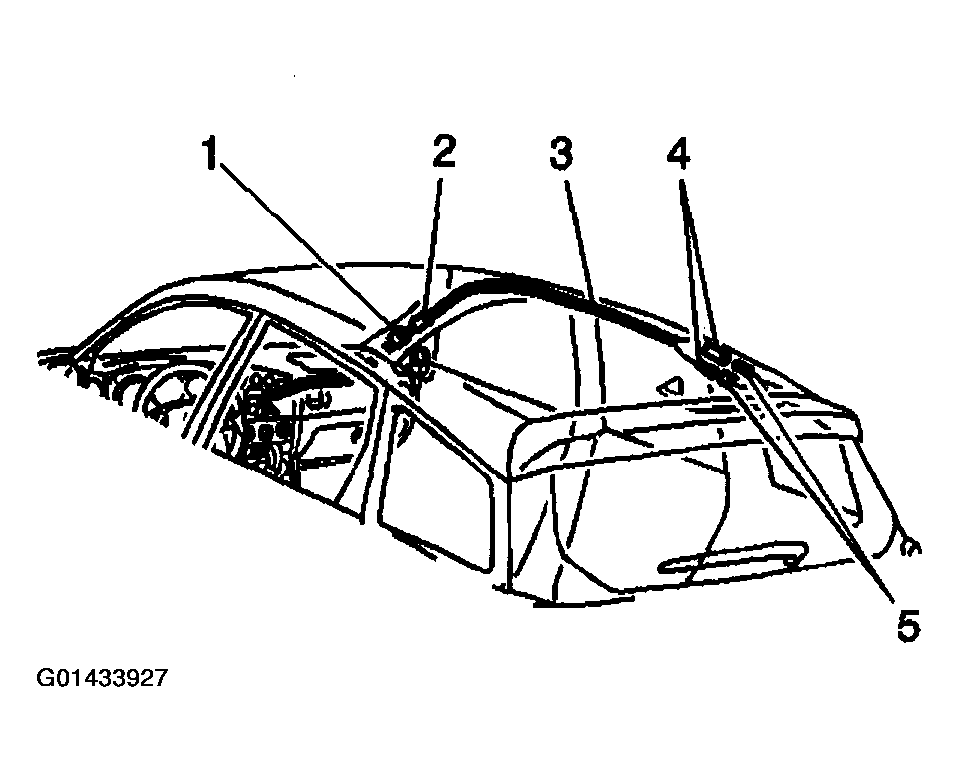

    Fig 1: Installing Antenna Extension Cable
    G01433927Courtesy of GENERAL MOTORS CORP.
