Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper IP panel. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel Gages and Console.
  2. Disconnect the antenna cable connector (2) from the rear extension cable.
  3. Remove the 3 retainers (3) which secure the antenna cable (1).
  4. Remove the antenna cable (1).

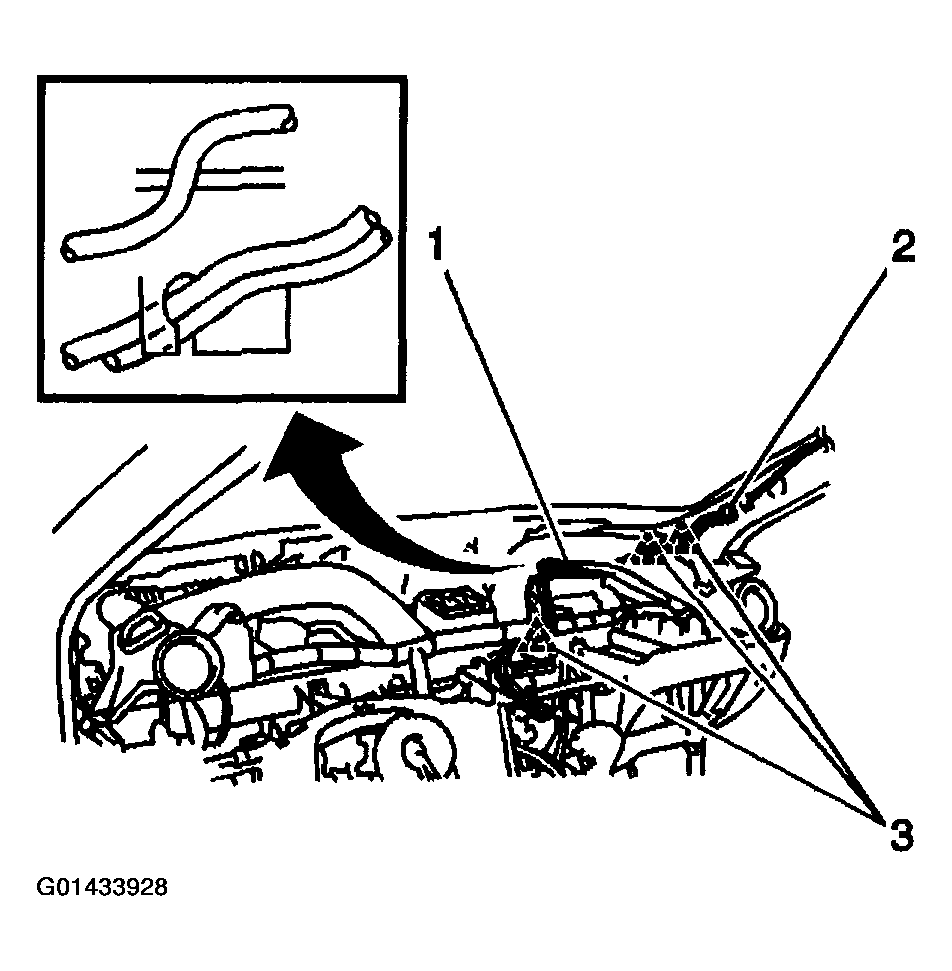

    Fig 1: Removing Antenna Cable
    G01433928Courtesy of GENERAL MOTORS CORP.
