Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the antenna cable (1), by securing it with the 3 retainers (3).
  2. Connect the antenna cable connector (2), to the rear extension cable.
  3. Install the upper IP panel. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel Gages and Console.

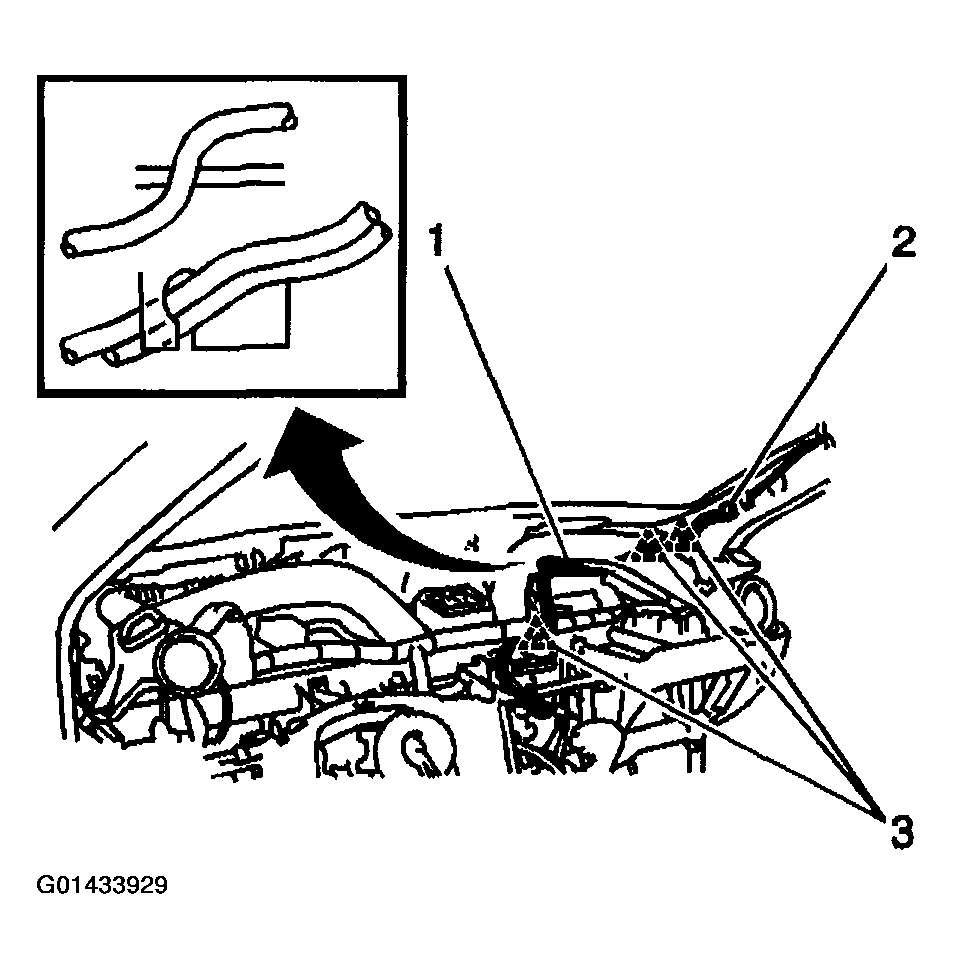

    Fig 1: Installing Antenna Cable
    G01433929Courtesy of GENERAL MOTORS CORP.
