Remote Playback Device Left or Right Channel Inoperative

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

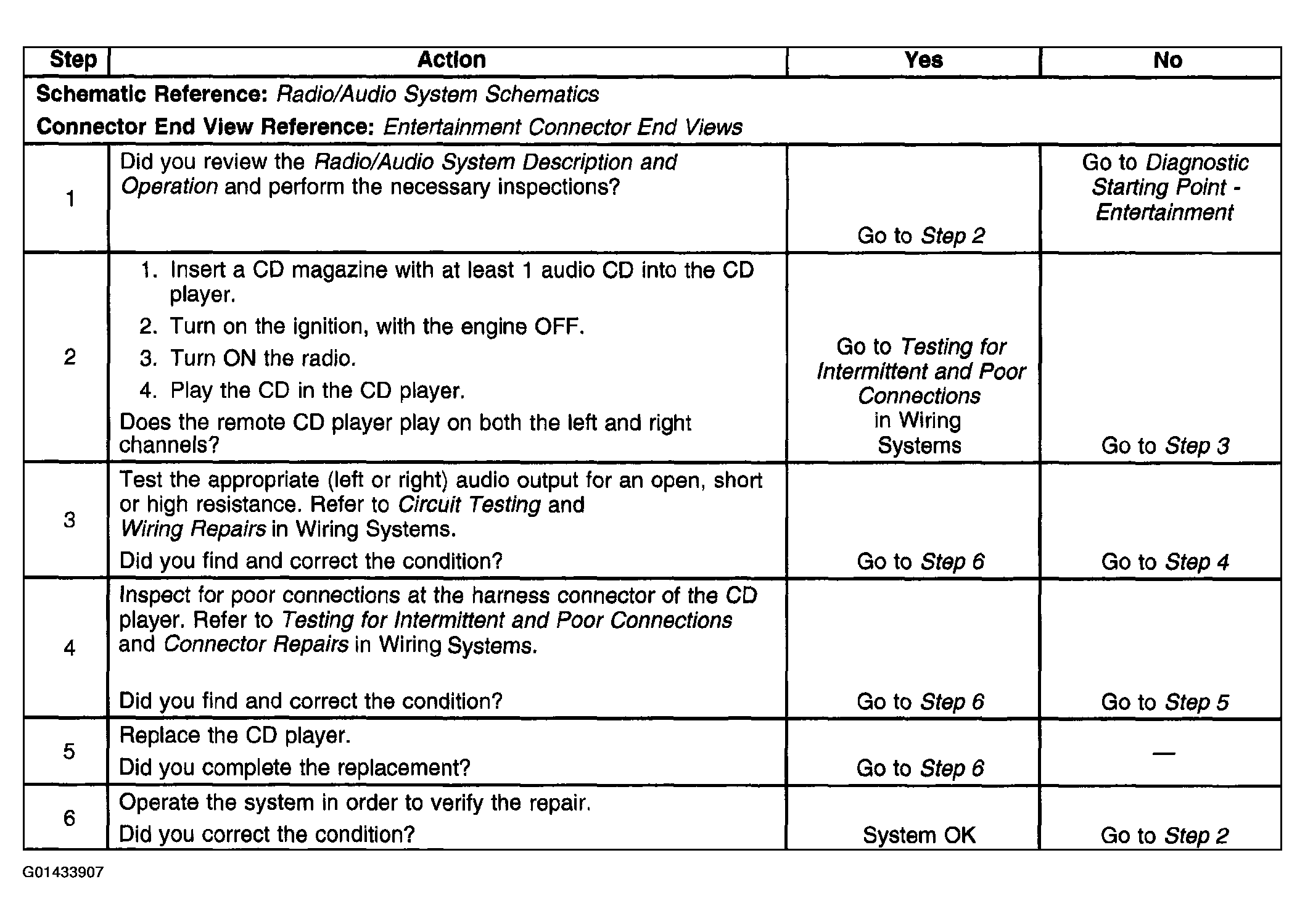

Fig 1: Diagnostic System Check Chart - Remote Playback Device Left Or Right Channel Inoperative
G01433907Courtesy of GENERAL MOTORS CORP.
