Wiper/Washer System Schematics (Front Wiper Motor)
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

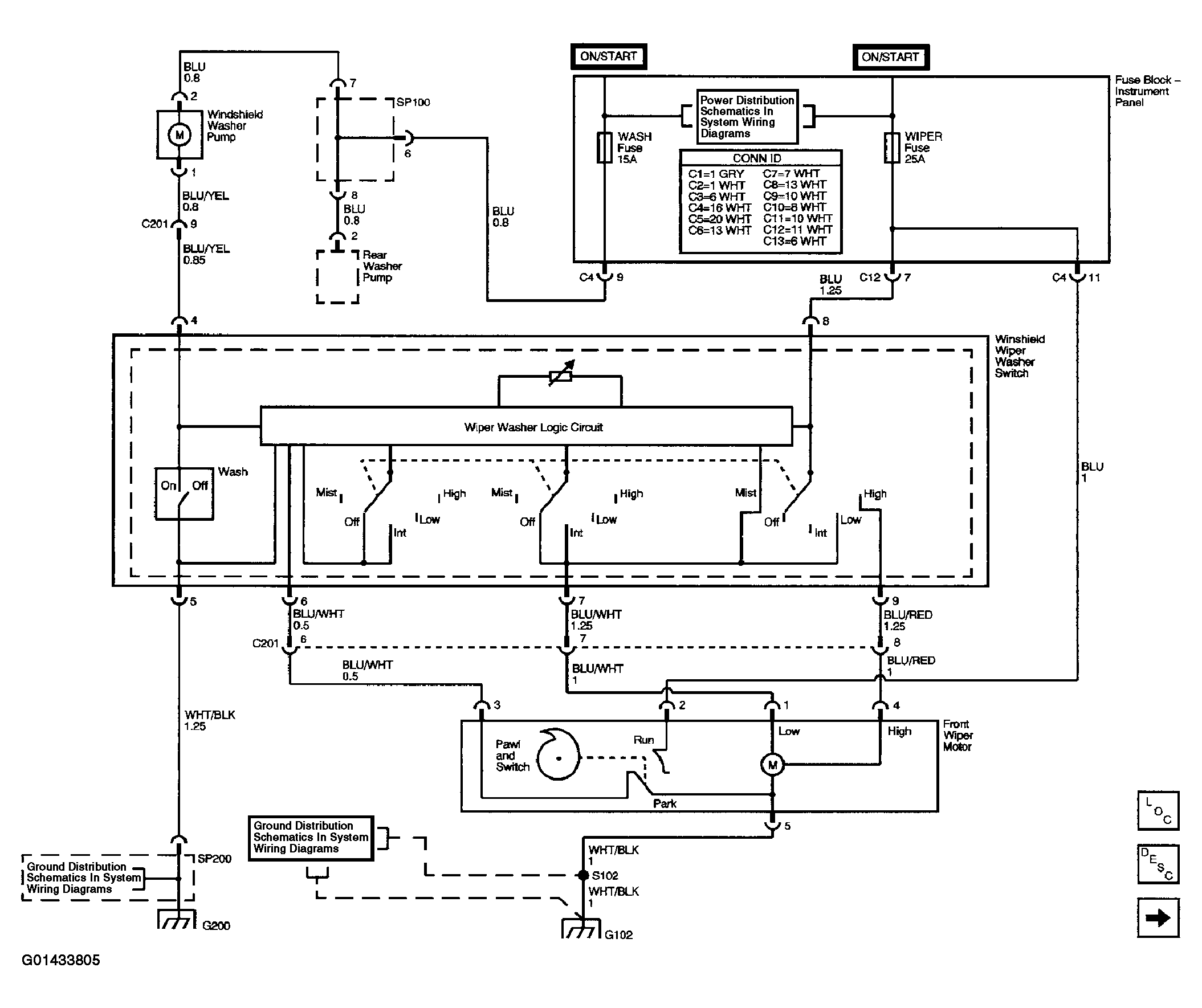

Fig 1: Wiper/Washer System Schematic Diagram (Front Wiper Motor)
Courtesy of GENERAL MOTORS CORP.

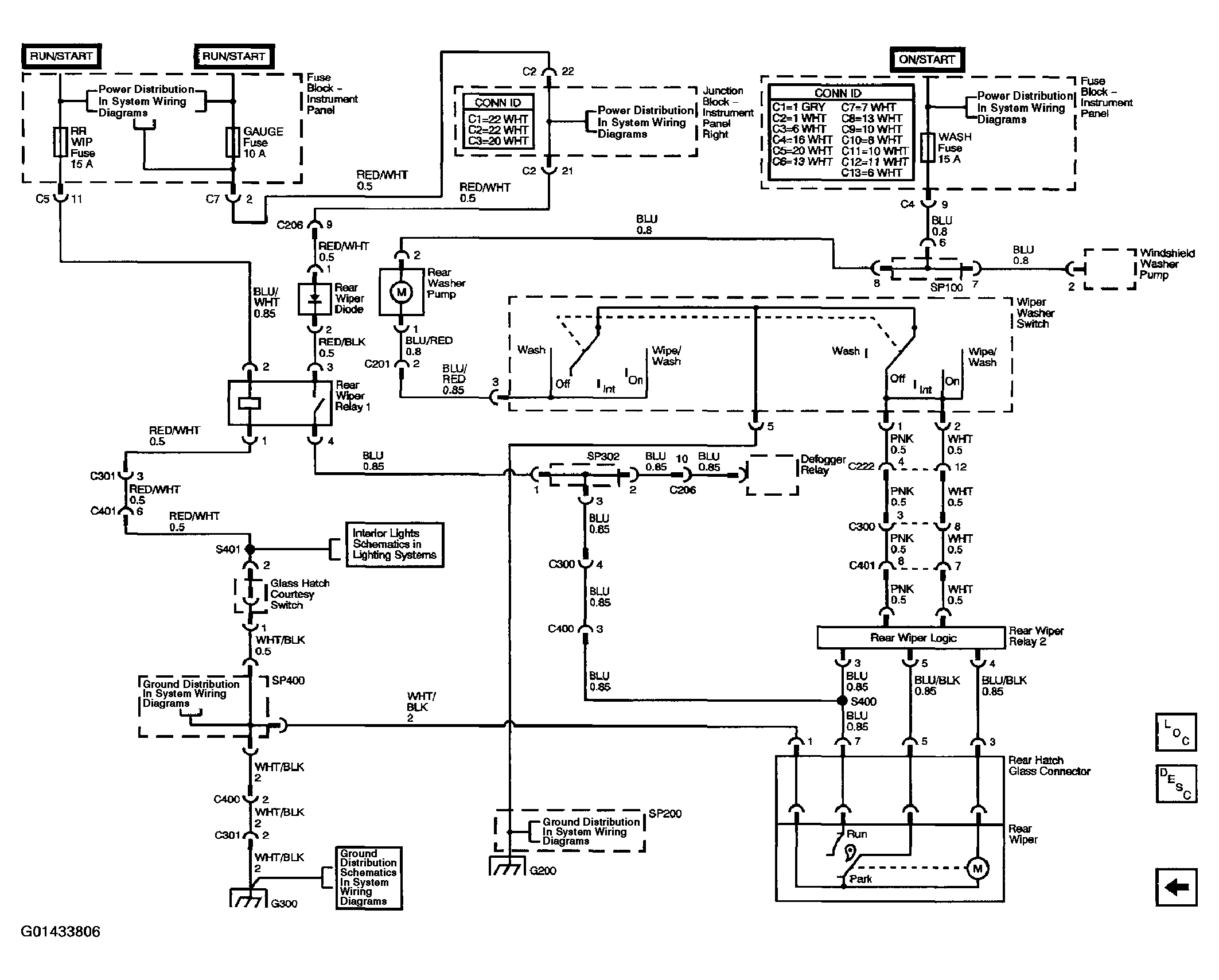

Fig 2: Wiper/Washer System Schematic Diagram (Rear Wiper Motor)
