Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper transmission (1) to the wiper motor (3).
    NOTE: Refer to FASTENER NOTICE .
  2. Install the 2 torx bolts (2) which secure the wiper transmission (1) to the wiper motor (3).

    Tighten

  3. Tighten the windshield wiper transmission bolts to 7.5 N.m (66 lb in).

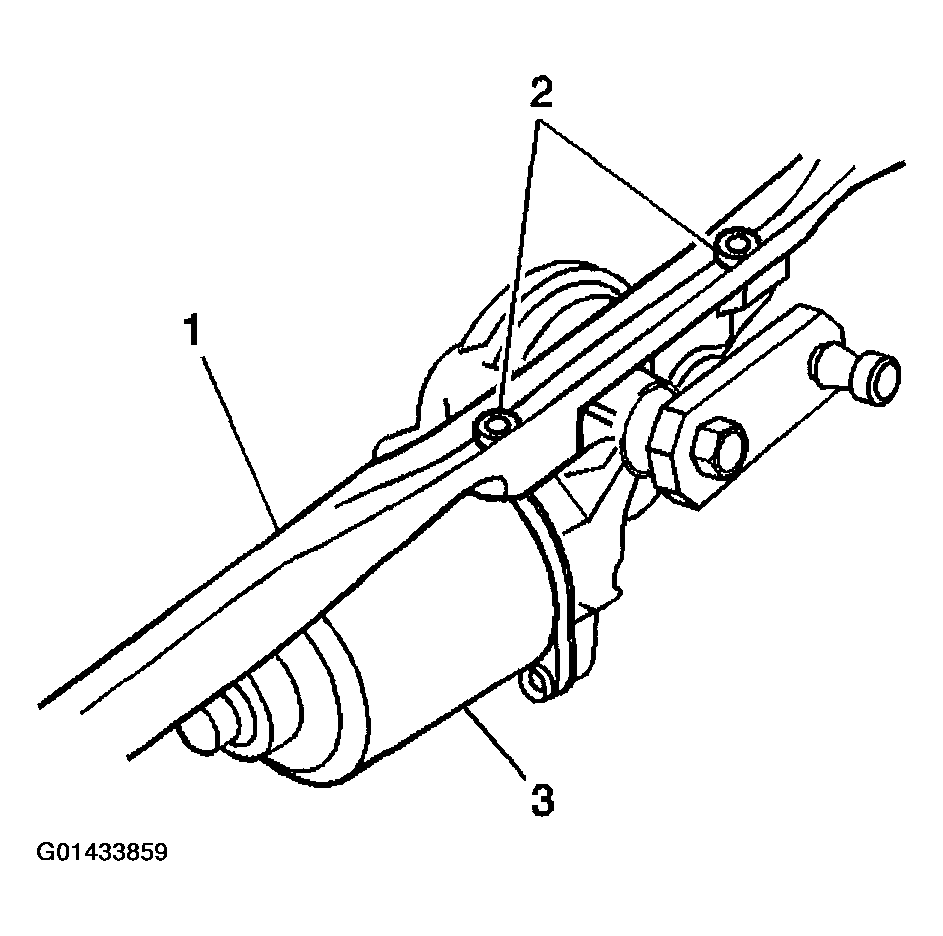

    Fig 1: Installing Torx Bolts
    G01433859Courtesy of GENERAL MOTORS CORP.
  4. Engage the meshing of the lower rod (1) to the crank arm (2).
    Fig 2: Engaging Lower Rod Meshing To Crank Arm
    G01433860Courtesy of GENERAL MOTORS CORP.
  5. Engage the meshing of the upper rod (1) to the crank arm (3).
  6. Install the windshield wiper motor assembly. Refer to WIPER MOTOR REPLACEMENT  in Wipers/Washers.
    Fig 3: Engaging Upper Rod meshing To Crank Arm
    G01433861Courtesy of GENERAL MOTORS CORP.
