Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear wiper shaft cover (1) to the wiper motor assembly (2).
  2. Install the 3 screws (3) to the wiper shaft cover (1).
  3. Position the junction switch (5) to the wiper motor assembly (2) and install the nut (4).
  4. Reconnect the junction switch electrical connector (6).

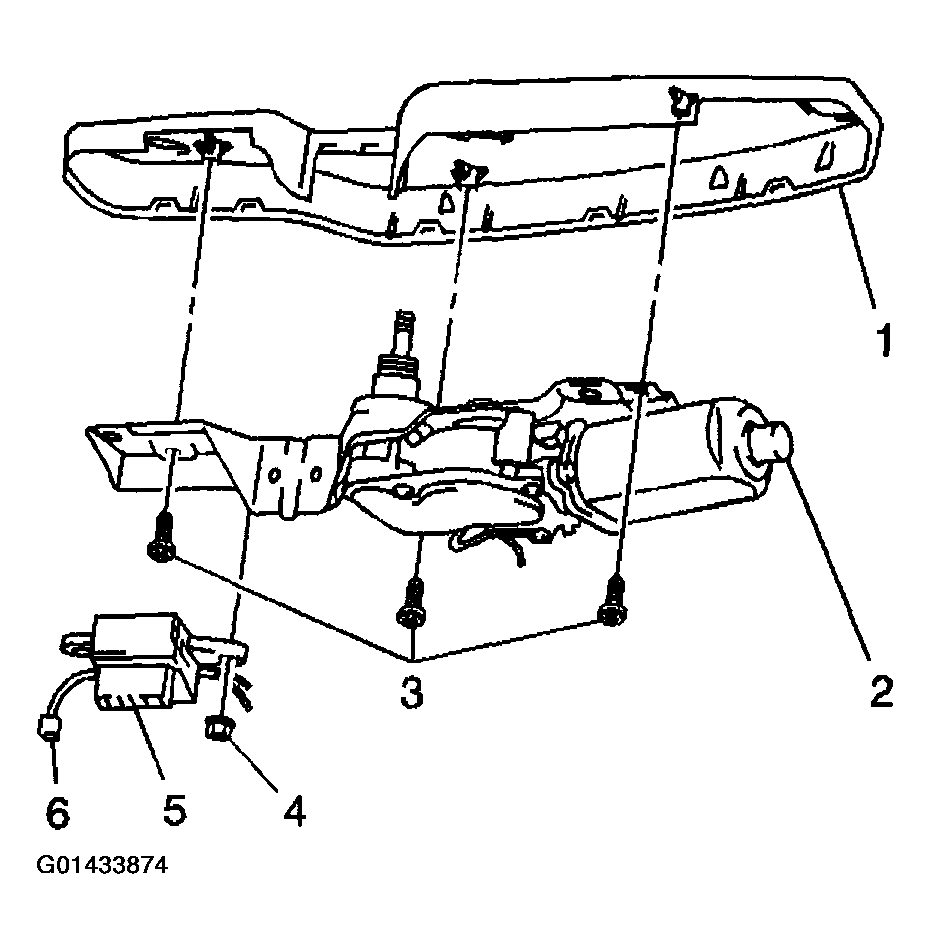

    Fig 1: Installing Rear Wiper Shaft Cover To Wiper Motor Assembly
    G01433874Courtesy of GENERAL MOTORS CORP.
  5. Position the wiper motor assembly (5) to the liftgate glass (8).
    NOTE: Refer to FASTENER NOTICE .
  6. Install the 2 nuts (6) to the wiper motor assembly (5).

    Tighten

  7. Tighten the nuts to 5.5 N.m (49 lb in).
  8. Reconnect the 2 rear defogger electrical connectors (3).
  9. Install the wiper motor cover (7).
  10. Close the liftgate glass (8).
  11. Install the wiper packing (2).
    NOTE: Refer to FASTENER NOTICE .
  12. Install the wiper packing nut (1).

    Tighten

  13. Tighten the nut to 7.0 N.m (62 lb in).
  14. Install the rear wiper arm. Refer to WIPER ARM REPLACEMENT - REAR  .

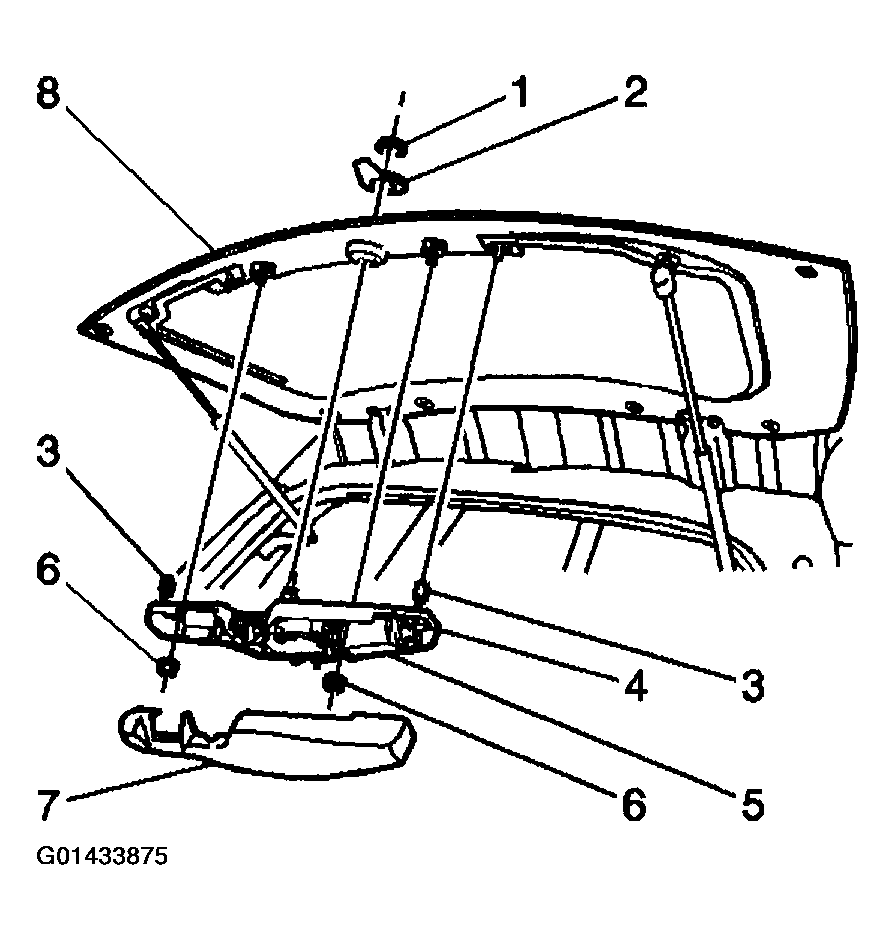

    Fig 2: Installing Rear Wiper Motor To Liftgate Glass
    G01433875Courtesy of GENERAL MOTORS CORP.
