Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use tape or an erasable marker to mark position of wiper blade on the rear window.
  2. Remove the cap from the rear wiper arm.
  3. Remove the rear wiper arm nut.
  4. Using J 39822  , remove the rear wiper arm.
  5. Remove the rear wiper blade from the rear wiper arm. Refer toWIPER ARM BLADE REPLACEMENT - REAR .

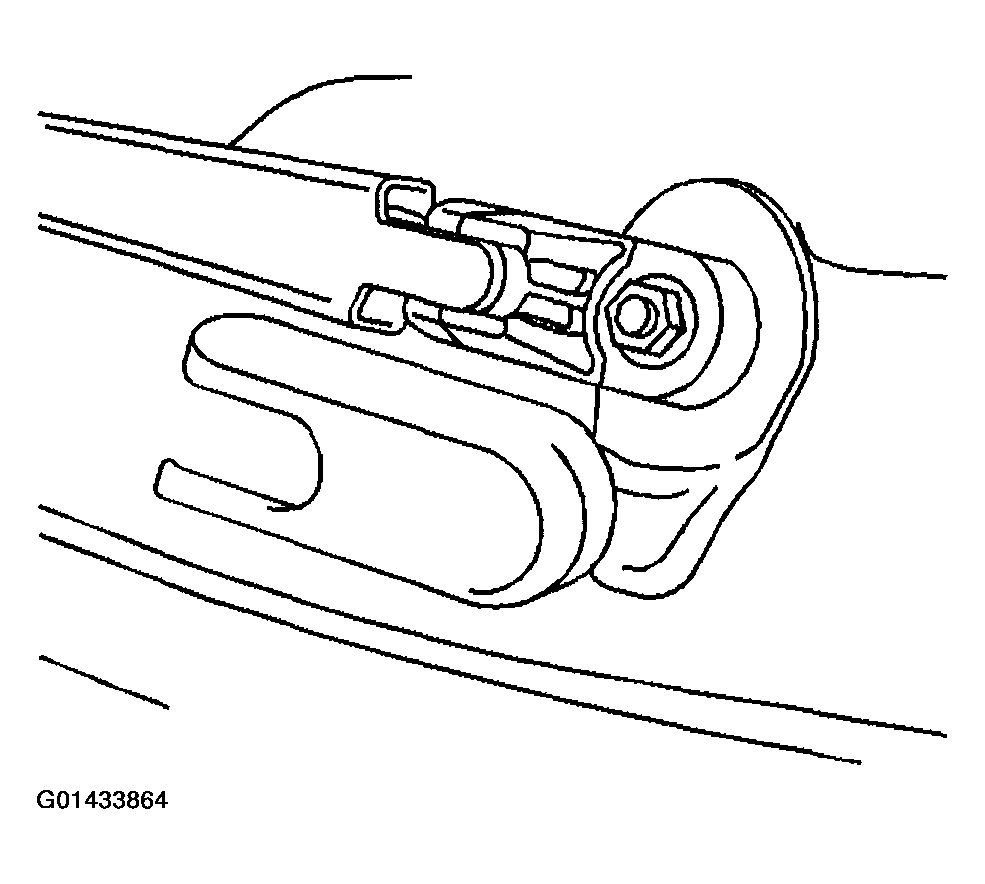

    Fig 1: Removing Rear Wiper Arm
    G01433864Courtesy of GENERAL MOTORS CORP.
