Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the windshield wiper blade over the wiper arm past the hook.
  2. Guide the retaining tab (3) into the hook (1). Slide the blade up until the tab (3) engages.
  3. Lower the windshield wiper arm until the blade contacts the windshield.

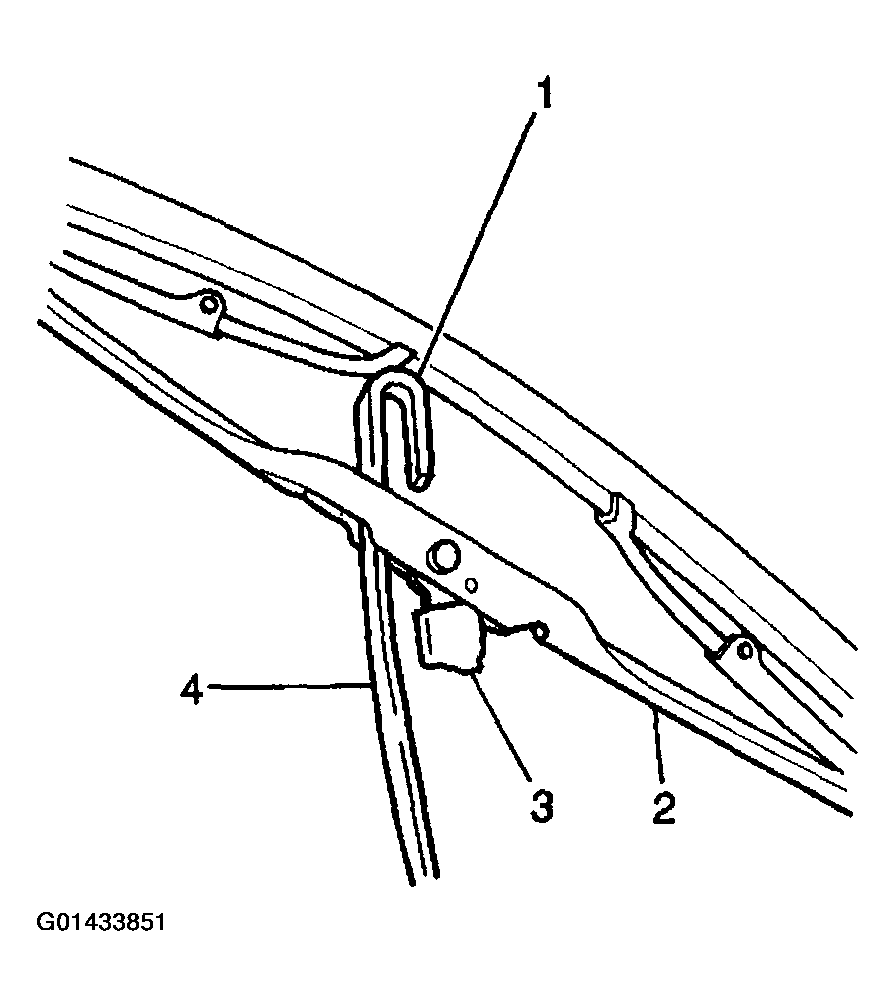

    Fig 1: Installing Wiper Arm Blade To Wiper Arm
    G01433851Courtesy of GENERAL MOTORS CORP.
