Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the windshield washer pumps (1) to the windshield washer solvent container (2).
  2. Install the windshield washer solvent container (2) by inserting the neck through the holes until tabs click.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the 3 bolts to the windshield washer solvent container (2).

    Tighten

  4. Tighten the washer solvent container bolts to 5.5 N.m (49 lb in).
  5. Connect the washer hoses (4) to the washer pumps (3).
  6. Connect the washer pump electrical connectors (1).
  7. Install the right wheel house panel. Refer to WHEELHOUSE PANEL REPLACEMENT in Body Front End.
  8. Install the right fender flare. Refer to FLARE REPLACEMENT - FRONT FENDER in Exterior Trim.
  9. Fill the washer solvent container (2) with washer solvent.

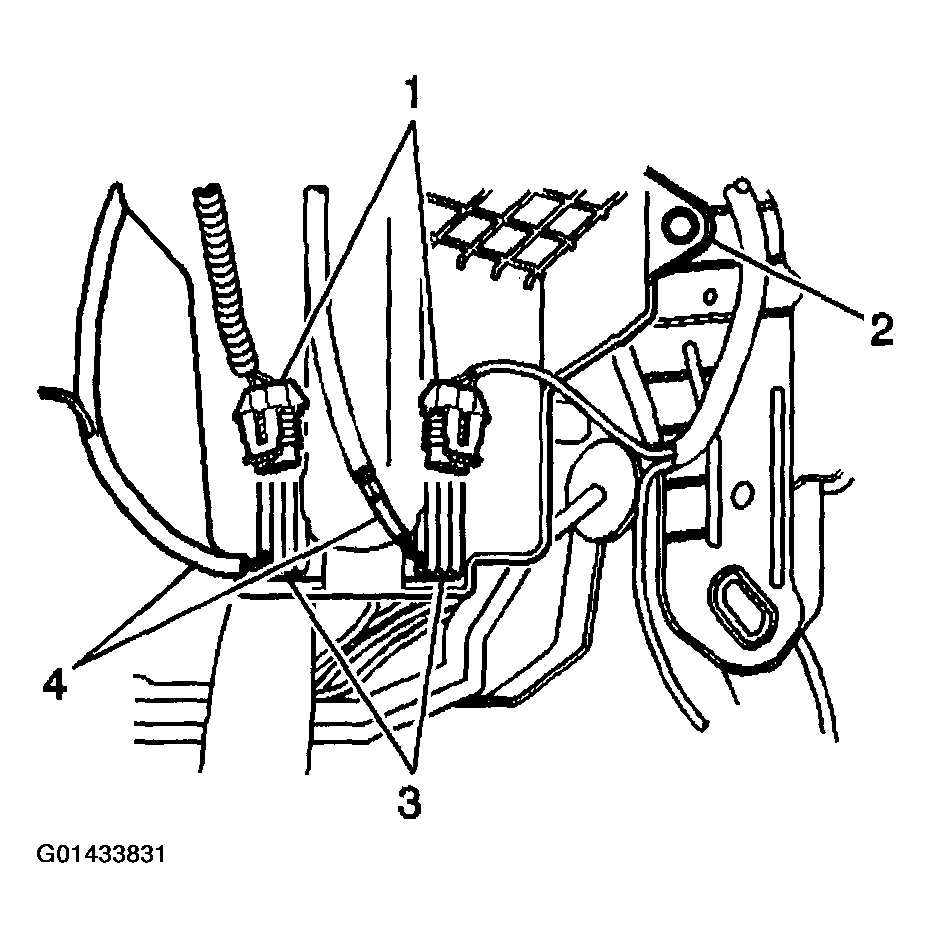

    Fig 1: Installing Washer Solvent Container
    G01433831Courtesy of GENERAL MOTORS CORP.
