Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws and push-in retainers from the right front lower wheel house panel. Refer to WHEELHOUSE PANEL REPLACEMENT in Body Front End.
  2. Drain the washer solvent from the washer solvent container.
  3. Disconnect the front or rear washer pump electrical connector (1).
  4. Disconnect the front or rear washer hose (4) from the front or rear washer pump (3).
  5. Using a small flat-bladed tool, remove the front or rear washer pump (3) from the washer solvent container (2).

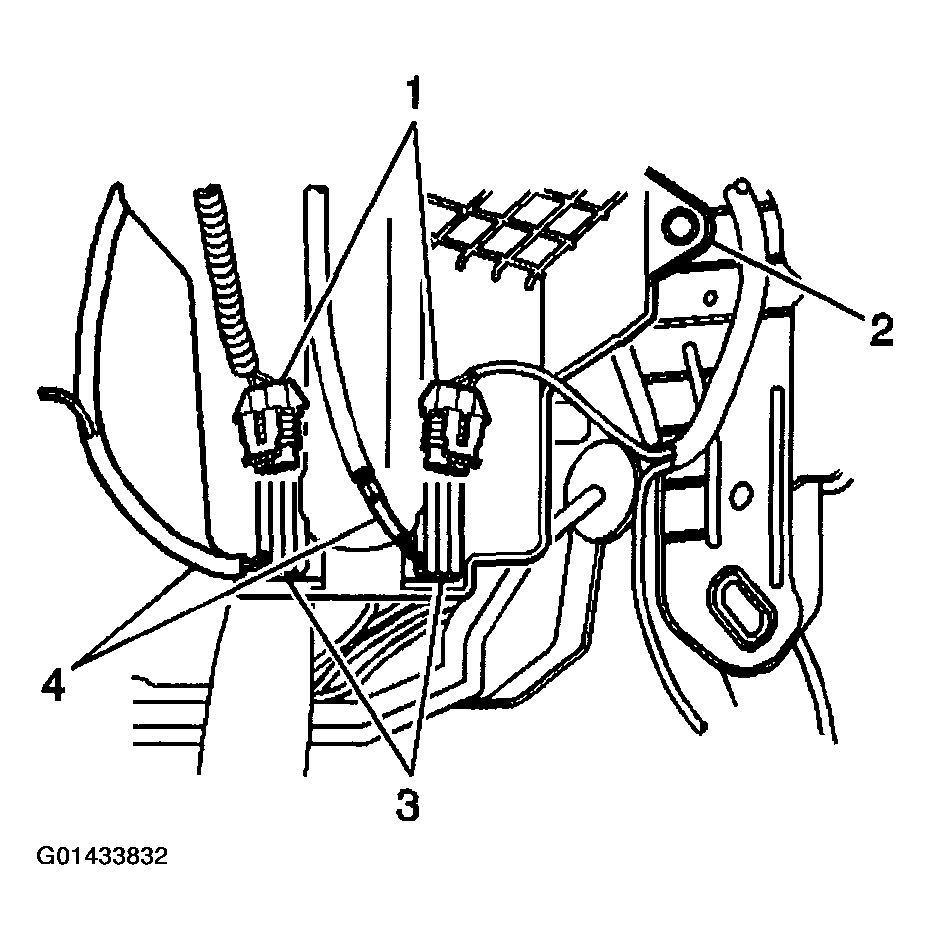

    Fig 1: Removing Washer Pump
    G01433832Courtesy of GENERAL MOTORS CORP.
