Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front or rear washer pump (3) to the washer solvent container (2) pressing in until fully seated.
  2. Connect the front or rear washer hose (4) to the front or rear washer pump (3).
  3. Connect the front or rear washer pump electrical connector (1).
  4. Fill the washer solvent container (2) with washer solvent.
  5. Refasten the right front lower wheel house panel. Refer to WHEELHOUSE PANEL REPLACEMENT in Body Front End.

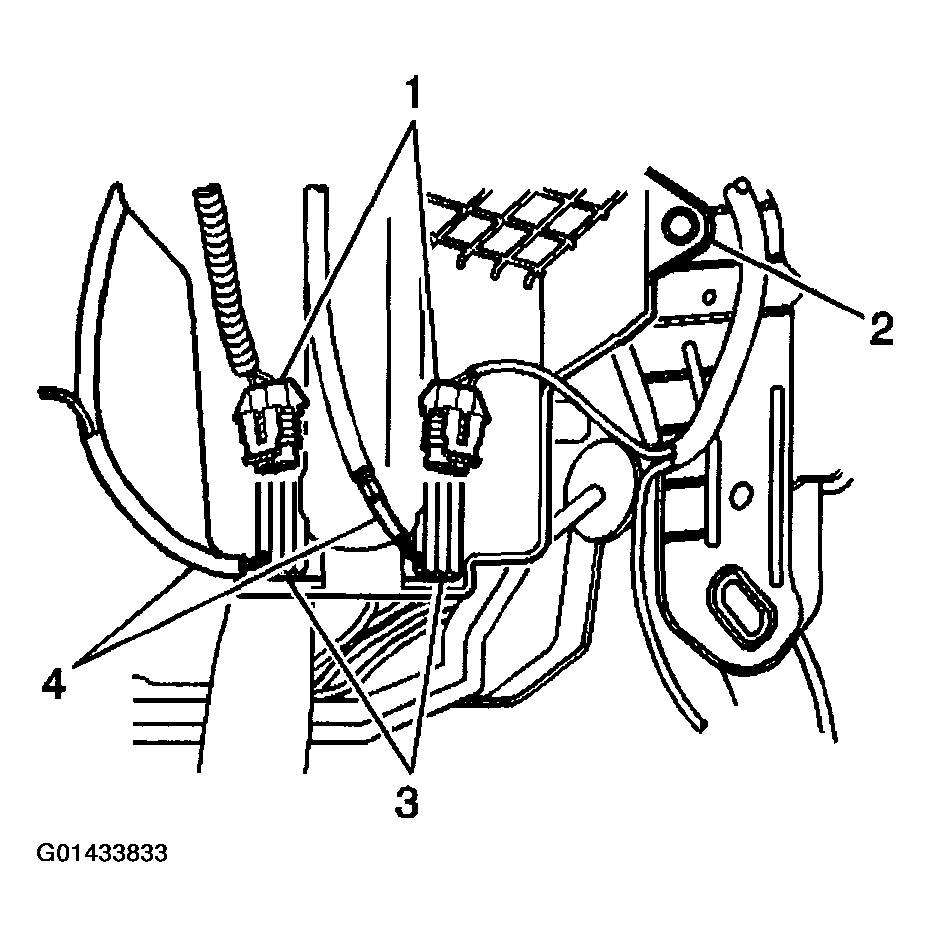

    Fig 1: Installing Washer Pump
    G01433833Courtesy of GENERAL MOTORS CORP.
